Multimedia Expansion Board II (MEB II) User's Guide
The bottom side of the MEB II includes these key features, as shown in
1. Regulated 5V and 3.3V power supply for powering the board through a 9-15V DC
2. PIC32 Starter Kit connector (168-pin Hirose board-to-board connector).
3. 24-bit stereo audio codec (AK4953A).
4. Integrated 802.11bg wireless module (MRF24WG0MA).
5. Low-cost Bluetooth
6. EBI SRAM memory (IS61WV102416BLL).
7. microSD slot.
8. Analog accelerometer (ADXL325).
9. MPLAB

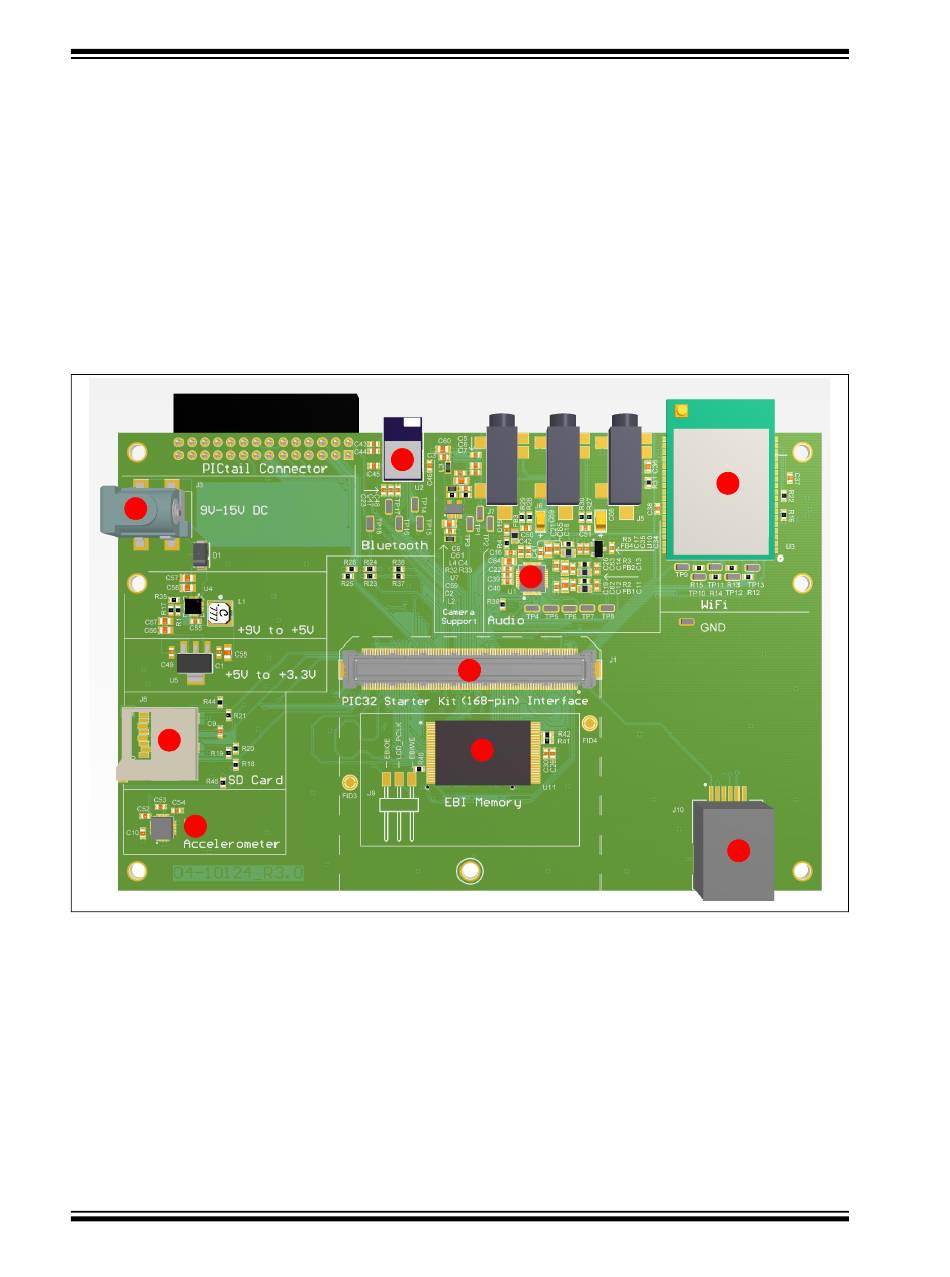

FIGURE 1-3: MULTIMEDIA EXPANSION BOARD II (MEB II) LAYOUT (BOTTOM VIEW)
1
7
8
DS70005148B-page 14
Adapter.
®
HCI transceiver (BTM805).
®
REAL ICE™ In-Circuit Emulator.
5
3
2
6
© 2013-2014 Microchip Technology Inc.
Figure 1-3:
4
9
