2.1.8
The MEB II includes 802.11b/g wireless connectivity through the Microchip
MRF24WG0MA device, as shown in
SPI bus interface to communicate to the wireless module.

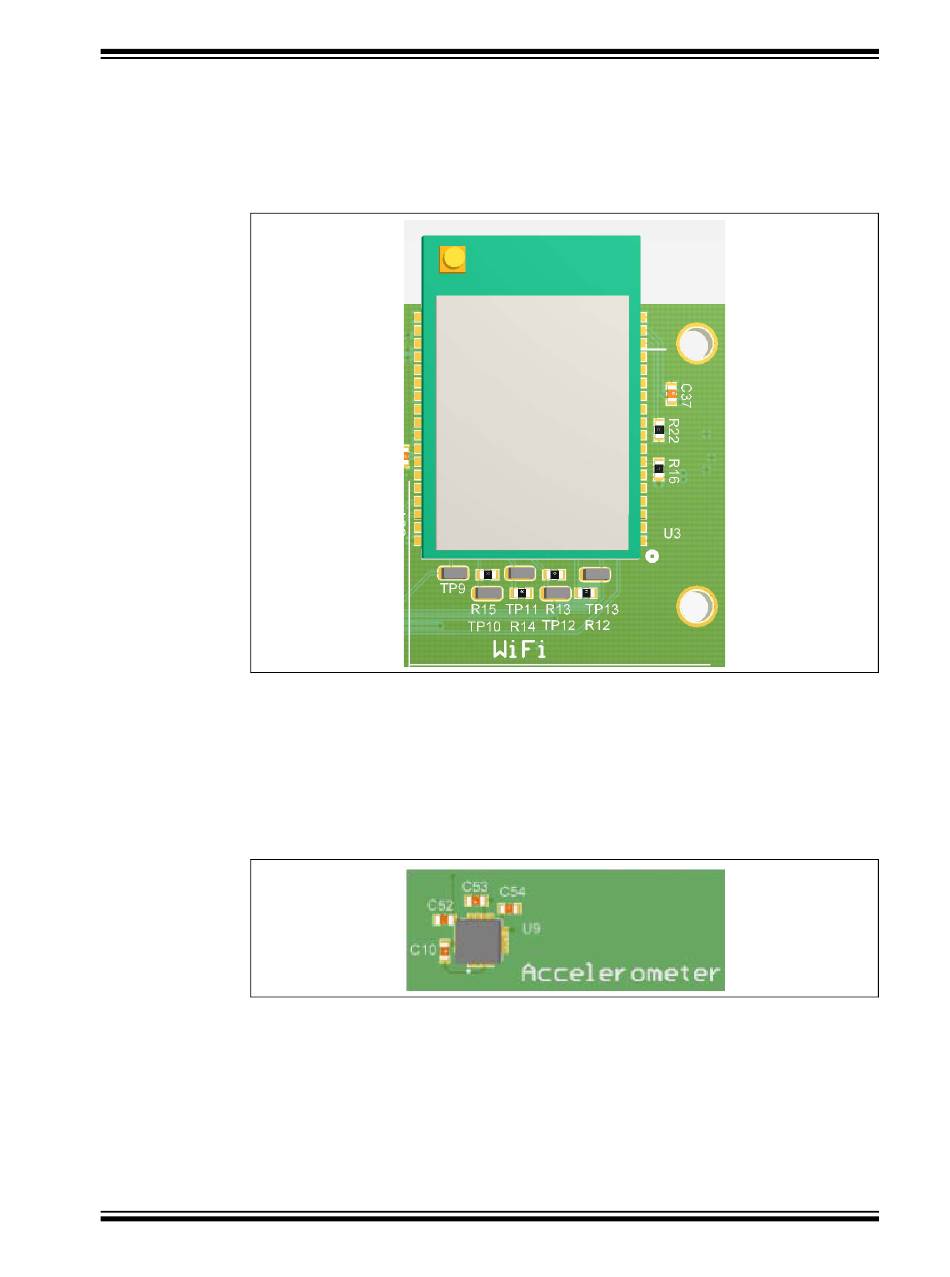

FIGURE 2-8:
2.1.9
The MEB II includes an Analog Devices ADXL325BCPZ analog 3-axis accelerometer,
as shown in
signal conditioned voltage outputs that measures acceleration with a minimum full-
scale range of ±5g. The accelerometer uses three analog channels from the PIC32
microcontroller for the three axes (x, y and z).
FIGURE 2-9:
