Type
Parameter
(XLPE
suggested)
Parameter
DC Output Voltage Range, CCS
DC Output Voltage Range, CHAdeMO
Minimum DC Output Current
Connection Standard
Parameter
MaxiCharger
40
60
80
100
120
160
180
200
MaxiCharger DC
40
60
80

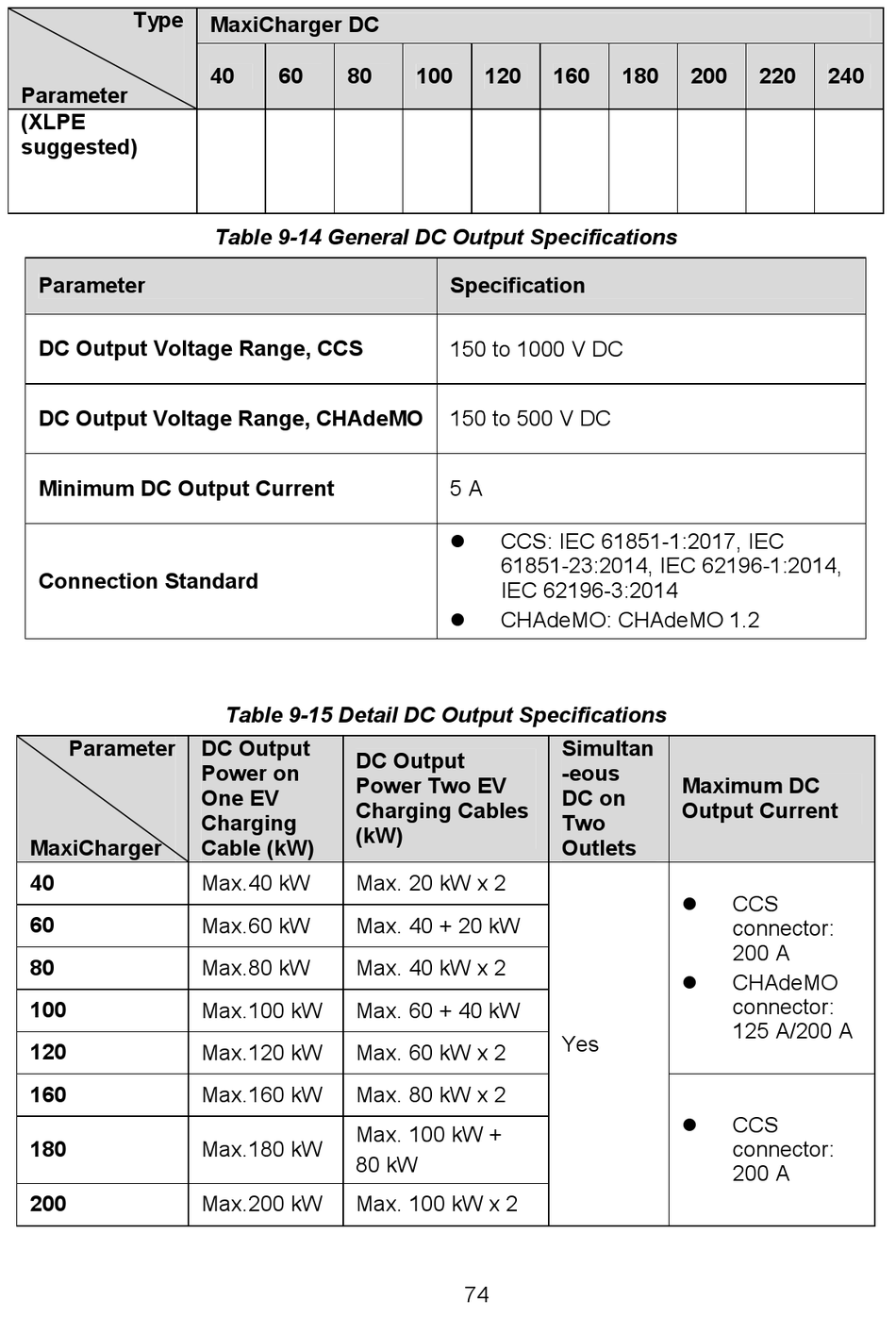

Table 9-14 General DC Output Specifications
Table 9-15 Detail DC Output Specifications
DC Output
DC Output
Power on
Power Two EV
One EV
Charging Cables
Charging
(kW)
Cable (kW)
Max.40 kW
Max. 20 kW x 2
Max.60 kW
Max. 40 + 20 kW
Max.80 kW
Max. 40 kW x 2
Max.100 kW
Max. 60 + 40 kW
Max.120 kW
Max. 60 kW x 2
Max.160 kW
Max. 80 kW x 2
Max. 100 kW +
Max.180 kW
80 kW
Max.200 kW
Max. 100 kW x 2
100
120
160
Specification
150 to 1000 V DC
150 to 500 V DC
5 A
CCS: IEC 61851-1:2017, IEC
61851-23:2014, IEC 62196-1:2014,
IEC 62196-3:2014
CHAdeMO: CHAdeMO 1.2
Simultan
-eous
DC on
Two
Outlets
Yes
74
180
200
220
Maximum DC
Output Current
CCS
connector:
200 A
CHAdeMO
connector:
125 A/200 A
CCS
connector:
200 A
240
