Technical Specifications
General Specifications
Parameter
Compliance and Safety
IP Rating
IK Rating
Short Circuit Current Rating
EMC
Output Voltage
Output Current (for MaxiCharger DC
120)
Output Current (for MaxiCharger DC
240)
EV Charging Cable Length
Certification
Maximum noise level at a distance of
1 m

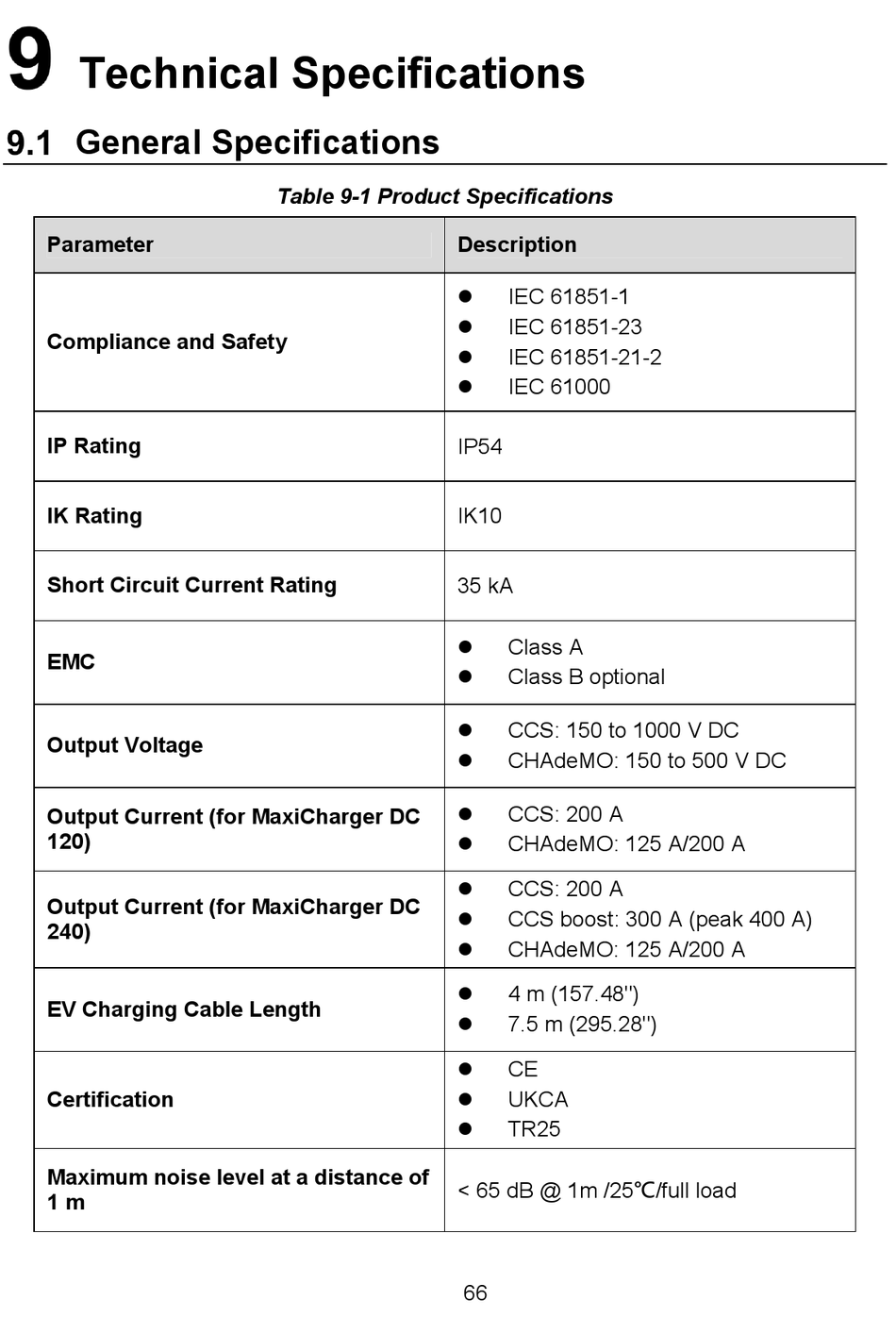

Table 9-1 Product Specifications
Description
IEC 61851-1
IEC 61851-23
IEC 61851-21-2
IEC 61000
IP54
IK10
35 kA
Class A
Class B optional
CCS: 150 to 1000 V DC
CHAdeMO: 150 to 500 V DC
CCS: 200 A
CHAdeMO: 125 A/200 A
CCS: 200 A
CCS boost: 300 A (peak 400 A)
CHAdeMO: 125 A/200 A
4 m (157.48")
7.5 m (295.28")
CE
UKCA
TR25
< 65 dB @ 1m /25℃/full load
66
