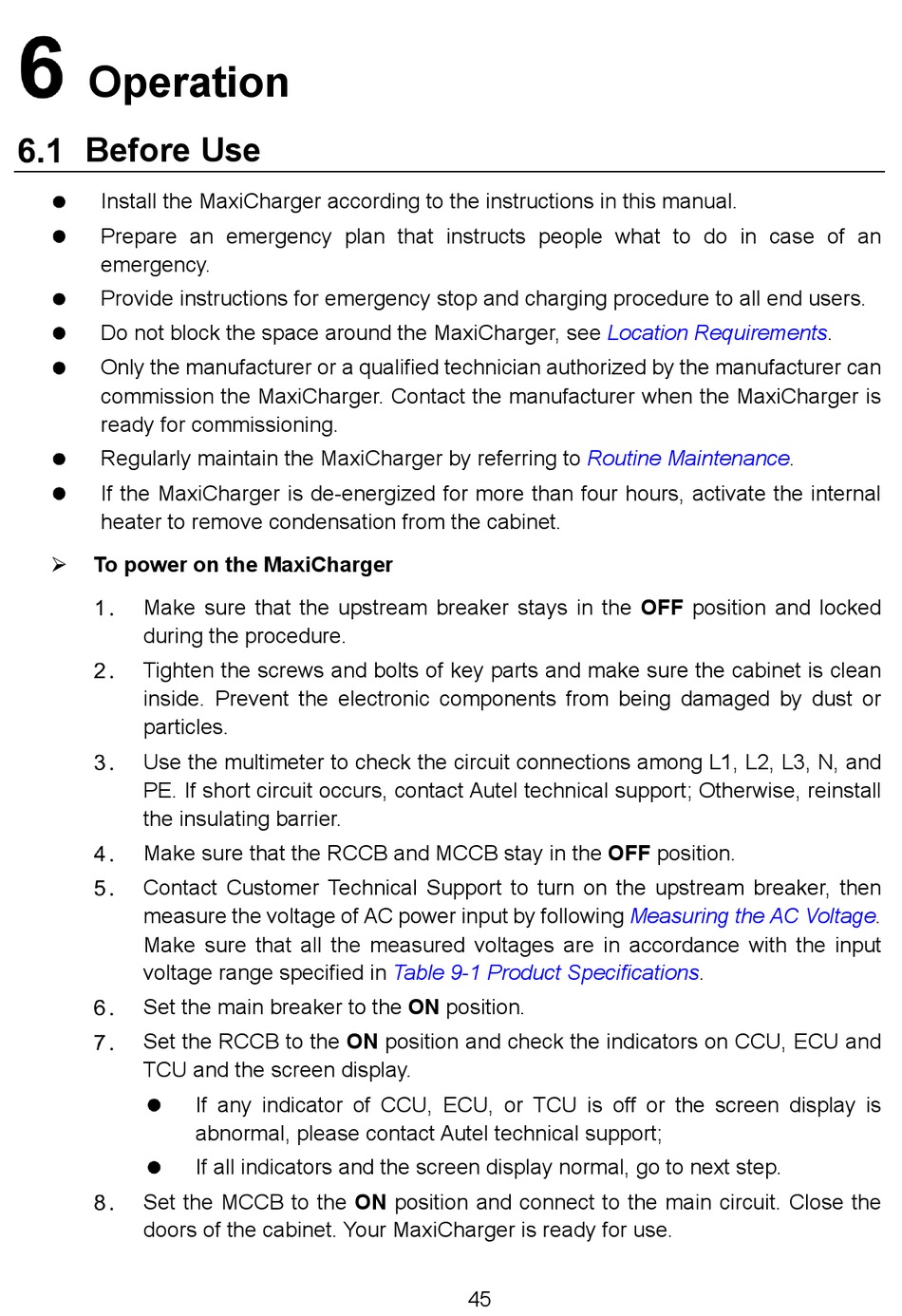

Operation
Before Use
Install the MaxiCharger according to the instructions in this manual.
Prepare an emergency plan that instructs people what to do in case of an
emergency.
Provide instructions for emergency stop and charging procedure to all end users.
Do not block the space around the MaxiCharger, see
Only the manufacturer or a qualified technician authorized by the manufacturer can
commission the MaxiCharger. Contact the manufacturer when the MaxiCharger is
ready for commissioning.
Regularly maintain the MaxiCharger by referring to
If the MaxiCharger is de-energized for more than four hours, activate the internal
heater to remove condensation from the cabinet.
To power on the MaxiCharger
Make sure that the upstream breaker stays in the OFF position and locked
during the procedure.
Tighten the screws and bolts of key parts and make sure the cabinet is clean
inside. Prevent the electronic components from being damaged by dust or
particles.
Use the multimeter to check the circuit connections among L1, L2, L3, N, and
PE. If short circuit occurs, contact Autel technical support; Otherwise, reinstall
the insulating barrier.
Make sure that the RCCB and MCCB stay in the OFF position.
Contact Customer Technical Support to turn on the upstream breaker, then
measure the voltage of AC power input by following
Make sure that all the measured voltages are in accordance with the input
voltage range specified in
Set the main breaker to the ON position.
Set the RCCB to the ON position and check the indicators on CCU, ECU and
TCU and the screen display.
If any indicator of CCU, ECU, or TCU is off or the screen display is
abnormal, please contact Autel technical support;
If all indicators and the screen display normal, go to next step.
Set the MCCB to the ON position and connect to the main circuit. Close the
doors of the cabinet. Your MaxiCharger is ready for use.
Table 9-1 Product
45
Location
Requirements.
Routine
Maintenance.
Measuring the AC
Specifications.
Voltage.
