A U T O M O T I V E I N T E L L I G E N C E
A U T O M O T I V E I N T E L L I G E N C E

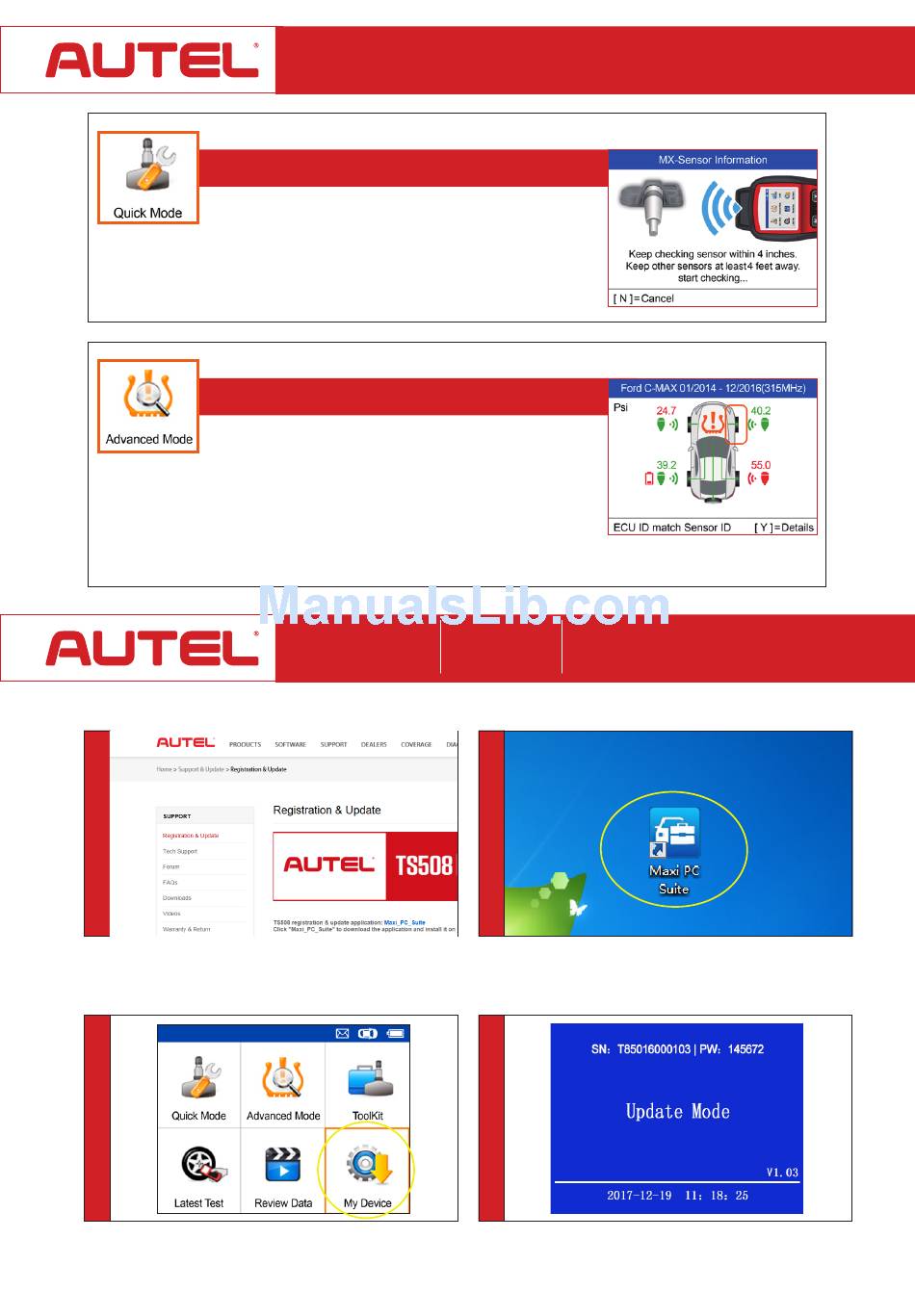

Please Note: Updates are performed via a computer with Internet access.
1
• Go to www.maxitpms.com. Click on Support and select
Registration & Update. Click "Maxi PC Suite" to download the
application;
3
• Use the USB cable to connect the TS508 to the computer.
Select My Device on the tool. Press Y button.

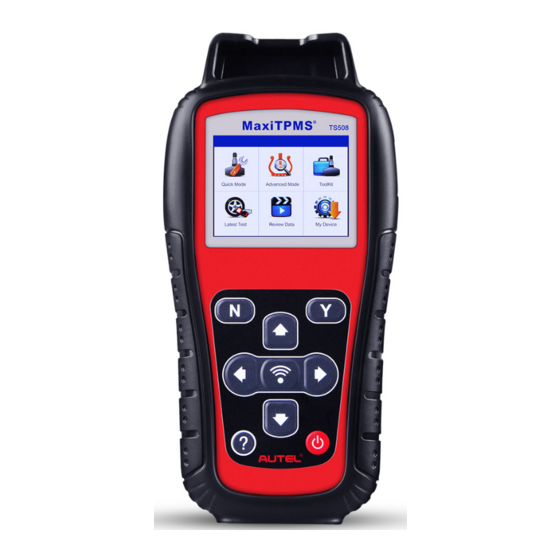

TS508 QuickStart Guide

BASIC FUNCTIONS

EASY & FAST
• Activate All Known TPMS Sensors
• Read Sensor ID, Temperature, Pressure
• Read Sensor Battery Condition
• On-Tool OE Sensor Information
• Program MX-Sensor With 3 Programming Options
• Batch Program 1-16 MX-Sensors
COMPLETE FUNCTIONS
POWERFUL
• Same TPMS Features as Quick Mode
• TPMS Status Screen - View System Faults
• Read & Clear TPMS DTCs
• On-Tool DTCs Description
• Program MX-Sensors by Copying ECU Sensor IDs
• On-Tool Relearn Procedure Guide
• Widest Vehicle Coverage For OBD Relearn
• Tire Pressure Placard Value Reset
TS508
Registration
Remember to check monthly
& Update
for latest software updates.
2
• Unzip and Install Maxi PC Suite. Once installed, the Maxi PC
Suite shortcut displays on the desktop. Double-click on the Maxi-
PC Suite icon and the application will launch.
4
• Select Update. Press Y button to place the tool in Update Mode.
