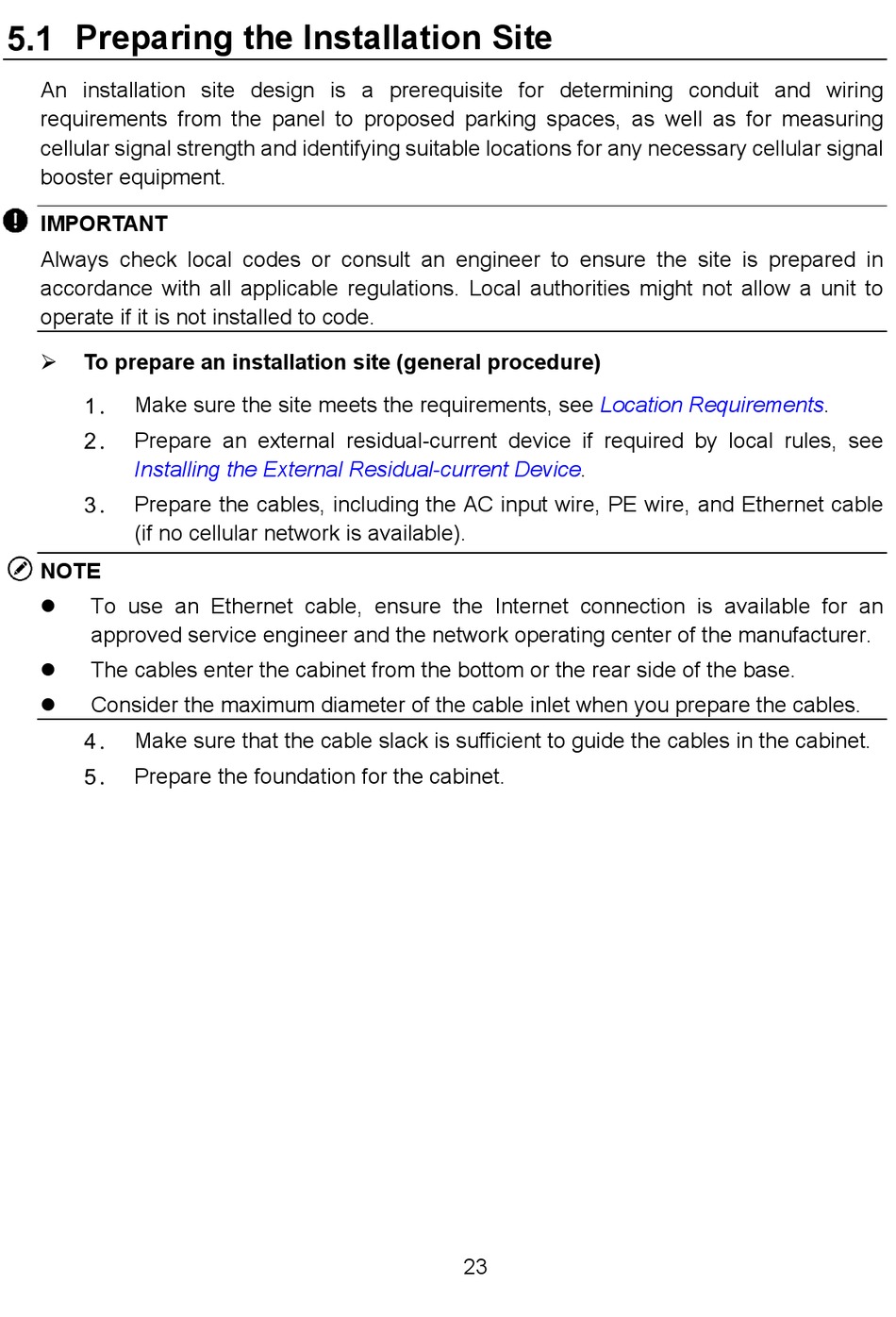

Preparing the Installation Site
An installation site design is a prerequisite for determining conduit and wiring
requirements from the panel to proposed parking spaces, as well as for measuring
cellular signal strength and identifying suitable locations for any necessary cellular signal
booster equipment.
IMPORTANT
Always check local codes or consult an engineer to ensure the site is prepared in
accordance with all applicable regulations. Local authorities might not allow a unit to
operate if it is not installed to code.
To prepare an installation site (general procedure)
Make sure the site meets the requirements, see
Prepare an external residual-current device if required by local rules, see
Installing the External Residual-current
Prepare the cables, including the AC input wire, PE wire, and Ethernet cable
(if no cellular network is available).
NOTE
To use an Ethernet cable, ensure the Internet connection is available for an
approved service engineer and the network operating center of the manufacturer.
The cables enter the cabinet from the bottom or the rear side of the base.
Consider the maximum diameter of the cable inlet when you prepare the cables.
Make sure that the cable slack is sufficient to guide the cables in the cabinet.
Prepare the foundation for the cabinet.
Location
Device.
23
Requirements.
