Power On - RJS Inspector 5000 Operator's Manual

Operator's Guide
To jump the cursor to the bottom of the screen, press and
hold the Print button and then press the Down Arrow
button
To jump the cursor to the top of the screen, press and
hold the Print button and then press the Up Arrow button

Power On

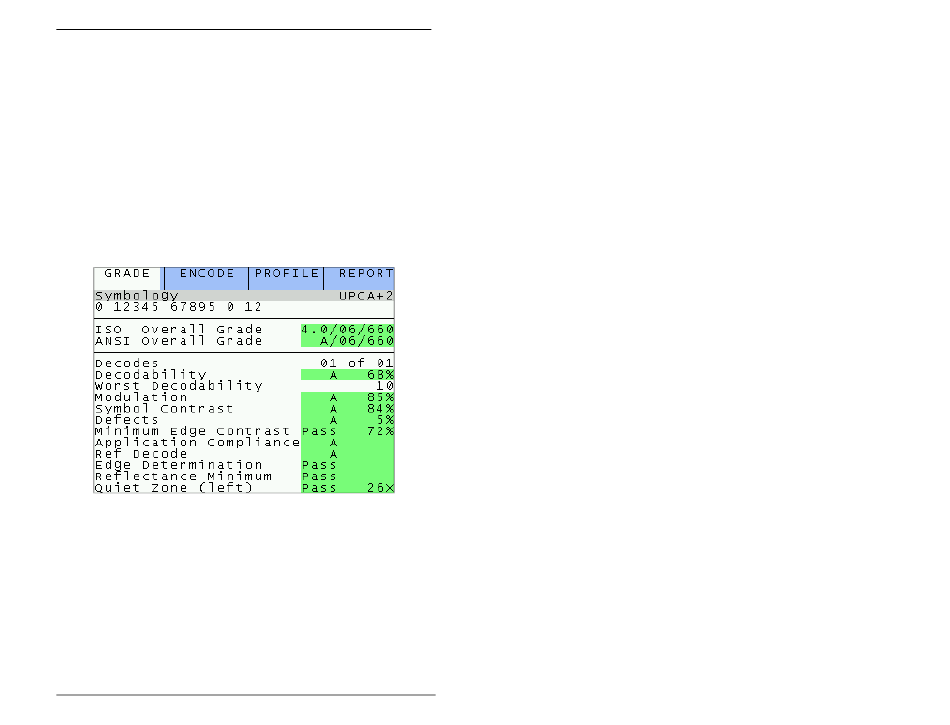

When the Inspector 5000 is turned On, the GRADE
(grading) screen will display the last bar code inspected:
In addition to GRADE, the other screens are ENCODE,
PROFILE, and REPORT.
Note: A bar code can be scanned at any time except:
1. When the unit is printing
2. Setup screen is open
3. Profile screen is open
4. When a pop-up window is displayed
5. During calibration
11
003-4500
Inspector 5000™ Auto Optic
RJS, Minneapolis, MN
