Inspector 5000™ Auto Optic

6.4 Multiple Scan Averaging Results

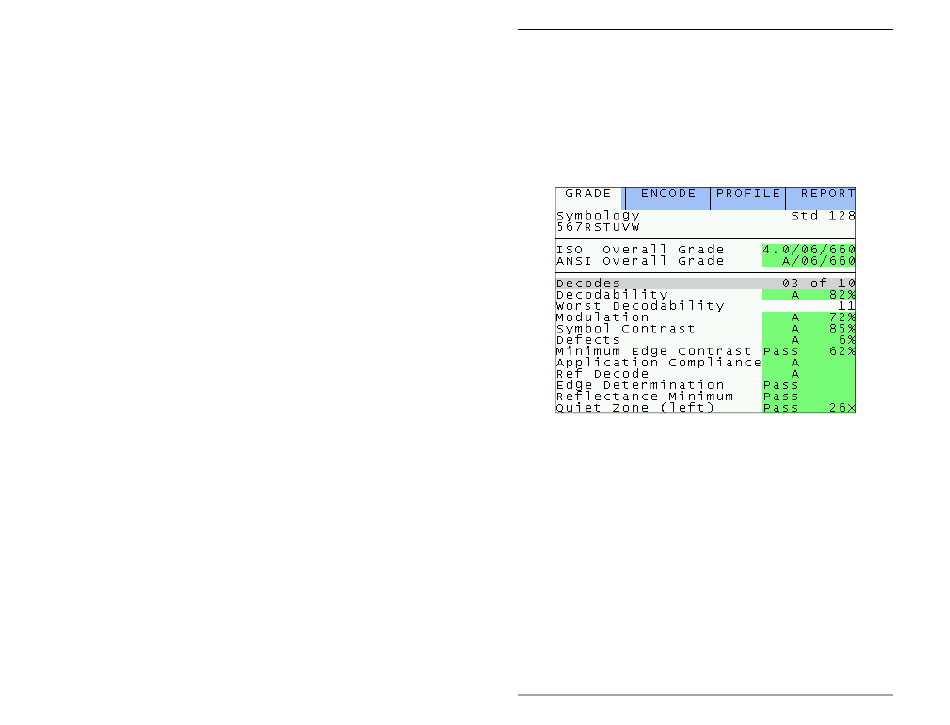

Inspector 5000 Display, when set to multiple scan
analysis, will display the following line below the ANSI
Overall Grade (highlighted below) showing how many
scans have been captured and the total scans to be
captured before the Overall Scan Grade is saved to the
database:
After the final scan is inspected, the Inspector 5000 will
respond with two chirps (or beep sounds). The first is for
the final scan and the second is for the overall average
bar code scan grade.
Note:
See 7.0 Grade Analysis Screen section for details
the inspection tests and results
