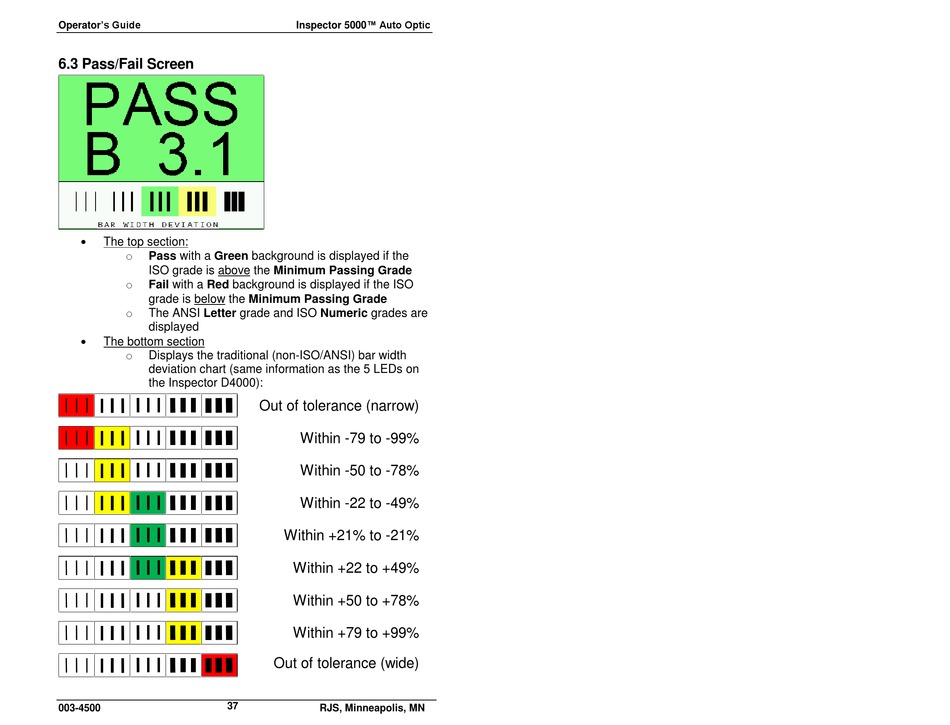

6.3 Pass/Fail Screen

The top section:
Pass with a Green background is displayed if the
o
ISO grade is above the Minimum Passing Grade
Fail with a Red background is displayed if the ISO
o
grade is below the Minimum Passing Grade
The ANSI Letter grade and ISO Numeric grades are
o
displayed
The bottom section
Displays the traditional (non-ISO/ANSI) bar width
o
deviation chart (same information as the 5 LEDs on
the Inspector D4000):
37
003-4500
Inspector 5000™ Auto Optic
Out of tolerance (narrow)
Within -79 to -99%
Within -50 to -78%
Within -22 to -49%
Within +21% to -21%
Within +22 to +49%
Within +50 to +78%
Within +79 to +99%
Out of tolerance (wide)
