Operator's Guide Inspector 5000™ Auto Optic
Place the Auto Optic on the black section of the calibration
plaque with the inspection hole in the bottom of the

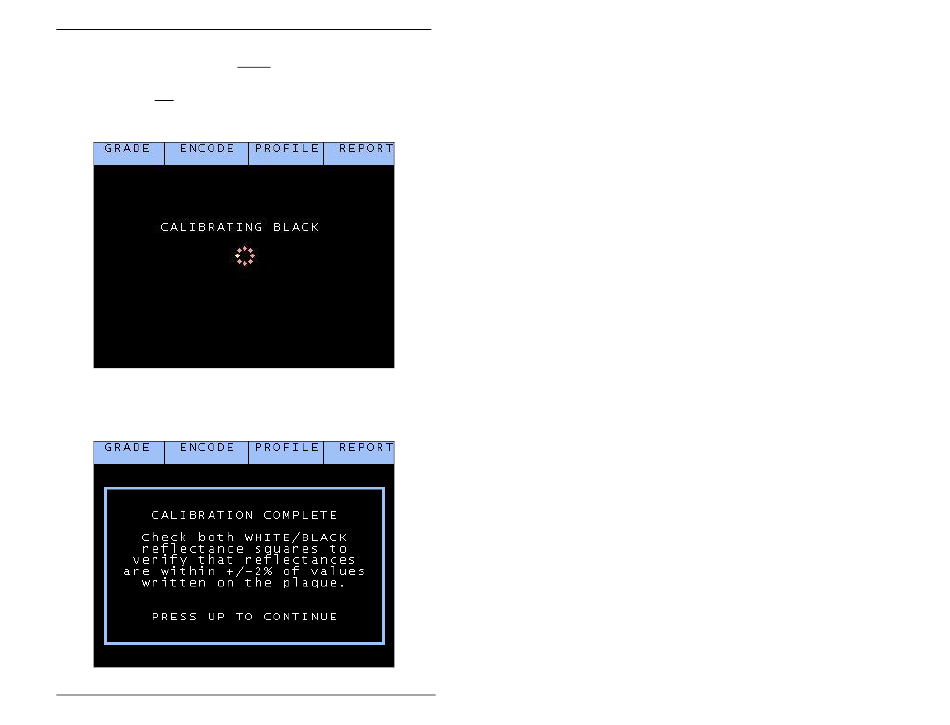

Plexiglas plate flat against the surface. Press Select
button and hold auto-optic scanner head still while this
screen is displayed:
When both the light and dark reflectance values have
been calibrated you hear a "chirp" sound and the following
screen will display:
17
