Inspector 5000™ Auto Optic

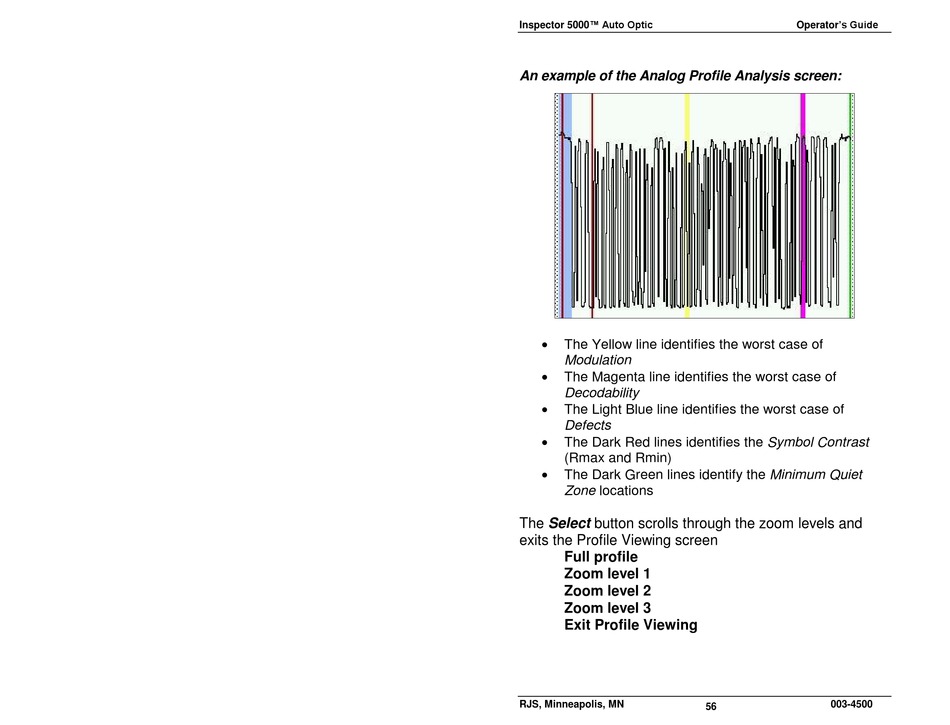

An example of the Analog Profile Analysis screen:

The Yellow line identifies the worst case of
Modulation
The Magenta line identifies the worst case of
Decodability
The Light Blue line identifies the worst case of
Defects
The Dark Red lines identifies the Symbol Contrast
(Rmax and Rmin)
The Dark Green lines identify the Minimum Quiet
Zone locations
The Select button scrolls through the zoom levels and
exits the Profile Viewing screen
Full profile
Zoom level 1
Zoom level 2
Zoom level 3
Exit Profile Viewing
RJS, Minneapolis, MN
Operator's Guide
003-4500
56
