Operator's Guide Inspector 5000™ Auto Optic
The next selection is Laser Comparison Mode:
Choices are Off, New, or On. When New is selected, the
next bar code scanned will be recorded as the "master"
bar code. Then any future bar codes scanned where the
encoded data does not match the saved Master bar code
will result in an error sound and the results will not be
displayed on the display. Once a "Master" bar code is
saved, the comparison mode can be turned On or Off.

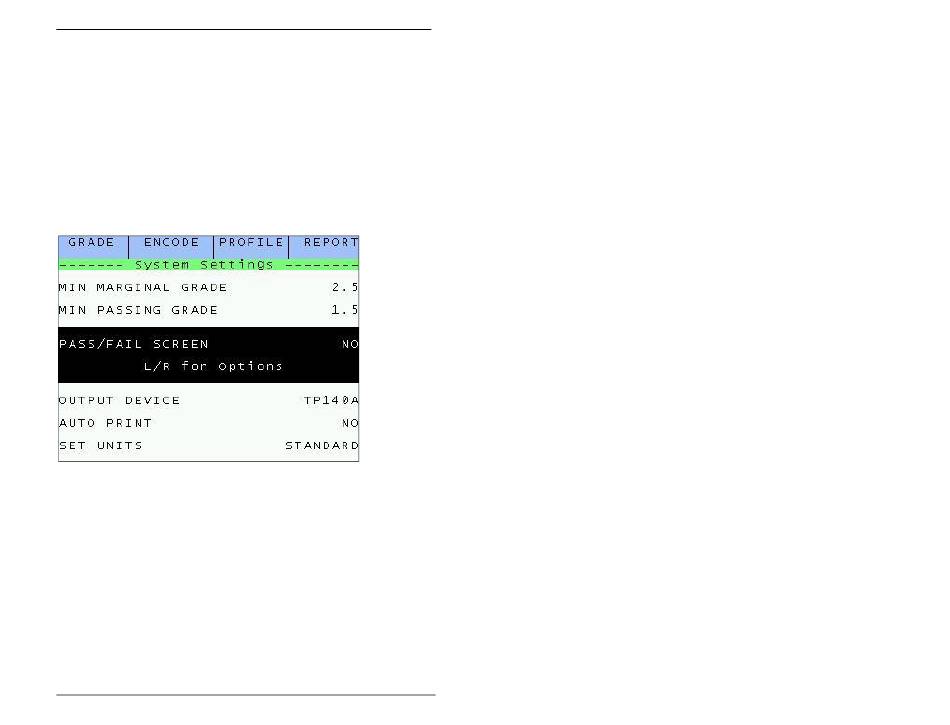

The System Settings page of the Setup screen:

System Settings

The next selection is Minimum Marginal Grade:
Select one of the threshold numeric grades, 0.0 - 4.0.
This value or above will be Good "green" and below this
value (but above the Minimum Passing Grade) will be
Marginal "yellow"
See Appendix A for an explanation of ISO/ANSI grades
The next selection is Minimum Passing Grade:
29
003-4500 RJS, Minneapolis, MN
