6.2 Scanning Results

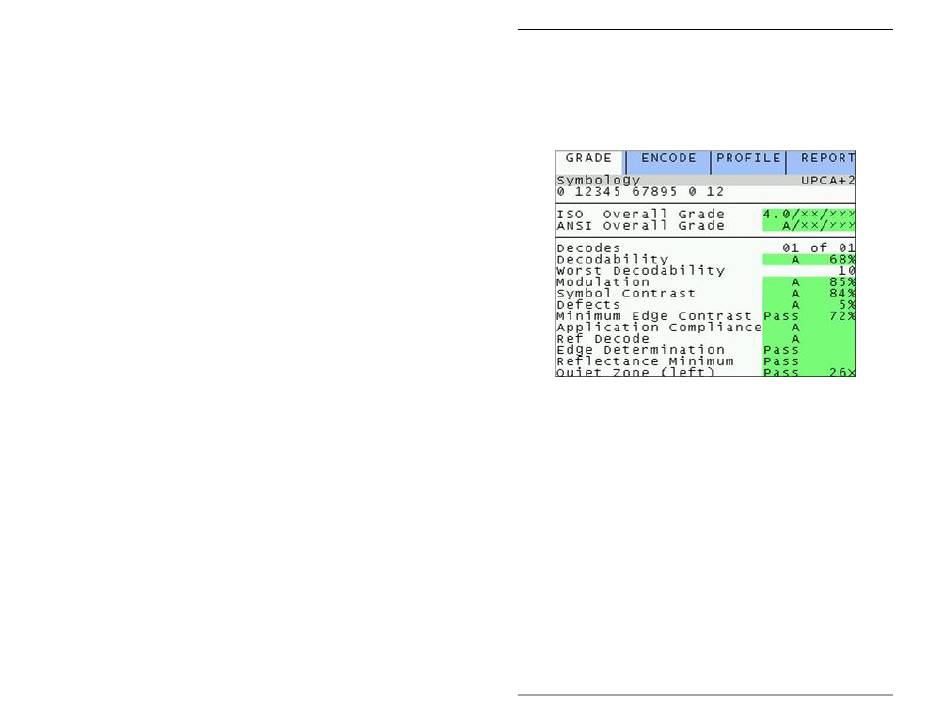

After a bar code is scanned, the Inspector 5000 will
respond with a crisp, chirp (or beep) sound and the Grade
screen will be displayed:
XX = indicates the aperture size in mils
YYY = indicates the wavelength (color) of the light
represented in nanometers
Example: 10/660
This display indicates that the installed Auto Optic
uses a 10 mil diameter aperture size and aRed light
at 660nm wavelength.
If the Setup parameter Pass/Fail Screen is set to Yes,
after the completion of a bar code inspection, the
Pass/Fail screen will be displayed for 5 seconds or until
Select button is pressed. If the Setup parameter Auto
Optic Number of Scans is set to more than 1, the
Pass/Fail screen will only be displayed following the last
scan.
