Schematic - CD Automation REVEX 1PH RX1 120 Series User Manual

REVEX
1PH from 120A to 210A

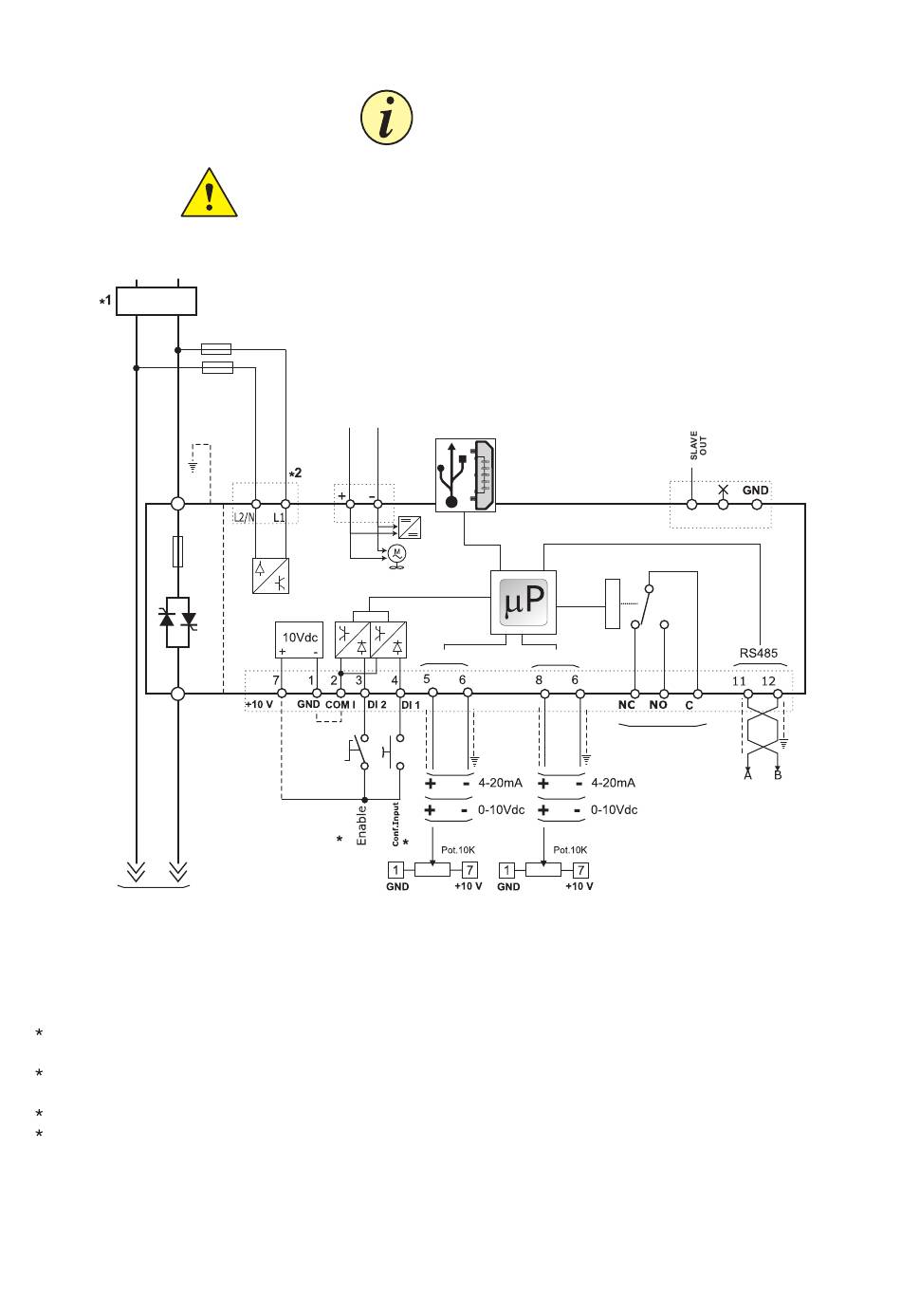

8.3 Schematic

L2/N L1
Branch Circuit
Protection
Fuse
1A Max
L1
T1
TO LOAD
NOTE:
1 The user installation must be protecting by electromagnetic circuit breaker or by fuse isolator.
The Fuse must be branch circuit protection.
2 M2 terminal used for Sync, connected as shown on Schematic above.
The auxiliary voltage supply of the REVEX Unit must be synchronized with load voltage power supply.
3 For SSR input connection follow next schematic.
4 IMPORTANT: Starting Strategy (Enable):
1: Feed the unit with L1-L2/N power voltage supply
2: Feed the auxiliary supply
3: Close the Enable contact to start with the regulation.
Warning: It is not possible to remove the M3 connector when the unit is powered.
Remove the AUX 24Vdc power supply before extracting the M3 connector.
Extracting the M3 connector with the AUX 24Vdc power supply connected to
the M3 terminal could damage the unit
Auxiliary
Voltage 24Vdc
M2 M3
SYNC.
M1
4
Analog Inp.1
Analog SetPoint
Indicative connection diagrams. Refer to local
regulations for proper system protection.
MICRO
USB 2.0
Analog Input 1
Analog Input 2
3
Analog Inp.2
Reference
Ext.Feedback
Ext. Current Limit
23
User's manual
M1
9 10 13
15 16 14
Function
Thermal
SC/HB
