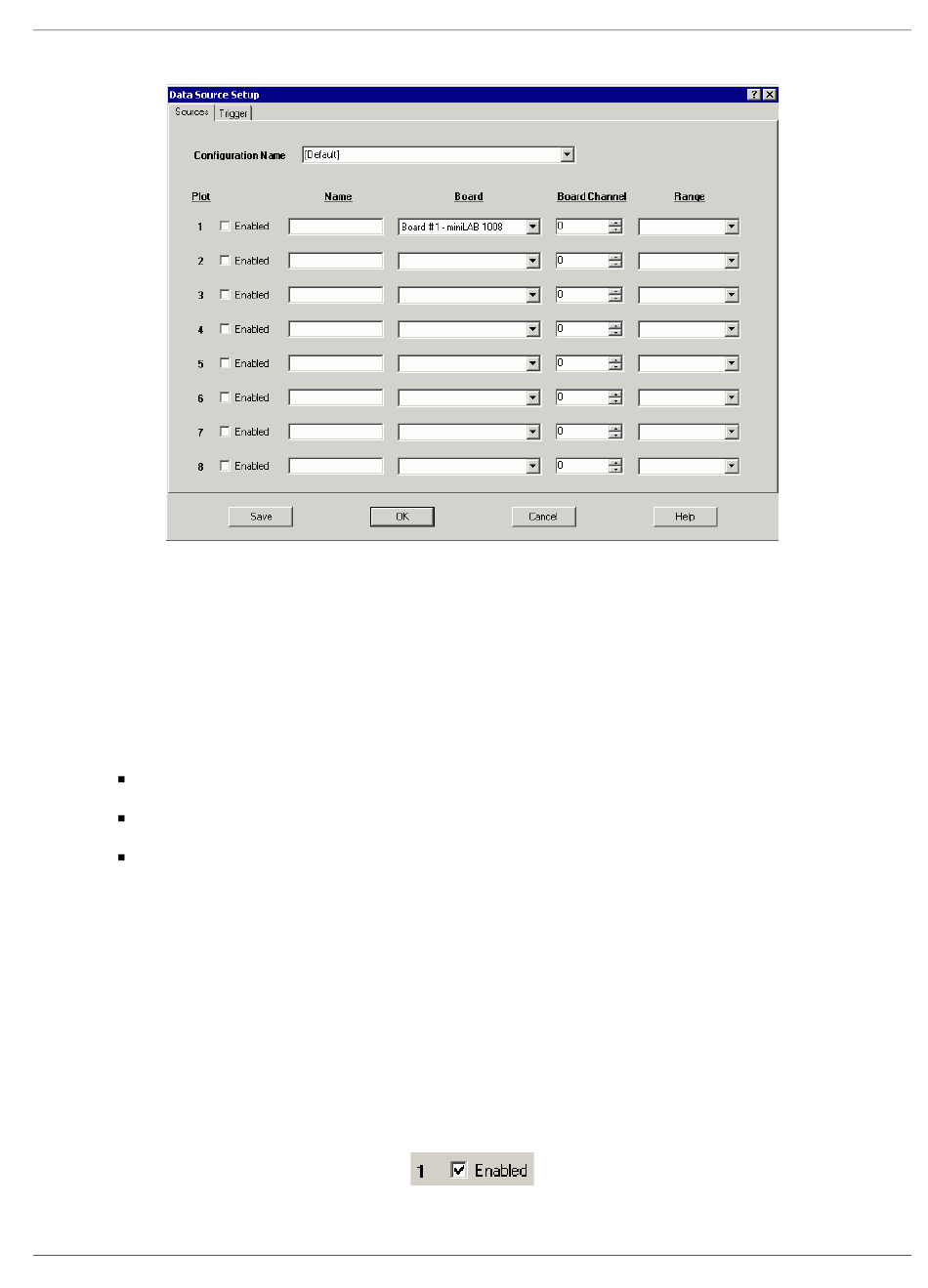

Use this dialog to set up the miniLAB 1008 as the data source used by the strip chart.

Selecting the channels to use for data

For this exercise, you are going select channels 0 and 3 as the data source you want to
acquire and plot. For each channel, you can configure the following options:
the A/D range of data to acquire
the name that appears on the strip chart legend to identify the data
the plot line to use for the data
To configure these options, do the following

Configuring channel 0

To configure the miniLAB 1008's channel 0 as part of the data source to acquire and
plot, follow the steps below.
1. Click to select the first
strip chart.
check box. This enables a plot line to show on the
Enabled
