- Page 3 PCI-DIO96H Digital Input/Output User's Guide Document Revision 3, May, 2009 © Copyright 2009, Measurement Computing Corporation...
- Page 4 Management committed to your satisfaction! Thank you for choosing a Measurement Computing product—and congratulations! You own the finest, and you can now enjoy the protection of the most comprehensive warranties and unmatched phone tech support. It’s the embodiment of our mission: ...
- Page 5 Information furnished by Measurement Computing Corporation is believed to be accurate and reliable. However, no responsibility is assumed by Measurement Computing Corporation neither for its use; nor for any infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of Measurement Computing Corporation.
-
Page 6: Table Of Contents
Software features ..............................7 PCI-DIO96H block diagram ..........................8 Chapter 2 Installing the PCI-DIO96H ........................9 What comes with your PCI-DIO96H shipment? ....................9 Hardware ..................................9 Additional documentation ..............................9 Optional components ................................ 9 Unpacking the PCI-DIO96H ..........................10 Installing the software ............................ -
Page 7: Preface
About this User's Guide What you will learn from this user's guide This user's guide explains how to install, configure, and use the PCI-DIO96H so that you get the most out of its digital I/O features. This user's guide also refers you to related documents available on our web site, and to technical support resources. -
Page 8: Introducing The Pci-Dio96H

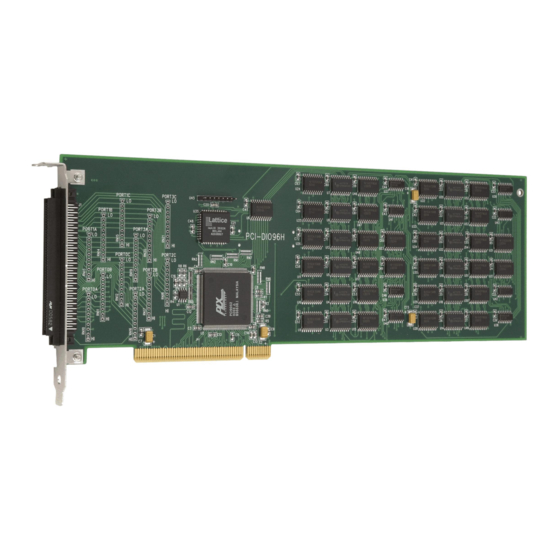

I/O board designed for the PCI-bus. The PCI-DIO96H provides 96-bits of digital I/O. The I/O is organized into four 24-bit groups based on an 82C55 mode 0 emulation. Each 24-bit group is divided into three eight-bit ports labeled PORTA, PORTB and PORTC. -
Page 9: Pci-Dio96H Block Diagram
PCI-DIO96H User's Guide Introducing the PCI-DIO96H PCI-DIO96H block diagram PCI-DIO96H functions are illustrated in the block diagram shown here. HIGH DRIVE FOURTHPORT PCI-DIO96H FOURTHPORTA(7:0) FOURTHPORTA Block Diagram FOURTHPORTB(7:0) FOURTHPORTB FOURTHPORTCH FOURTHPORTCH FOURTHPORTCH(3:0) FOURTHPORTCL(3:0) FOURTHPORTCL HIGH DRIVE THIRDPORT THIRDPORTA(7:0) THIRDPORTA THIRDPORTB(7:0) -
Page 10: Installing The Pci-Dio96H
Optional components C100FF-x cable Signal termination and conditioning accessories MCC provides signal termination products for use with the PCI-DIO96H. Refer to Field wiring, signal termination and conditioning on page 14 for a complete list of compatible accessory products. -
Page 11: Unpacking The Pci-Dio96H
Quick-Start.pdf. Installing the hardware The PCI-DIO96H board is completely plug-and-play. There are no switches or jumpers to set on the board. Configuration is controlled by your system's BIOS. To install your board, follow the steps below. Install the MCC DAQ software before you install your board The driver needed to run your board is installed with the MCC DAQ software. -
Page 12: Connecting The Board For I/O Operations
SSR-RACK48 * two devices are required The PCI-DIO96H board has a 100-pin, high-density Robinson-Nugent male connector. Connector pinouts are listed on page 12. The C100FF-x cable can be used to split the 100 I/O lines into two, 50-pin cables. Board connector pins 1 to 50 are mapped directly to pins 1 to 50 on the C100FF-x cable's first 50-pin connector. -
Page 13: Pin Out - Main I/O Connector
PCI-DIO96H User's Guide Installing the PCI-DIO96H Pin out – main I/O connector Main I/O connector pin out Signal name Signal name THIRDPORTC Bit 0 FIRSTPORTC Bit 0 THIRDPORTC Bit 1 FIRSTPORTC Bit 1 THIRDPORTC Bit 2 FIRSTPORTC Bit 2 THIRDPORTC Bit 3... -
Page 14: Cabling
PCI-DIO96H User's Guide Installing the PCI-DIO96H Cabling Cable is labeled “Pins 1-50”. The red stripe identifies pin # 1 Cable is labeled “Pins 51-100”. The red stripe identifies pin # 51 Figure 1. C100FF-x cable PCI-DIO96H C100FF-x 100-pin I/O connector... -
Page 15: Field Wiring And Signal Termination Accessories
PCI-DIO96H User's Guide Installing the PCI-DIO96H Field wiring and signal termination accessories You can use the following screw terminal boards to terminate field signals and route them into the PCI-DIO96H using the C100FF-x cable. CIO-MINI50 – 50-pin screw terminal board. -
Page 16: Chapter 3 Functional Details
The PCI-DIO96H board provides digital I/O in a group of 96 bits. Each of the C100FF-x cable's 50-pin connectors provides 48 bits. To use all of the board's 96 digital I/O bits to control relays and/or SSRs, configure the daisy chain as shown in Figure 3. -
Page 17: Pull-Up And Pull-Down Resistors
PCI-DIO96H User's Guide Functional Details Pull-up and pull-down resistors The PCI-DIO96H board has open locations where you can install a 2.2 K , eight-resistor single inline package (SIP) resistor network for each port. The locations are marked (RN10 through PORT#A... -
Page 18: Chapter 4 Specifications
Chapter 4 Specifications Typical for 25 °C unless otherwise specified. Specifications in italic text are guaranteed by design. Digital input / output Table 1. Digital I/O specifications Digital type 8255 emulation, Mode 0 Output 74S244 Input 74LS373 Configuration 8 banks of 8, 8 banks of 4, programmable by bank as input or output Number of I/O Output high 2.4 volts min @ -15 mA... -
Page 19: Main Connector And Pin Out
PCI-DIO96H User's Guide Specifications Main connector and pin out Table 5. Main connector specifications Connector type 100-pin, high-density Compatible cables C100FF- x Compatible accessory products CIO-MINI50* CIO-SPADE50* CIO-TERM100 SCB-50 CIO-ERB24 CIO-SERB24 CIO-ERB48 CIO-SERB48 SSR-RACK24 SSR-RACK48 * two devices are required... - Page 20 PCI-DIO96H User's Guide Specifications Table 6. Main connector pin out Signal name Signal name THIRDPORTC Bit 0 FIRSTPORTC Bit 0 THIRDPORTC Bit 1 FIRSTPORTC Bit 1 THIRDPORTC Bit 2 FIRSTPORTC Bit 2 THIRDPORTC Bit 3 FIRSTPORTC Bit 3 THIRDPORTC Bit 4...
-
Page 21: Declaration Of Conformity
Norton, MA 02766 Category: Electrical equipment for measurement, control and laboratory use. Measurement Computing Corporation declares under sole responsibility that the product PCI-DIO96H to which this declaration relates is in conformity with the relevant provisions of the following standards or other documents: EC EMC Directive 2004/108/EC: General Requirements, EN 61326-1:2006 (IEC 61326-1:2005). - Page 22 Measurement Computing Corporation 16 Commerce Boulevard, Middleboro, Massachusetts 02346 (508) 946-5100 Fax: (508) 946-9500 E-mail: info@mccdaq.com www.mccdaq.com...
