- Page 1 (217) 352-9330 | Click HERE Find the Measurement Computing PCI-DDA08/12 at our website:...
- Page 2 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 3 PCI-DDA08/12 Analog Output and Digital I/O User's Guide Document Revision 2, July, 2006 © Copyright 2006, Measurement Computing Corporation Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 4 Measurement Computing. Thank you for choosing a Measurement Computing product—and congratulations! You own the finest, and you can now enjoy the protection of the most comprehensive warranties and unmatched phone tech support. It’s the embodiment of our two missions: To offer the highest-quality, computer-based data acquisition, control, and GPIB hardware and software available—at...
- Page 5 Information furnished by Measurement Computing Corporation is believed to be accurate and reliable. However, no responsibility is assumed by Measurement Computing Corporation neither for its use; nor for any infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of Measurement Computing Corporation.
-
Page 6: Table Of Contents
Overview: PCI-DDA08/12 features ....................... 1-1 Software features ............................1-1 PCI-DDA08/12 block diagram........................1-2 Chapter 2 Installing the PCI-DDA08/12......................2-1 What comes with your PCI-DDA08/12 shipment? ..................2-1 Hardware ..................................2-1 Additional documentation.............................. 2-1 Optional components ..............................2-1 Unpacking the PCI-DDA08/12 ........................2-2 Installing the software ............................ -
Page 7: Preface
About this User's Guide What you will learn from this user's guide This user's guide explains how to install, configure, and use the PCI-DDA08/12 so that you get the most out of its analog output and digital I/O features. This user's guide also refers you to related documents available on our web site, and to technical support resources. -

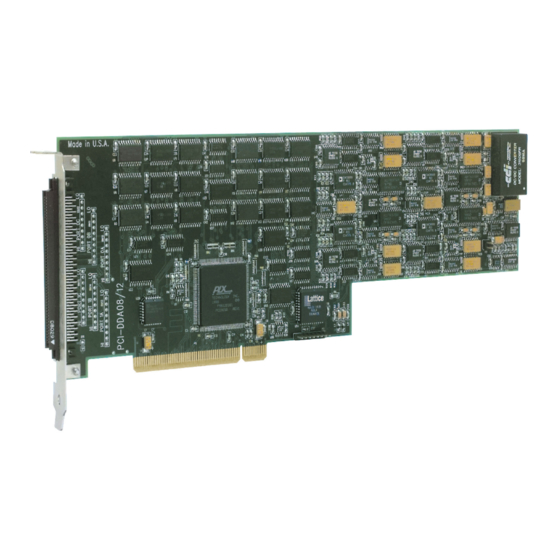

Page 8: Introducing The Pci-Dda08/12
Board configuration is controlled by your system's BIOS. Software features For information on the features of InstaCal and the other software included with your PCI-DDA08/12, refer to the Quick Start Guide that shipped with your device. The Quick Start Guide is also available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf. -
Page 9: Pci-Dda08/12 Block Diagram
PCI-DDA08/12 User's Guide Introducing the PCI-DDA08/12 PCI-DDA08/12 block diagram PCI-DDA08/12 functions are illustrated in the block diagram shown here. Gain Autocal Offset Autocal Vout 0 12-bit DAC0 Data Control 12-bit DAC1 12-bit DAC2 Controller 12-bit DAC3 Output Calibration 12-bit Control... -
Page 10: Installing The Pci-Dda08/12
In addition to this hardware user's guide, you should also receive the Quick Start Guide (available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf). This booklet supplies a brief description of the software you received with your PCI-DDA08/12 and information regarding installation of that software. Please read this booklet completely before installing any software or hardware. -
Page 11: Unpacking The Pci-Dda08/12
As with any electronic device, you should take care while handling to avoid damage from static electricity. Before removing the PCI-DDA08/12 from its packaging, ground yourself using a wrist strap or by simply touching the computer chassis or other grounded object to eliminate any stored static charge. -
Page 12: Pin Out - Main I/O Connector
C100FF-x cable CIO-TERM100 CIO-MINI50 (two required) The PCI-DDA08/12 uses a single 100-pin high density connector on the back plate of the board to bring out all required digital and analog lines and grounds. Pin out – main I/O connector Table 2-2. I/O connector pin out... -
Page 13: Field Wiring, Signal Termination And Conditioning
PCI-DDA08/12 User's Guide Installing the PCI-DDA08/12 Cable is labeled “Pins 1-50” The red stripe identifies pin # 1 Connect to the board’s 100-pin I/O connector. Pin 1 is indicated by an arrow on the connector. Cable is labeled “Pins 51-100”... -
Page 14: Programming And Developing Applications
After following the installation instructions in Chapter 2, your board should now be installed and ready for use. Programming languages Measurement Computing’s Universal Library™ provides access to board functions from a variety of Windows programming languages. If you are planning to write programs, or would like to run the example programs for ... -
Page 15: Chapter 4 Functional Details
The PCI-DDA08/12 emulates two 82C55 chips, but offers much higher drive capability than the 82C55. The board emulates only Mode 0 of the 82C55 (no strobed I/O or bi-directional I/O bits). The PCI-DDA08/12 is completely plug-and-play, without any onboard user configurable switches or jumpers. The 48 CMOS/TTL compatible digital I/O lines are configured in four banks of eight and four banks of four. - Page 16 PCI-DDA08/12 User's Guide Functional Details 2.2 KOhm SIP (LO or HI) I/O Lines Figure 4-1. Eight-Resistor SIP Schematic You can install the SIP as either pull-up or pull-down. At each location there are 10 holes in a line. One end of the line is +5V, the other end is GND.
-
Page 17: Calibrating The Pci-Dda08/12
Calibration configuration The PCI-DDA08/12 provides self-calibration of the analog source and measure systems. This eliminates the need for external equipment and user adjustments. The analog output circuits are calibrated for both gain and offset. Gain calibration of the analog output is performed via DAC reference adjustments. Offset adjustments for the analog output is made in the output buffer section. -
Page 18: In-System" Calibration
"In-system" calibration The PCI-DDA08/12 is calibrated at the factory for the correct voltages at the I/O connector. For more precise application of voltages at the "system end", we can provide a version of InstaCal that allows you to calibrate the board within your system for correct voltages at your field connection. -
Page 19: Chapter 6 Specifications
Chapter 6 Specifications Typical for 25 °C unless otherwise specified. Specifications in italic text are guaranteed by design. Power consumption Table 1. Power consumption specifications +5 V operating 1.6 A typical, 2.6 A max +12 V 24 mA typical, 48 mA max -12 V 16 mA typical, 25 mA max Analog output... -
Page 20: Digital Input / Output
PCI-DDA08/12 User's Guide Specifications Digital input / output Table 3. Digital I/O specifications Digital type (main connector) 82C55 mode 0 emulation Output: 74S244 Input: 74LS373 Configuration 4 banks of 8, 4 banks of 4, programmable by bank as input or output... - Page 21 PCI-DDA08/12 User's Guide Specifications Table 6. I/O connector pin out Signal Name Signal Name Vout 0 SECONDPORTA Bit 7 Analog Ground SECONDPORTA Bit 6 Vout 1 SECONDPORTA Bit 5 Analog Ground SECONDPORTA Bit 4 Vout 2 SECONDPORTA Bit 3 Analog Ground...
- Page 22 Norton, MA 02766 Category: Electrical equipment for measurement, control and laboratory use. Measurement Computing Corporation declares under sole responsibility that the product PCI-DDA08/12 to which this declaration relates is in conformity with the relevant provisions of the following standards or...
- Page 23 Measurement Computing Corporation 10 Commerce Way Suite 1008 Norton, Massachusetts 02766 (508) 946-5100 Fax: (508) 946-9500 E-mail: info@mccdaq.com www.mccdaq.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
