Returns
KEYPad|BUS|EXT

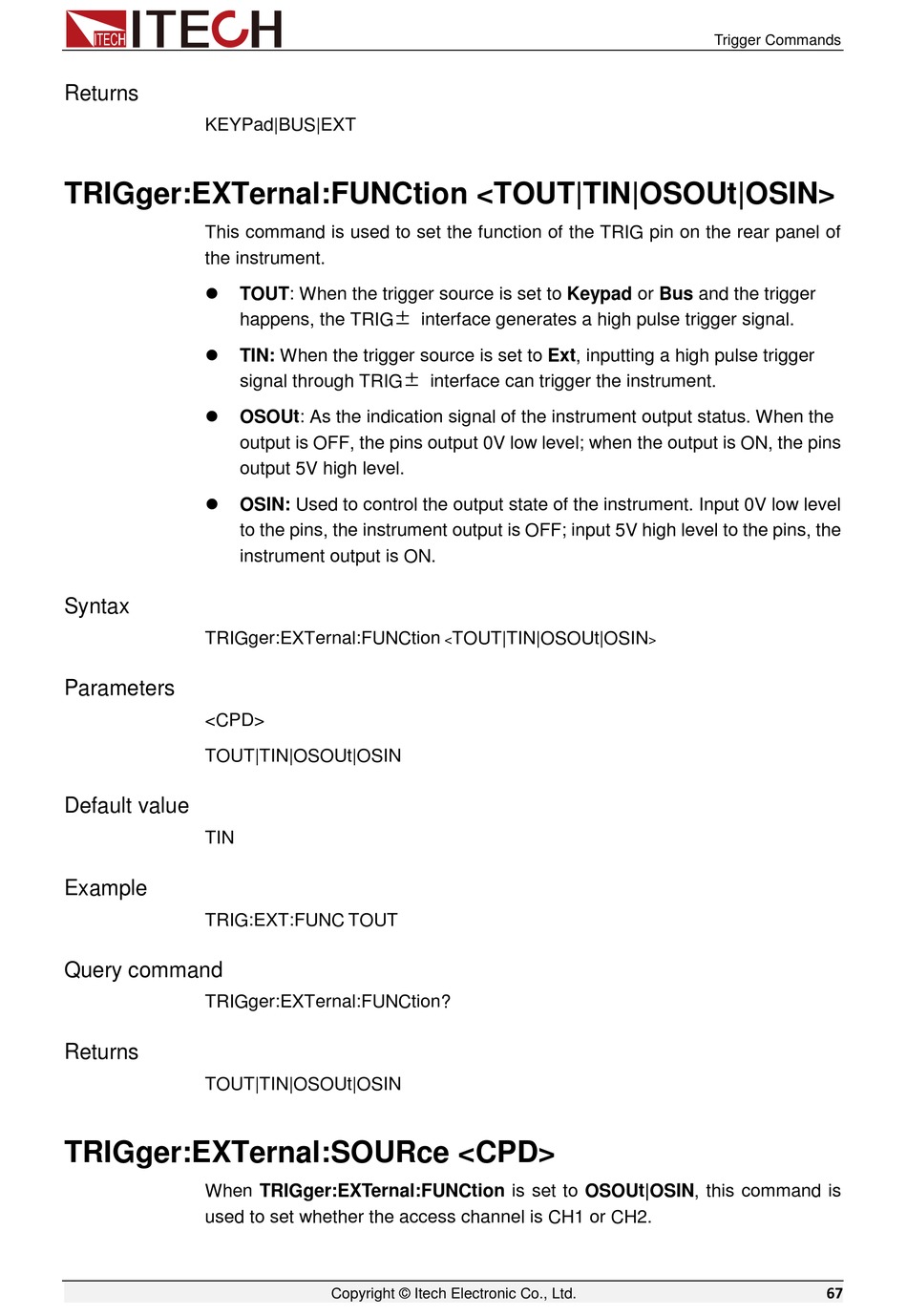

TRIGger:EXTernal:FUNCtion <TOUT|TIN|OSOUt|OSIN>
This command is used to set the function of the TRIG pin on the rear panel of
the instrument.




Syntax
TRIGger:EXTernal:FUNCtion
Parameters
<CPD>
TOUT|TIN|OSOUt|OSIN
Default value
TIN
Example
TRIG:EXT:FUNC TOUT
Query command
TRIGger:EXTernal:FUNCtion?
Returns
TOUT|TIN|OSOUt|OSIN
TRIGger:EXTernal:SOURce <CPD>
When TRIGger:EXTernal:FUNCtion is set to OSOUt|OSIN, this command is
used to set whether the access channel is CH1 or CH2.
TOUT: When the trigger source is set to Keypad or Bus and the trigger
happens, the TRIG± interface generates a high pulse trigger signal.
TIN: When the trigger source is set to Ext, inputting a high pulse trigger
signal through TRIG± interface can trigger the instrument.
OSOUt: As the indication signal of the instrument output status. When the
output is OFF, the pins output 0V low level; when the output is ON, the pins
output 5V high level.
OSIN: Used to control the output state of the instrument. Input 0V low level
to the pins, the instrument output is OFF; input 5V high level to the pins, the
instrument output is ON.
Copyright © Itech Electronic Co., Ltd.
TOUT|TIN|OSOUt|OSIN
<
