ADT7460
1.90
1.85
1.80
1.75
1.70
1.65
1.60
1.55
1.50
1.45
1.40
2.6 3.0 3.4
2.5
SUPPLY VOLTAGE (V)

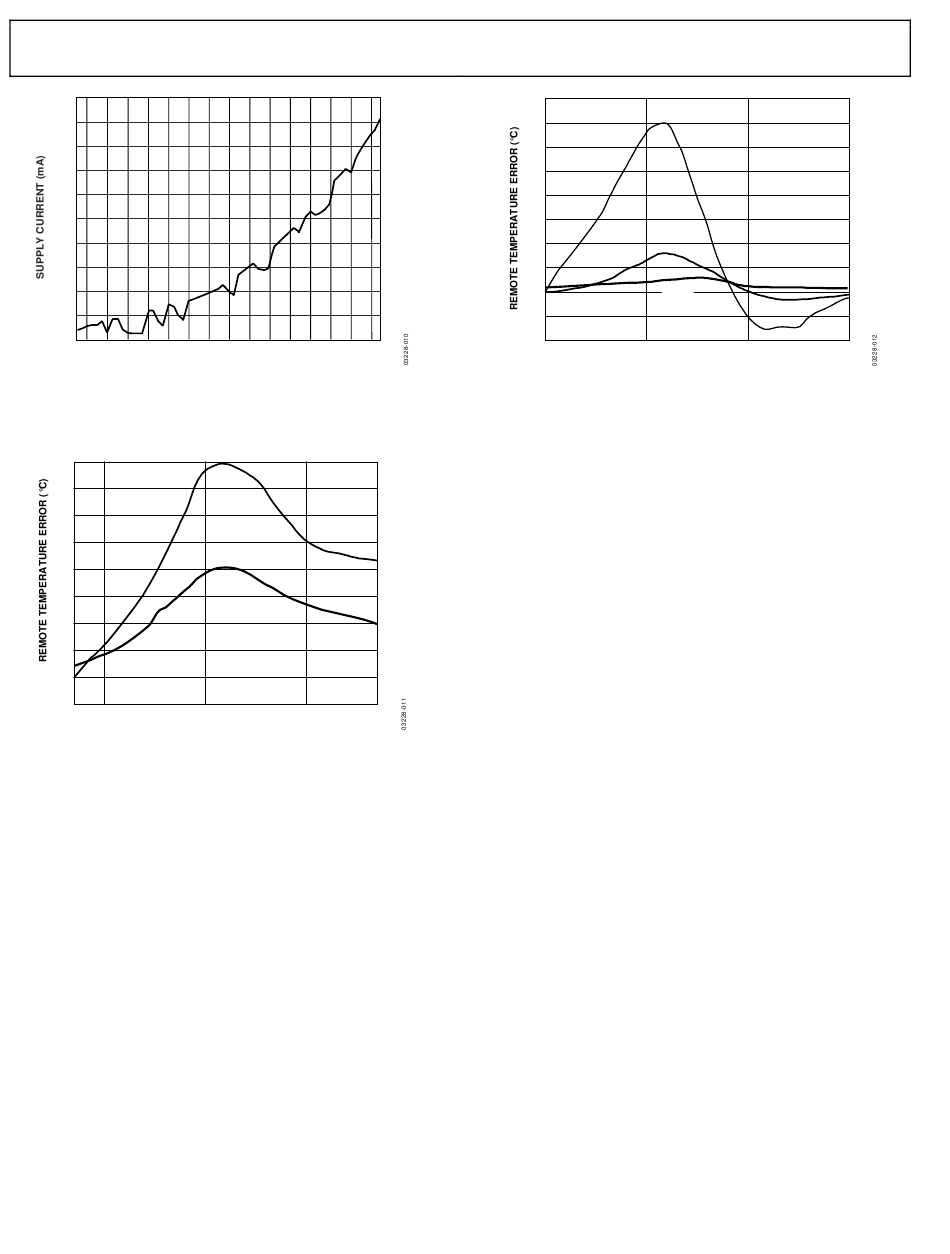

Figure 10. Supply Current vs. Supply Voltage
16
20mV
14
12
10
8
10mV
6
4
2
0
–2
60k 110k
FREQUENCY (Hz)
Figure 11. Remote Temperature Error vs. Differential Mode Noise Frequency
3.8 4.2 4.6 5.0 5.4
5.5
1M 10M 50M
40
35
30
25
20
15
10
5
0
–5
–10
10k
Figure 12. Remote Temperature Error vs. Common-Mode Noise Frequency
