Alinx ZYNQ7000 FPGA User Manual page 6

2 * 2 *
USB接口 USB接口
USB3320
USB2514
33.33
3Mhz
以太网网
KSZ9031R
口
以太网网
KSZ9031R
口
ADV7511
HDMI输出
QSPI
FLASH

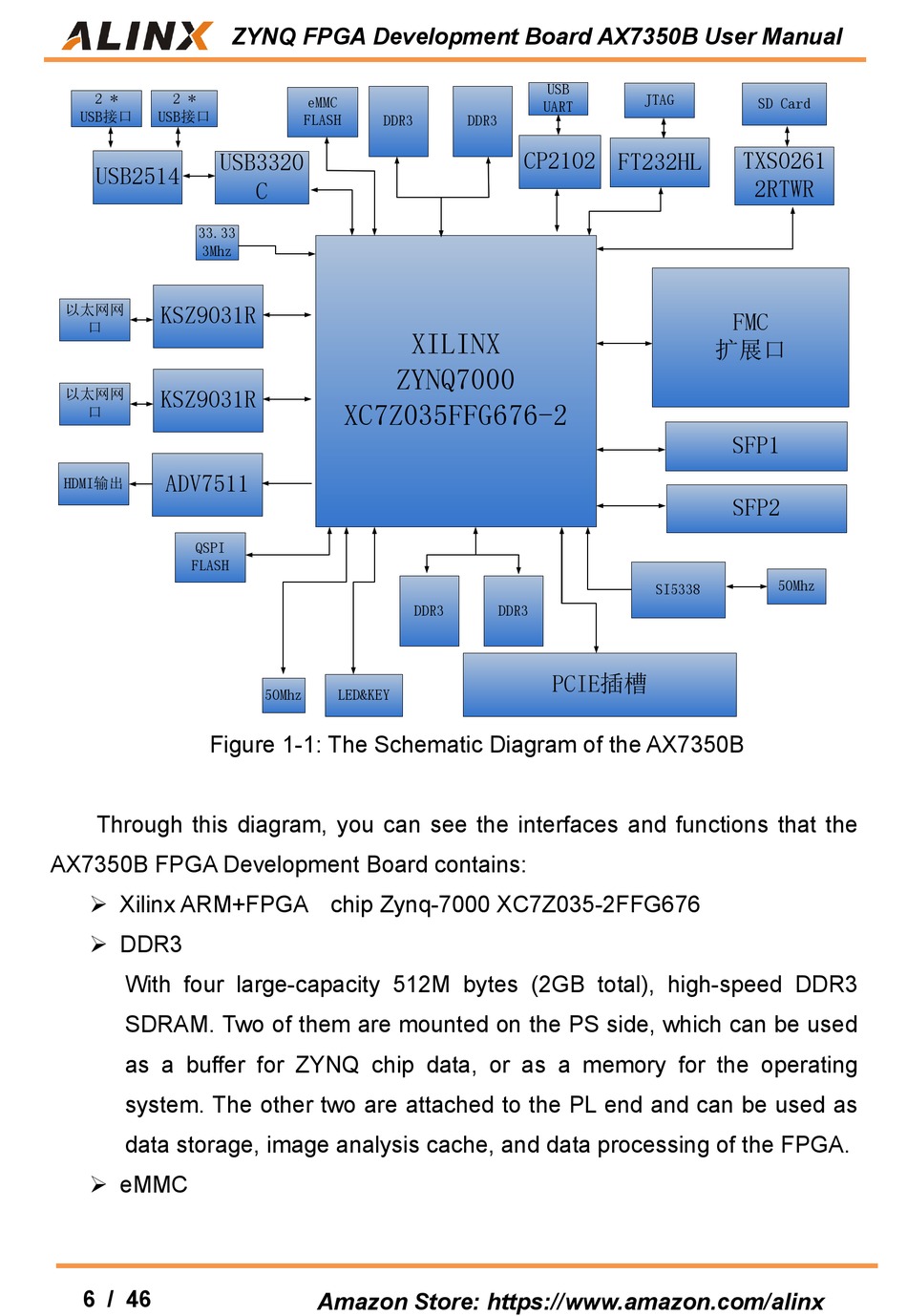

Figure 1-1: The Schematic Diagram of the AX7350B
Through this diagram, you can see the interfaces and functions that the
AX7350B FPGA Development Board contains:
 Xilinx ARM+FPGA chip Zynq-7000 XC7Z035-2FFG676
 DDR3
With four large-capacity 512M bytes (2GB total), high-speed DDR3
SDRAM. Two of them are mounted on the PS side, which can be used
as a buffer for ZYNQ chip data, or as a memory for the operating
system. The other two are attached to the PL end and can be used as
data storage, image analysis cache, and data processing of the FPGA.
 eMMC
6 / 46
ZYNQ FPGA Development Board AX7350B User Manual
eMMC
FLASH
DDR3
C
ZYNQ7000
XC7Z035FFG676-2
50Mhz LED&KEY
