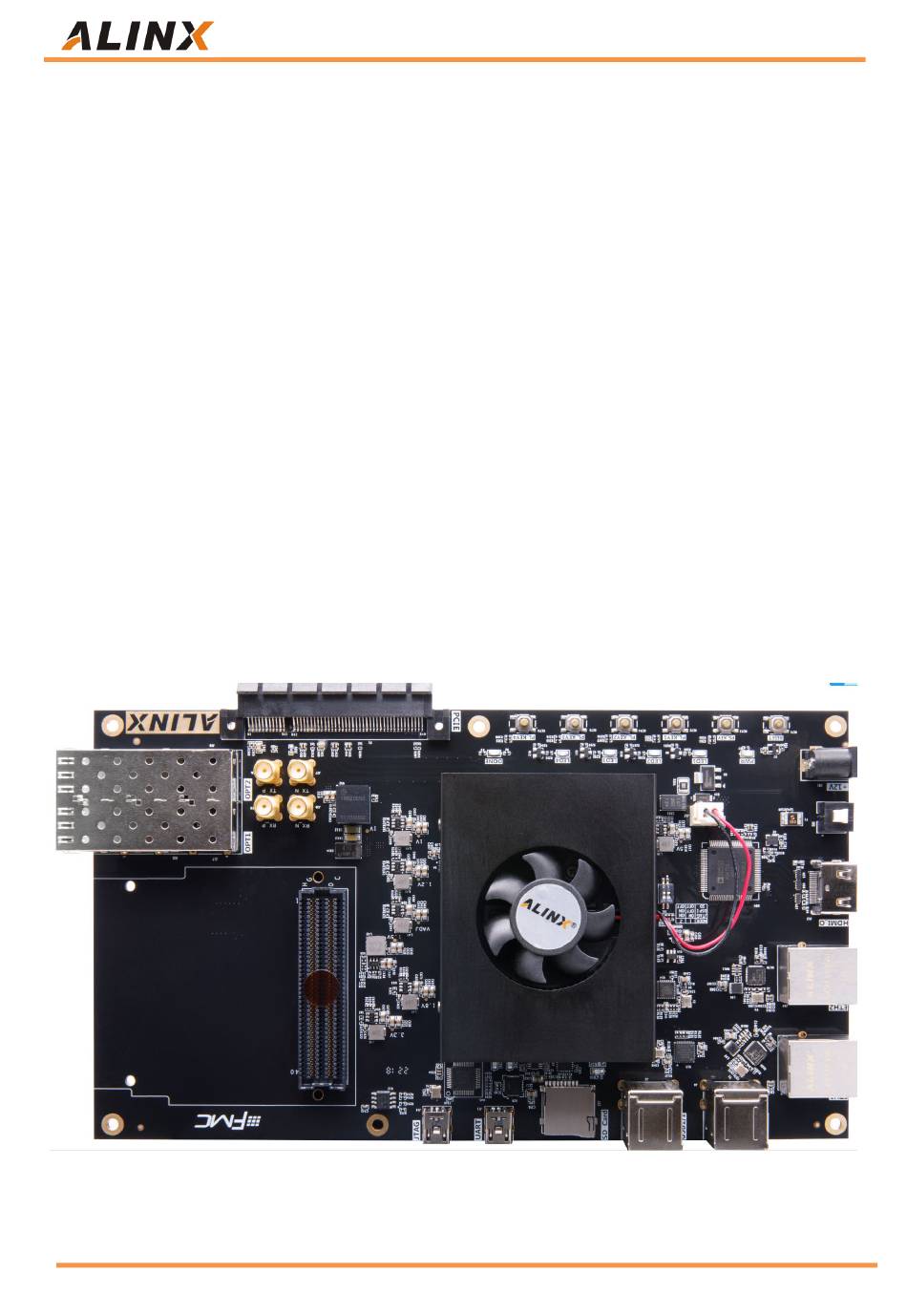

ZYNQ FPGA Development Board AX7350B User Manual
The ZYNQ7000 FPGA development platform uses XILINX's Zynq7000
SOC chip XC7Z035 solution, which uses ARM+FPGA SOC technology to
integrate dual-core ARM Cortex-A9 and FPGA programmable logic on a single
chip. ZYNQ has two 512MB high-speed DDR3 SDRAM chips on the PS and PL
sides. In addition, there are one 8GB eMMC memory chip and one 256Mb
QSPI FLASH chip on the PS side.
In terms of peripheral circuits, we have extended a wealth of interfaces for
users, such as a PCIex4 slot, 2 fiber interfaces, 2 Gigabit Ethernet interfaces, 4
USB2.0 HOST interfaces, 1 HDMI output interface, 1 channel UART serial
interface, 1 SD card interface, and an FMC expansion interface. It meets users'
requirements for high-speed data exchange, data storage, video transmission
processing and industrial control. It is a "professional" ZYNQ development
platform. For high-speed data transmission and exchange, pre-verification and
post-application of data processing is possible. This product is very suitable for
students, engineers and other groups engaged in ZYNQ development.
