Part 4: QSPI Flash

The AX7350B FPGA development board is equipped with a 256MBit
Quad-SPI FLASH chip, model W25Q256FVEI, which uses the 3.3V CMOS
voltage standard. Due to the non-volatile nature of QSPI FLASH, it can be used
as a boot device for the system to store the boot image of the system. These
images mainly include FPGA bit files, ARM application code, and other user
data files. The specific models and related parameters of QSPI FLASH are
shown in Table 4-1.
Position
U10
QSPI FLASH is connected to the GPIO port of the BANK500 in the PS
section of the ZYNQ chip. In the system design, the GPIO port functions of

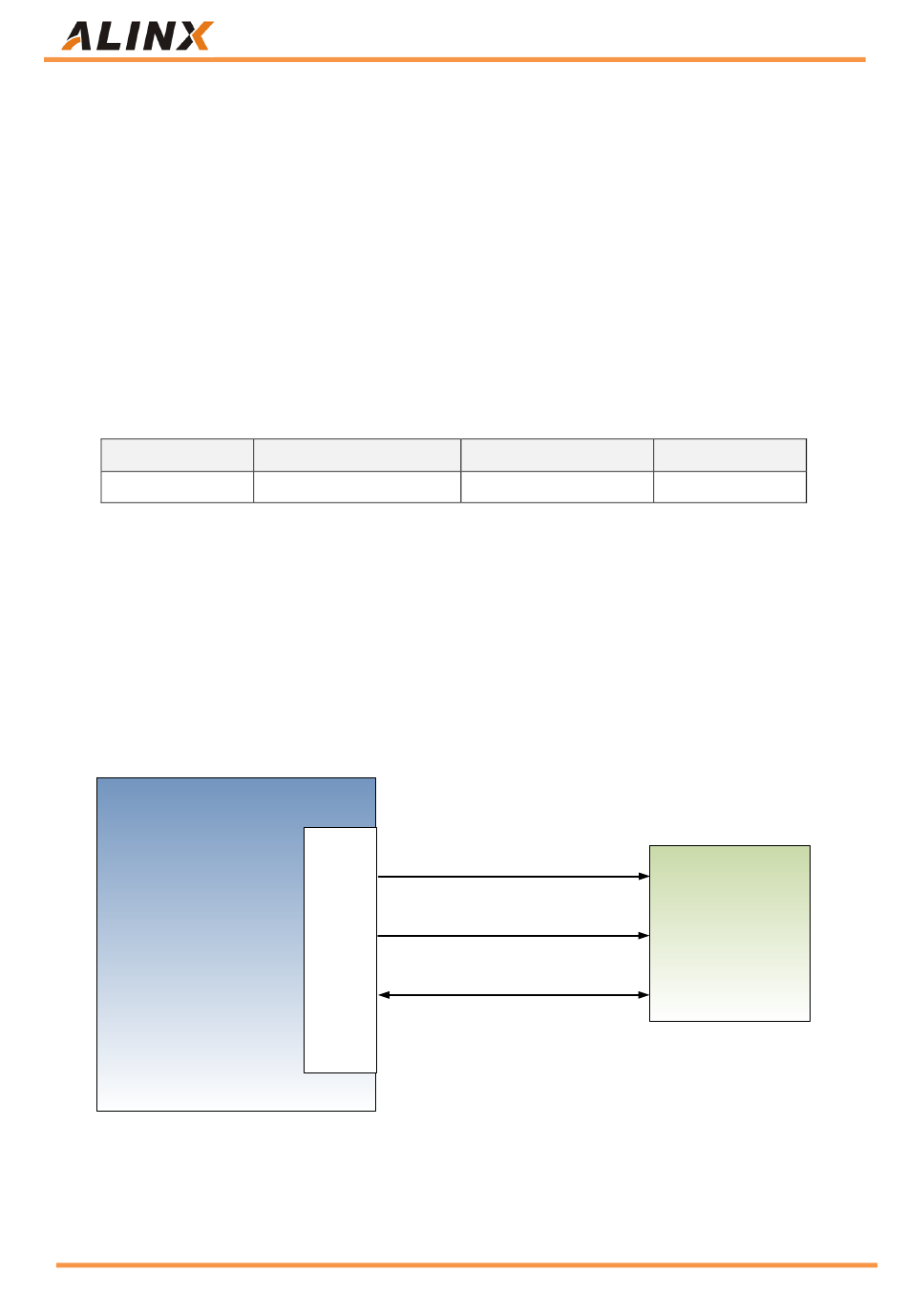

these PS ports need to be configured as the QSPI FLASH interface. Figure 4-1
shows the QSPI Flash in the schematic.
ZYNQ
18 / 46
ZYNQ FPGA Development Board AX7350B User Manual
Model
W25Q256FVEI
Table 4-1: QSPI FLASH Specification
U1
BANK
500
Figure 4-1: QSPI Flash in the schematic
Amazon Store: https://www.amazon.com/alinx
Capacity
32M Byte
QSPI_CS
QSPI_SCK
QSPI_D0~QSPI_D3
Factory
Winbond
U10
QSPI FLASH
(W25Q256F)
