ZYNQ FPGA Development Board AX7350B User Manual

FGG676, pin pitch is 1.0mm the specific chip model definition of ZYNQ7000

series is shown in Figure 2-2

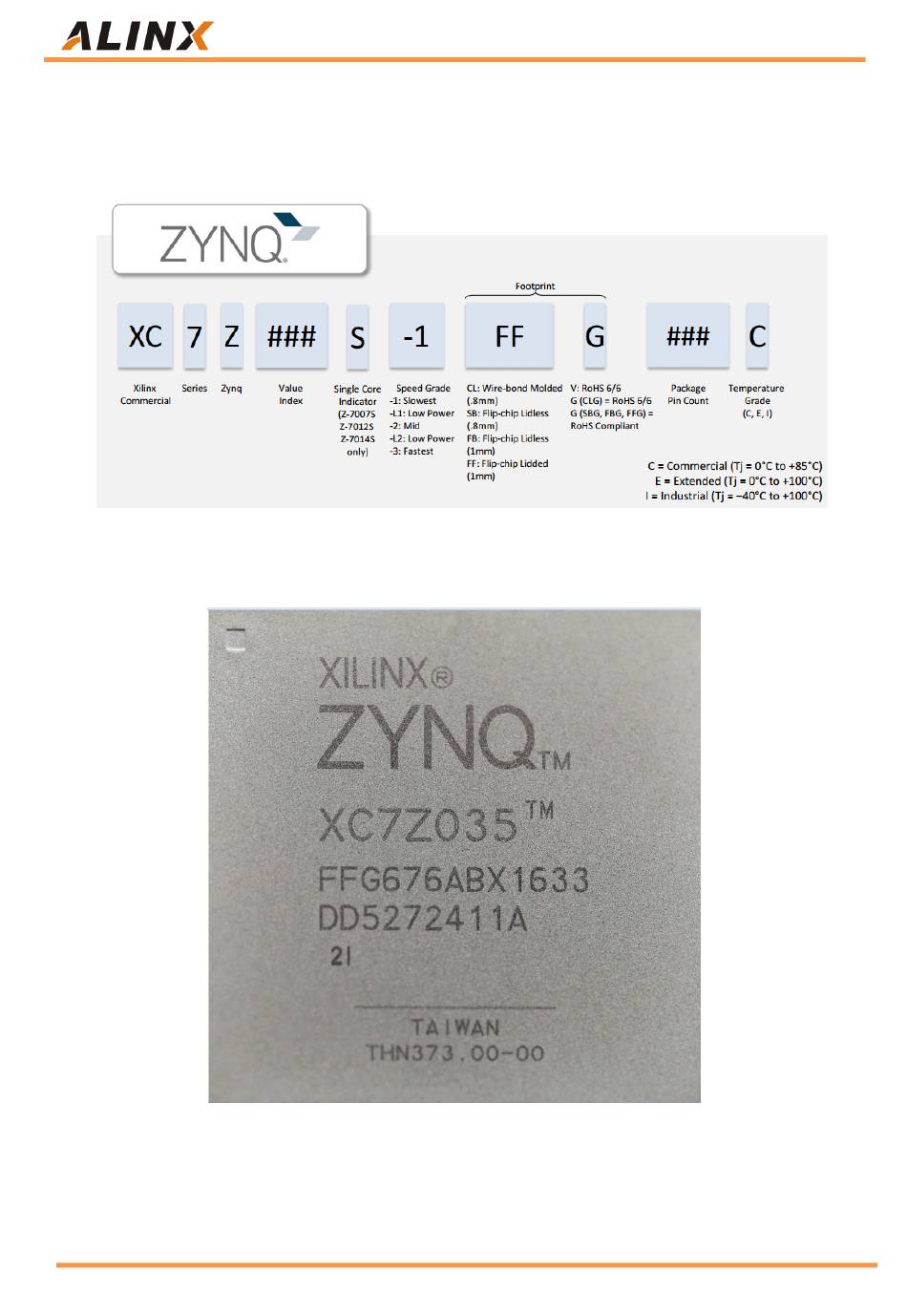

Figure 2-2: The Specific Chip Model Definition of ZYNQ7000 Series

Figure 2-3: The XC7Z035 chip used on the Core Board

11 / 46
