Part 1: FPGA Development Board Introduction

The AX301 development board uses ALTERA's Cyclone IV series FPGA,
the model is EP4CE6F17C8, and a 256-pin FBGA package. The resources of

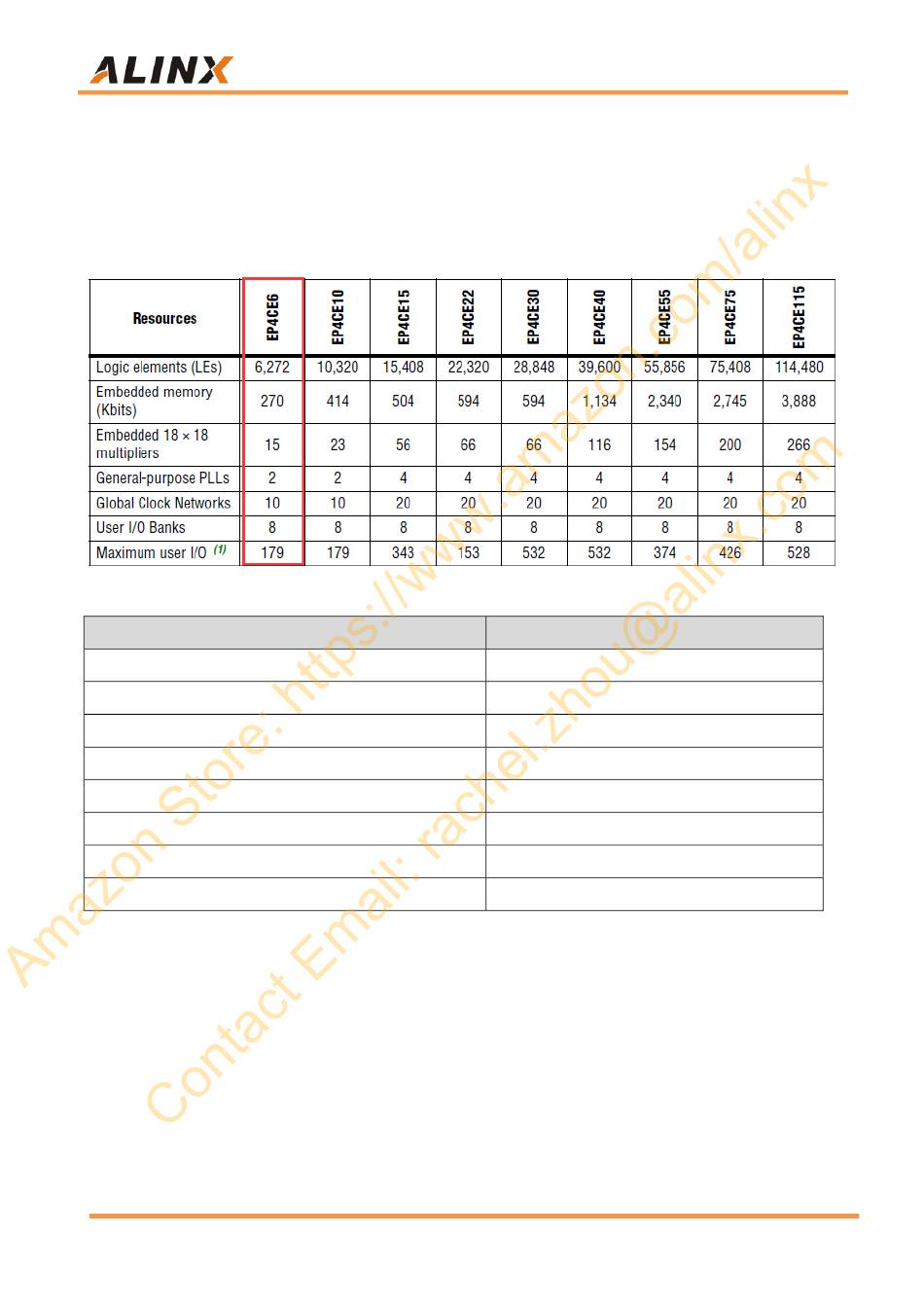

this FPGA are shown below:
The main parameters as below:
Parameters
Logic elements(LEs)
Embedded memory(Kbits)
Embedded 18x18multipliers
Global Phase Locked Loop (PLLs)
Global Clock Networks
Maximum number of available IOs
Core voltage
Operating temperature
The structure of the entire system is shown in Figure 1-1:
5 / 36
FPGA Development Board AX301 User Manual
Value
6272
270
15
2
10
179
1.15V-1.25V(recommend 1.2V);
0-85℃
