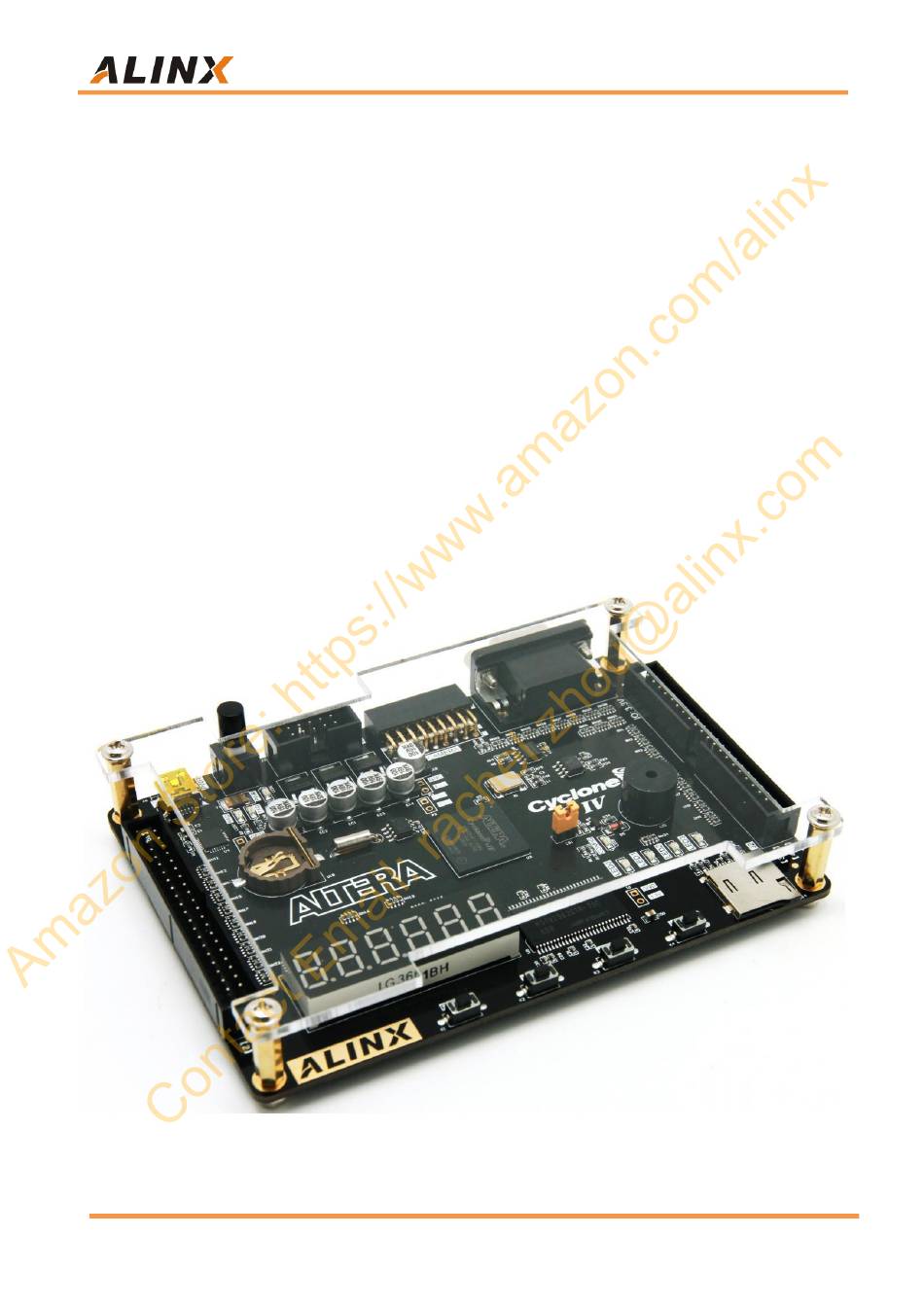

The ALINX AX301 development board is an entry-level product for
ALTERA FPGAs and is primarily targeted at FPGA beginners. AX301 uses
ALTERA's Cyclone IV series chip, the model is EP4CE6F17C8, and it is a
256-pin FBGA package. The configuration of the entire development board is
practical. There are two ALINX standard 40-pin 2.54 pitch expansion ports, a
total of 34 * 2 = 68 IOs. In addition, 5V power, 3.3V power, and multiple GNDs
are also available. It is a very good choice for DIY players. In addition, many
ALINX supporting modules can also be directly connected to the expansion
port of this FPGA development board, such as ADDA module, 4.3 inch LCD
screen, audio module, camera, etc. provide more options. The following is a
detailed introduction to AX301.
