Part 12: LEDs

The AX301 FPGA development board has 4 user LEDs on board. The
schematic diagram of the four user LEDs is shown in Figure 12-1. When the
FPGA pin output is logic 0, the LEDs will off. When the output is logic 1, the
LED is lit.
LEDs pin assignment:
Pin Name
LED0
LED1
LED2
LED3
26 / 36
FPGA Development Board AX301 User Manual

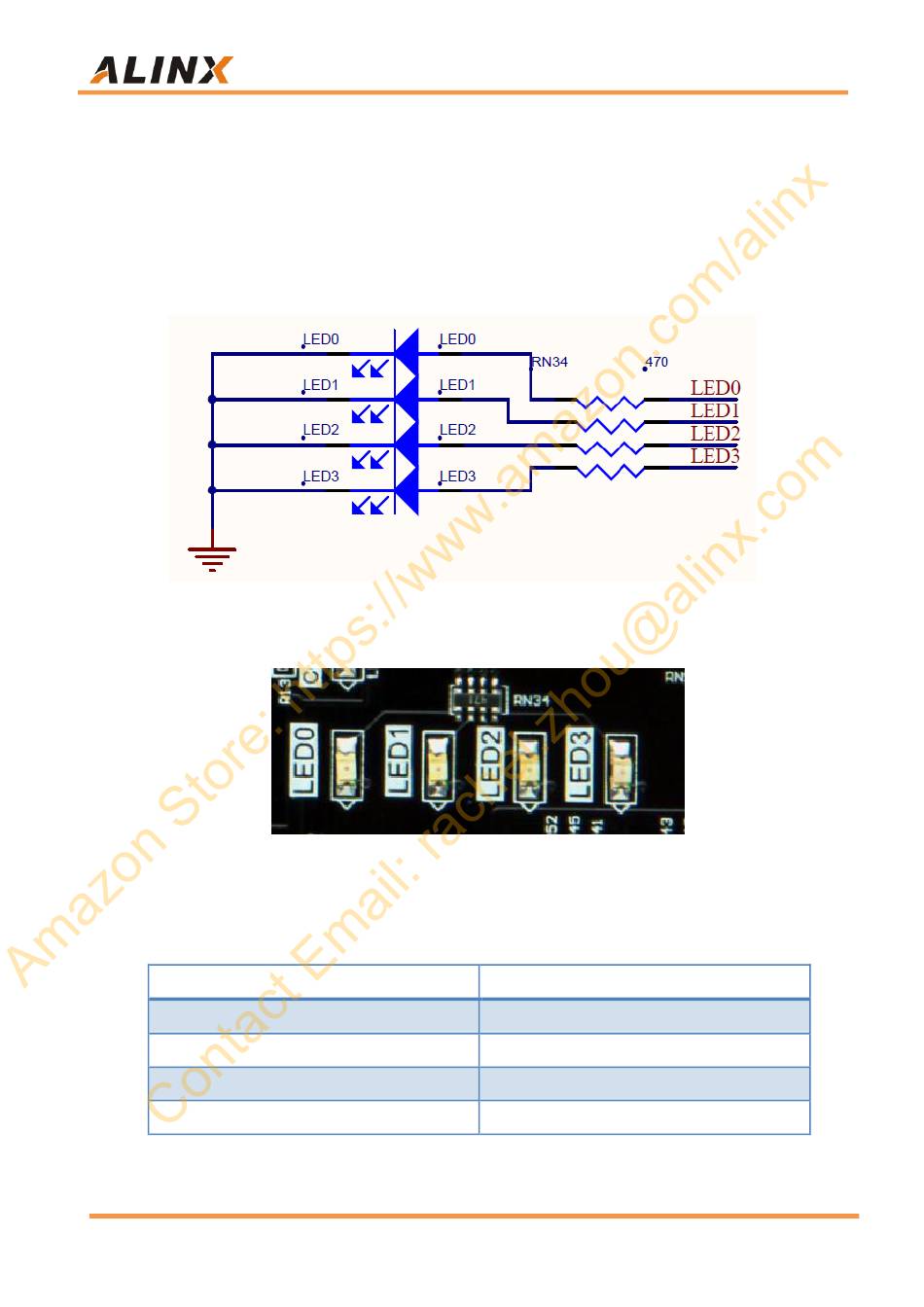

Figure 12-1: User LEDs Schematic
Figure 12-2: User LEDs on the FPGA Board
Amazon Store: https://www.amazon.com/alinx
FPGA Pin
E10
F9
C9
D9
