4.E - Side Panels
Attaching / Setting the clothing protector

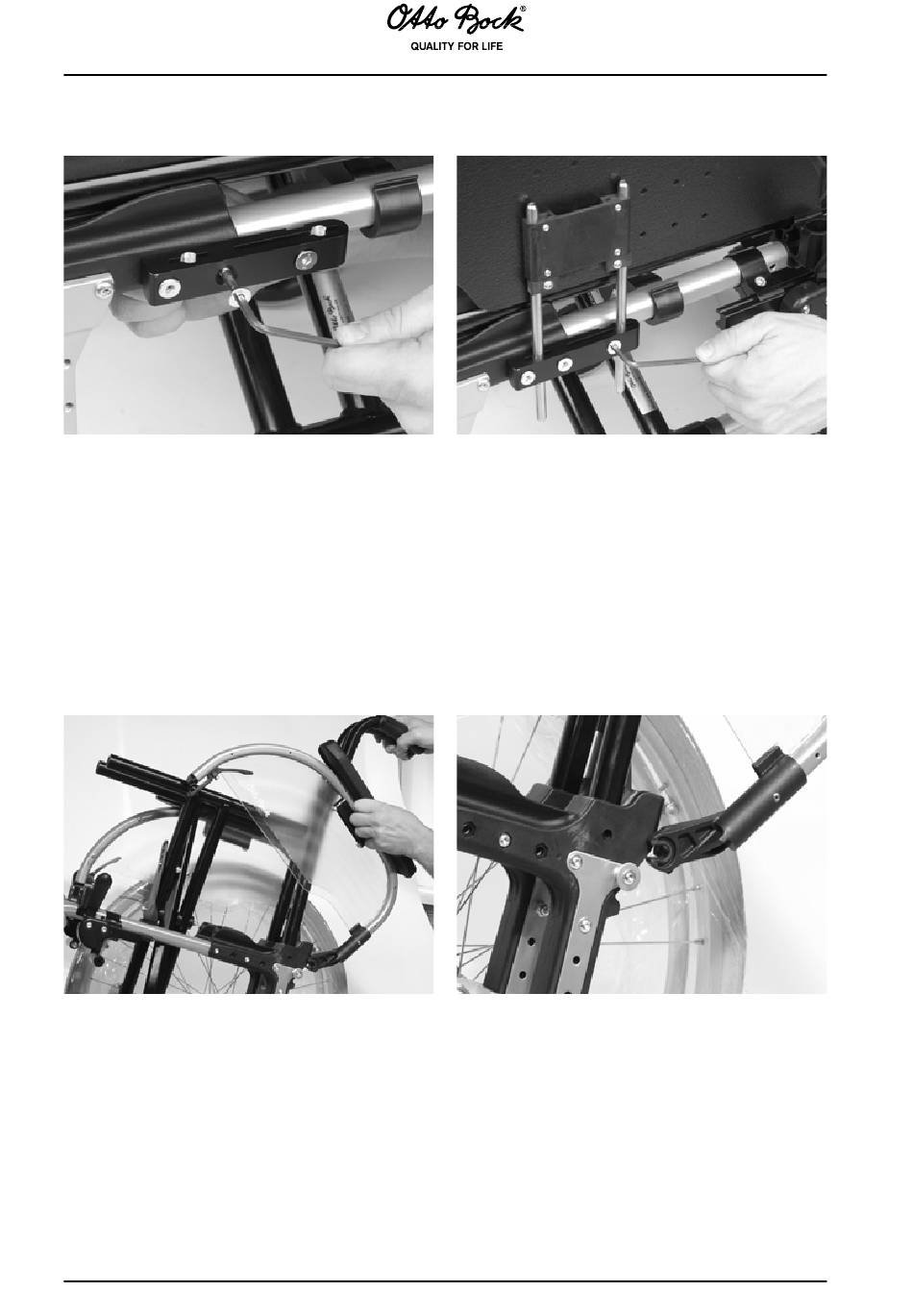

First remove the desk side panels. Then loosen the foremost screw from the central unit and screw the
adapter of the clothing protector with the two screws provided to the two anterior holes of the central unit as
shown in the photo.
Insert the clothing protector into the adapter's guides and fix it at the desired height with the clamping screw
in front of the adapter as shown in the photo.
To further change the position of the clothing protector in relation to the rear wheel, loosen the screw connec-
tions on the inner side of the clothing protector, position it in the desired new position and retighten the screw
connections.
Replacing the side panels
Release the side panel from the anterior guide using the locking lever and swing it to the back up to a 45°
angle. Then pull it upwards to the back out of the rear anchorage.
For reassembly, please proceed in reverse order.
