4 Settings / Replacement / Retrofit
4.A - Frame

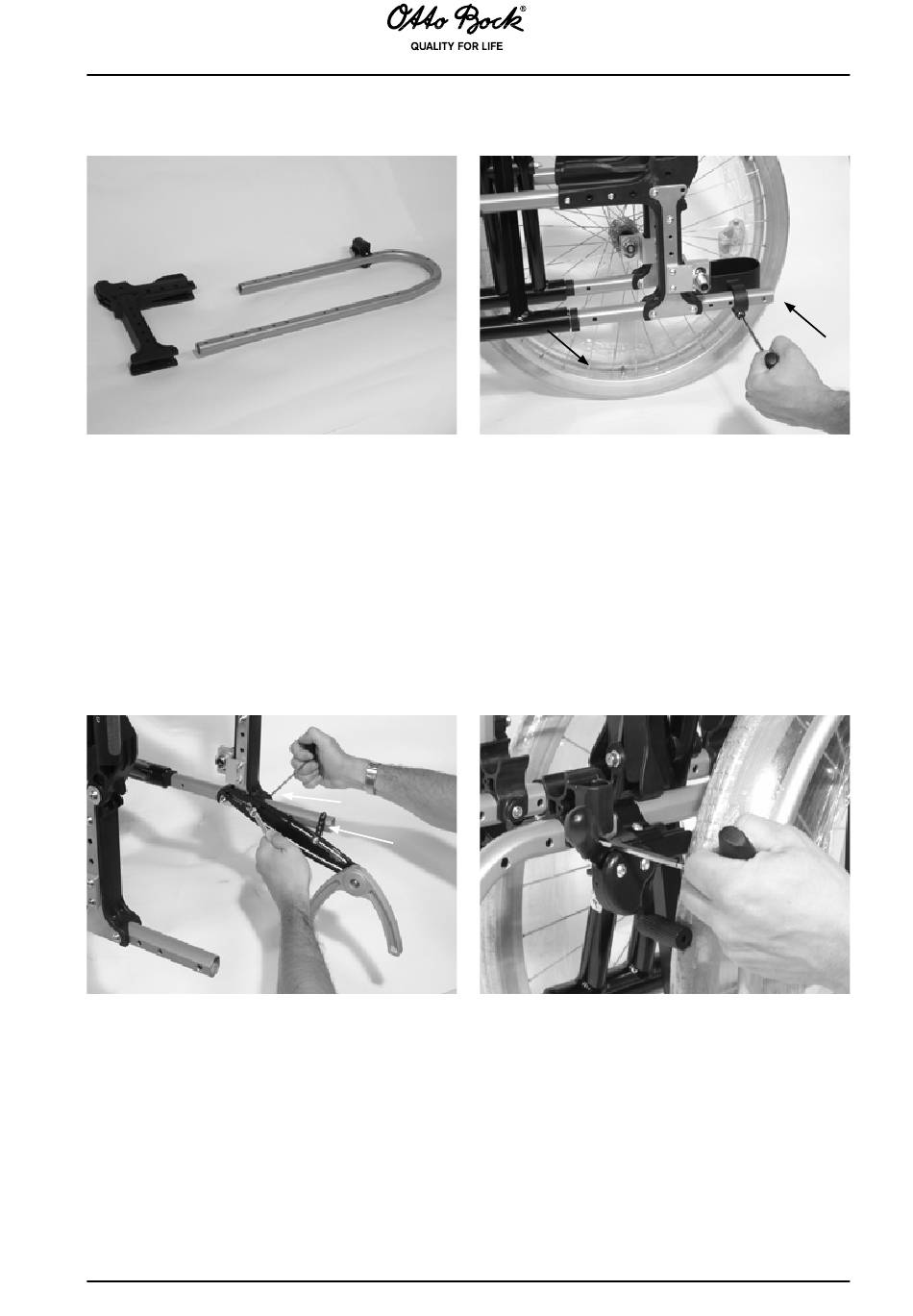

Replacing the frames
In order to replace one or both frames, you first have to
remove all component groups and accessories which
are connected to the frame.
- Central unit according to drawing,
- footrests (refer to section 4.B),
- crossbrace (refer to section 4.C),
- back/upholstery/push handles (refer to section 4.D),
- side panels (refer to section 4.E),
- casters and caster journal bearings (refer to section 4.F),
- rear wheels and rear wheel adapters (refer to sec
tion 4.G),
- and brakes / wheel locks (refer to section 4.H).
Replacement / Retrofit / Setting of the swinging
anti-tipper
Loosen and remove the screw connections (arrowed)
and remove the anti-tipper holder from the frame.
For reassembly, please proceed in reverse order.
Use new, self-locking nuts.
For setting the anti-tipper please observe the information
given in the instructions for use manual.
It is advisable to start with disassembling the acces-
sories which are attached to the frame, i.e. anti-tipper,
transport wheels or crutch holder. All parts mounted to
the frame are attached with screws.
Replacing the cap
There is a cap a the tube end, which can be cut open
when damaged using a blade and pulled off the tube
end. Put the new cap on the tube end (arrowed).
Replacing the support brackets
Swing the side panel to the rear and loosen and remove
the cap screw in the support brackets. Remove the
support brackets from the frame.
For reassembly, please proceed in reverse order.
Use new, self-locking screws.
9
