Otto Bock Start M1 Intro Service Manual page 17

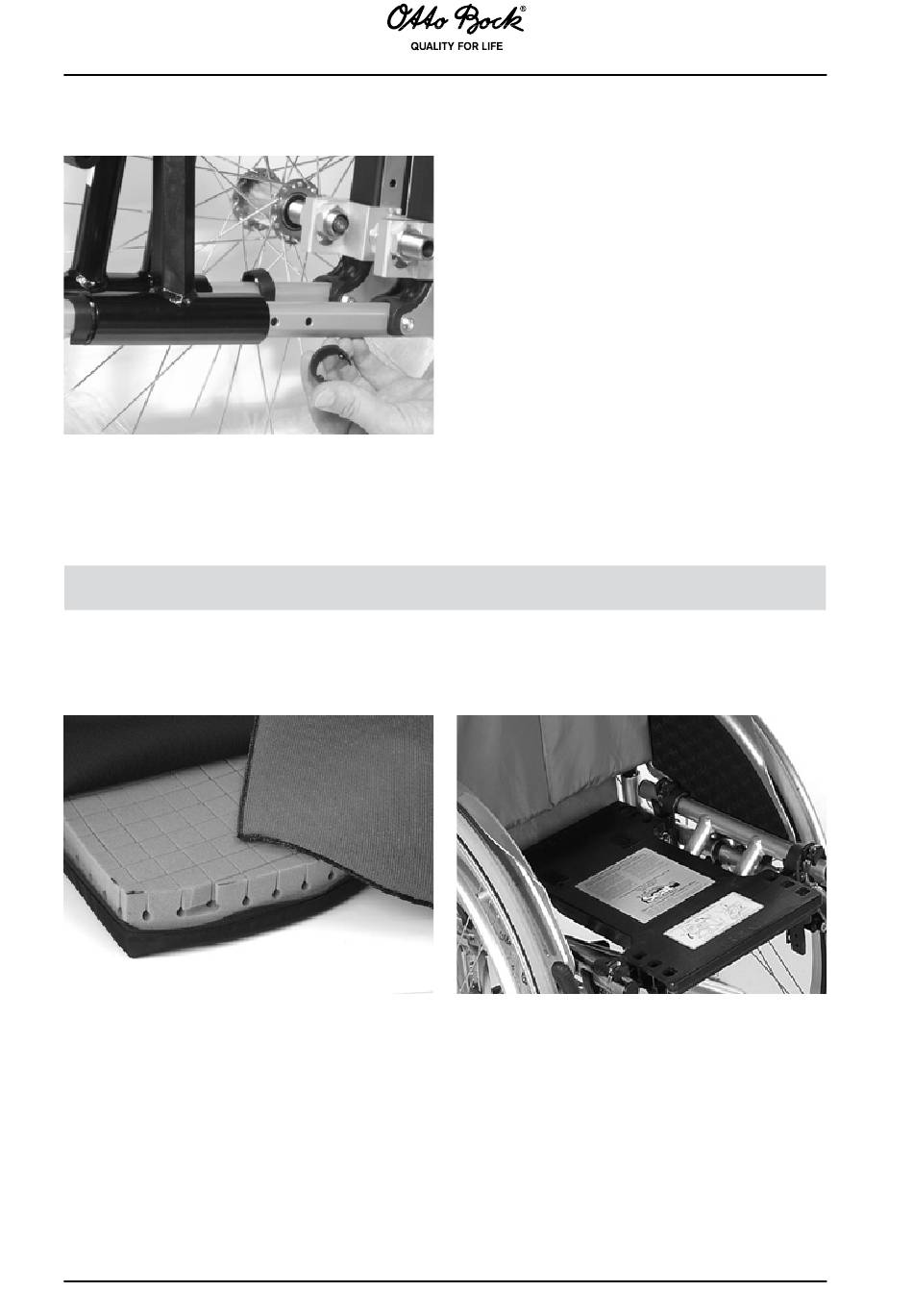

Adjusting the seat depth
The Start crossbrace allows you setting of the seat depth in three positions in increments of 2.5 cm. To change
the seat depth remove the two plastic clips on the lower frame tube and move the crossbrace on the frame. Insert
the plastic clip into the next bore hole so that the foot of the crossbrace is limited by the two plastic clips.
Be sure to properly engage the plastic clips in the bore holes provided for this after all adjustments.
Cleaning the seat cushion (example: Evolight)
Open the zipper and remove the foam core and the
spacer fabric. Clean the cushion cover according to
the sewn in care instructions label.
Cleaning the nylon seat upholstery
Clean the seat upholstery with regular mild household
cleaner.
6
Retrofitting with the seating system "Adjustable
Seat"
Please observe the information given in the product's
instructions for use manual 647H450.
