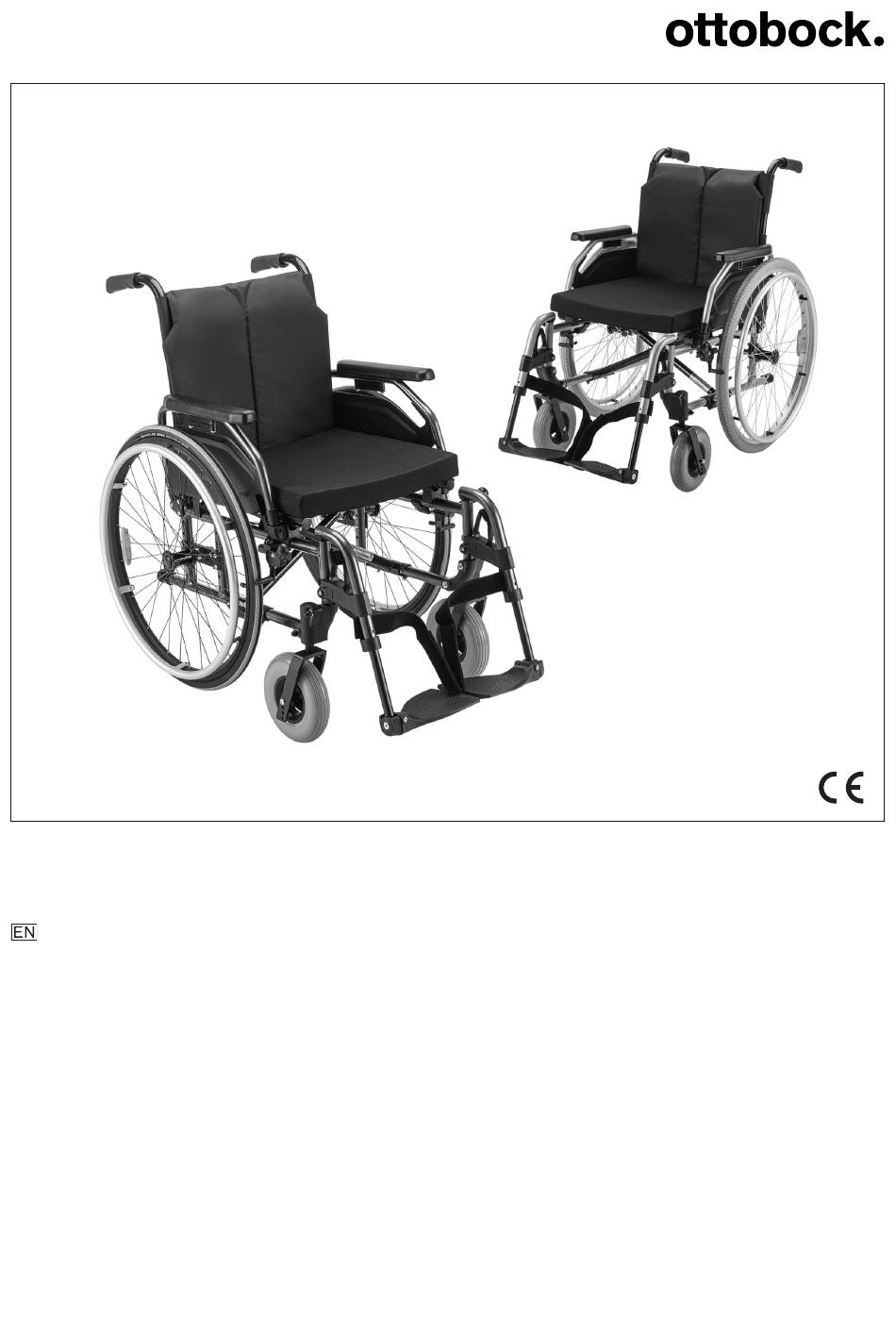

- Page 1 Start M2S, Start M2 Instructions for use (user) ..................
- Page 2 Start M2S, Start M2...
-
Page 3: Table Of Contents
............7.13.3 Knee lever wheel lock for user and attendant ..................7.13.4 Drum brake ............................7.13.5 Wheel lock lever extension ........................7.14 Anti-tipper/tip-assist ..........................7.14.1 Anti-tipper ............................7.14.2 Tip-assist ............................7.15 Lap belt (seat belt) ..........................Start M2S, Start M2... - Page 4 Inner tube, rim tape and tyre replacement ....................Disposal ................................Disposal information ..........................Legal information .............................. 10.1 Liability .............................. 10.2 Warranty ............................10.3 Service life ............................Technical data ..............................Appendices ................................ 12.1 Threshold values for wheelchairs transportable by train ................Start M2S, Start M2...
-
Page 5: Foreword
Ottobock assumes no liability for combinations with medical devices and/or accessories from other manufacturers not included in the modular system. Combinations based on a combination agreement that have been evaluated for effectiveness and safety are an exception to this. Start M2S, Start M2... -
Page 6: Indications
There are no known contraindications given proper use. 3 Product description 3.1 Function The wheelchair is intended exclusively for transporting one person on the seat. The wheelchair can be used on solid ground both indoors and outdoors. Start M2S, Start M2... -

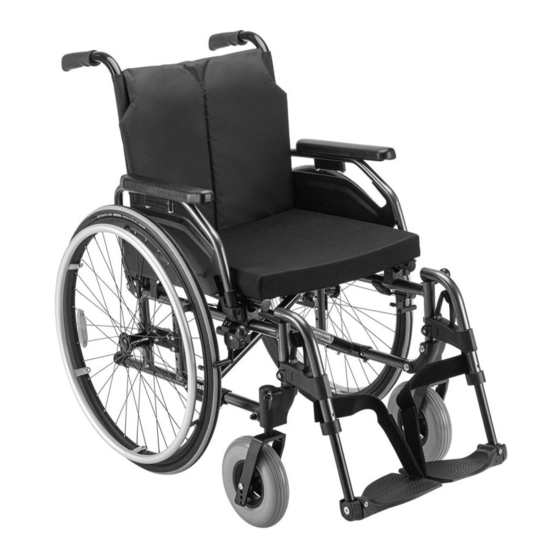

Page 7: Product Overview
9 Drive wheel adapter 3 Seat cushion 10 Frame 4 Wheel lock (here: knee lever wheel lock) 11 Handrim 5 Leg support, segmented, removable 12 Drive wheel 6 Caster fork 13 Push handle 7 Caster wheel Start M2S, Start M2... -
Page 8: Safety
13 Push handle 7 Caster wheel 4 Safety 4.1 Explanation of warning symbols Warning regarding possible serious risks of accident or injury. WARNING Warning regarding possible risks of accident or injury. CAUTION Warning regarding possible technical damage. NOTICE Start M2S, Start M2... -
Page 9: Safety Instructions For Use
Falling due to abrupt braking, rolling away of the wheelchair, damage to the wheel lock ► Do not use the wheel lock as a driving brake. ► Apply the wheel lock to prevent the wheelchair from moving on uneven ground or during transfers (e.g. into a car). Start M2S, Start M2... - Page 10 Risk of collisions with other traffic participants due to lack of lighting ► Wear bright clothing or clothing with reflectors. ► Install active lighting on your product. ► Ensure that the reflectors on the product are clearly visible. Start M2S, Start M2...
- Page 11 WARNING Exceeding the service life Serious injuries due to failure to observe the manufacturer’s requirements ► Using the product beyond the specified expected service life leads to increased residual risk. ► Observe the specified service life. Start M2S, Start M2...
-
Page 12: Side Effects
C Maximum load (see section “Technical data”) D Manufacturer information/address E Serial number F Manufacturing date G Manufacturer’s article number for the product variant H WARNING! Read the instructions for use before using the product. Observe important safety-related information (e.g. warnings, precautions). Start M2S, Start M2... -
Page 13: Warning Labels
Tyres contain chemical substances that can react with other chemical substances (such as cleaning agents, acids, etc.). 6 Preparation for use 6.1 Assembly CAUTION Exposed pinch points Crushing, pinching due to incorrect handling ► When folding the wheelchair out or together, only grip by the specified components. Start M2S, Start M2... - Page 14 5) If necessary: Pull the part of the flap that can be fastened forwards and fasten tightly to the seat upholstery (see fig. 5). 6) If necessary: Fit the seat cushion. The seat cushion is secured against sliding by being pressed on to the hook-and-loop fastener (see Page 19). Start M2S, Start M2...
-
Page 15: Use
3) Fold the leg support out 90° (see fig. 7, item 1) and pull up to detach (see fig. 7, item 2). Attaching the leg support – segmented leg support 1) Hold the leg support 90° out to the side and insert it into the leg support retainer (see fig. 7, item 1/2). Start M2S, Start M2... - Page 16 1) Hold the leg support and turn the release lever upwards to the stop (see fig. 10/see fig. 11, item 1). 2) Set the angle (see fig. 10/see fig. 11, item 2). 3) Let go of the release lever. The leg support will automatically snap into place in the next free position. Start M2S, Start M2...
-
Page 17: Further Settings
The product is equipped with seat and back upholstery. Hook-and-loop fasteners on the seat upholstery are used to attach the seat cushion. The seat cushion ensures pressure relief during use of the wheelchair. The seat upholstery and back support upholstery/back support pad can be removed from the wheelchair for clean ing. Start M2S, Start M2... - Page 18 2) Fold down the back support pad and secure it to the upholstery straps with the hook-and-loop fasteners (see fig. 17). 3) Pull the part of the flap that can be fastened forward and attach it to the seat upholstery with the hook-and-loop fastener (see fig. 5). Start M2S, Start M2...
-
Page 19: Seat Cushion
1) Pull the cable of the back support release mechanism until the angle adjustment is released by the locking pins (see fig. 21). 2) Move the back support to the desired position. 3) Release the cable. Ensure that the locking pins securely engage on both sides. Start M2S, Start M2... -
Page 20: Side Panels
Swinging back the side panels 1) Fold the side panel forwards. 2) The side panel locking mechanism has to audibly engage in the side panel adapter. INFORMATION: Verify the firm fit of the side panels in the side panel adapter. Start M2S, Start M2... - Page 21 The height of the forearm support should only be adjusted by qualified personnel. Adjusting the forearm support height – side panel with height-adjustable forearm support 1) Push the release button (see fig. 27, item 1). 2) Adjust the height of the forearm support (see fig. 27, item 2). Start M2S, Start M2...
-
Page 22: Arm Supports/Hand Supports
Adjusting the depth of the arm support 1) Loosen the Allen head screws under the arm support (see fig. 30, item 2). 2) Slide the arm support to the desired depth. 3) Re-tighten the Allen head screws under the arm support (see fig. 30, item 2). Start M2S, Start M2... -
Page 23: Push Handles
1) Open the star handle on the right side (see fig. 33, item 1). 2) Fold the stabiliser bar down (see fig. 33, item 2). Closing the stabiliser bar 1) Fold the stabiliser bar up until the opening is against the screw of the star handle. 2) Hand-tighten the star handle. Start M2S, Start M2... -
Page 24: Drive Wheels
► If the drive wheel does not lock securely or has too much sideways play, contact the qualified personnel promptly. 1) Release the wheel lock. 2) Grip the area between the spokes near the hub with your fingers. 3) Use your thumb to press the push-button on the quick-release axle. Start M2S, Start M2... -
Page 25: Rear Wheel With One-Handed Operation (Double Push Rings)
3) Set the other end of the telescoping rod onto the second wheel pivot and release the telescoping rod (see fig. 38, item 3). 4) To remove the telescoping rod, compress it again and take it off the wheel pivots. Start M2S, Start M2... -
Page 26: Caster Wheels And Caster Forks
1) Remove dirt (e.g. hairs) from the caster wheel axle between the caster wheel and caster fork (see fig. 39, item 1). 2) Lubricate the caster axle between the caster wheel and caster fork with a few drops of thin, resin-free oil (sew ing machine oil). Start M2S, Start M2... -
Page 27: Wheel Locks
1) Push the handle of the knee lever wheel lock forward (see fig. 42, item 1). → The wheel lock bolt secures the wheel. 2) Pull the wheel lock lever upwards (see fig. 42, item 2). → The wheel lock bolt releases the wheel. Start M2S, Start M2... -
Page 28: Knee Lever Wheel Lock For User And Attendant
Activating/deactivating the drum brake 1) Pull the wheel lock lever (see fig. 45, item 1). 2) If necessary, secure the wheel lock lever by additionally actuating the lock slide (see fig. 45, item 2). → The wheelchair remains securely braked. Start M2S, Start M2... -
Page 29: Wheel Lock Lever Extension
► If only one attendant helps in overcoming steps, the attendant must first deactivate the anti-tipper so that it cannot collide with the steps during transport. ► The attendant must activate the anti-tipper again after overcoming the steps. Start M2S, Start M2... -
Page 30: Anti-Tipper
For this wheelchair type the tip-assist is integrated into the frame (see fig. 50). 1) At an obstacle, place one foot on the tip-assist and push down. 2) Slightly tip the wheelchair by simultaneously pressing down on the push handles. Start M2S, Start M2... -
Page 31: Lap Belt (Seat Belt)
If the lap belt is too loose, the user can shift/slide out to the front. • During the installation/adjustment, the lap belt is routed over parts of the seating system (e.g. over forearm supports or seat pads). This causes the lap belt to lose its retaining function. Start M2S, Start M2... -
Page 32: Transport Wheels
The wheel locks can be engaged and released by the attendant, respectively using the hands. 7.18 Crutch holder with hook-and-loop fastening strap The crutch holder with hook-and-loop fastening strap allows crutches to be attached to the wheelchair. Start M2S, Start M2... -
Page 33: Headrest
Crushing or pinching due to adjustments which are too tight ► Do not pinch the user when sliding in the product. CAUTION Driving with objects on the tray top Injuries due to unsecured objects ► Remove all objects from the tray top prior to travelling. Start M2S, Start M2... -
Page 34: Side Thoracic Support
2) Fold the thoracic support away to the side to make getting in easy (see fig. 59, item 2). 3) Fold the thoracic support back again and push it down so it locks into the retainer. 7.22 Additional options The product may be equipped with additional options: • Heel strap Start M2S, Start M2... -
Page 35: Disassembly And Transport
5) Pull up the seat upholstery until the wheelchair folds together (see fig. 60). Fasten the safety strap (not illus trated). 6) Remove the drive wheels (see Page 24). 7) Place the disassembled wheelchair in the vehicle (see fig. 61). Start M2S, Start M2... -
Page 36: Use In Vehicles For Transporting Persons With Reduced Mobility
Four belt loops are necessary in order to use the product as a transport seat in a vehicle for transporting persons with reduced mobility (tested according to ISO 10542-1 or comparable test standards). The qualified personnel who fitted the wheelchair can provide more information. Required materials • 4 belt loops (e.g. from Unwin Safety Systems, Q’Straint) Start M2S, Start M2... -
Page 37: Using The Product In A Vehicle
5) Engage the hook of the respective vehicle side wheelchair restraint belt in the belt loop (see fig. 66, item 2). 6) Tighten the vehicle side wheelchair restraint belts at the front and rear as firmly as possible. → The product showing the correct positioning of the attachment straps (see fig. 67). Start M2S, Start M2... - Page 38 4) Secure the shoulder belt on the mounting point/pin provided on the lap belt (not illustrated). 5) Fold the side panels forward again. → The restraint lap belt is pulled through and fastened. → The belt runs respectively between the side panel and seat cushion. Start M2S, Start M2...
-
Page 39: Restrictions For Use
Important information on cleaning • Do not use any aggressive cleaners, solvents or hard brushes etc. • Clean plastic parts, frame parts and the chassis and wheels with a mild cleaner and a damp cloth. Dry thor oughly afterwards. Start M2S, Start M2... -
Page 40: Cleaning In A Washing Chamber/Wheelchair Washing System
Recommendation: Use a laundry bag or net and mild detergent. INFORMATION Alternatively, the belt straps can be cleaned by gently dabbing them with warm soapy water (with some disinfect ant) or carefully wiped with a dry, clean, absorbent cloth. Start M2S, Start M2... -
Page 41: Disinfection
Particles of dirt and hair accumulate on the caster wheel axle and threaded axle of the caster fork over time. This makes the steering stiffer. Regularly remove dirt and oil the axles. See the section “Approach in case of stiffness”. Start M2S, Start M2... -
Page 42: Repair
2) Slightly inflate the tube until it starts to assume its round shape. 3) Unscrew the valve nut from the tube and push the valve through the valve opening in the rim. 4) Insert the tube into the tyre. Start M2S, Start M2... -
Page 43: Disposal
Expected service life: 4 years The design, manufacturing and requirements for the intended use of the product are based on the expected ser vice life. These also include the requirements for maintenance, ensuring effectiveness and the safety of the product. Start M2S, Start M2... -
Page 44: Technical Data
► Note that not all adjustment possibilities can be used with all product versions. Furthermore, the adjustment combinations are limited by the compact frame geometry. ► Technical changes and tolerances are reserved by the manufacturer. General information Start M2S, Start M2 Max. load (in kg) Weight [kg] from 15.3 (for seat width of 430 mm) -
Page 45: Appendices
Appendices Start M2, Start M2S Minimum Maximum Rear seat height [mm] M2: 380 M2: 500; M2S: 470 Back support angle [°] Back support height [mm] M2: 400 M2: 475; M2S: 425 Adjustability of the back support [°] Distance from leg support to seat [mm] Distance from arm support to seat [mm] Drive wheel size ["]... - Page 46 Maximum inclination angle on which the wheelchair will 6 (dynamic stability in all directions) remain stable [°] 9 (static stability in all directions, also when wheel lock engaged) Threshold value is always maintained with this product Start M2S, Start M2...
- Page 47 · www.ottobock.de 143441 Moscow Region/Krasnogorskiy Rayon info@ottobock.com.co · www.ottobock.com.co Russian Federation Otto Bock Healthcare Products GmbH Otto Bock de Mexico S.A. de C.V. T +7 495 564 8360 · F +7 495 564 8363 Brehmstraße 16 · 1110 Wien · Austria Prolongación Calle 18 No. 178-A info@ottobock.ru · www.ottobock.ru F +43 1 5267985...
- Page 48 Ihr Fachhändler | Your specialist dealer Otto Bock Mobility Solutions GmbH Lindenstraße 13 · 07426 Königsee/Germany www.ottobock.com...
