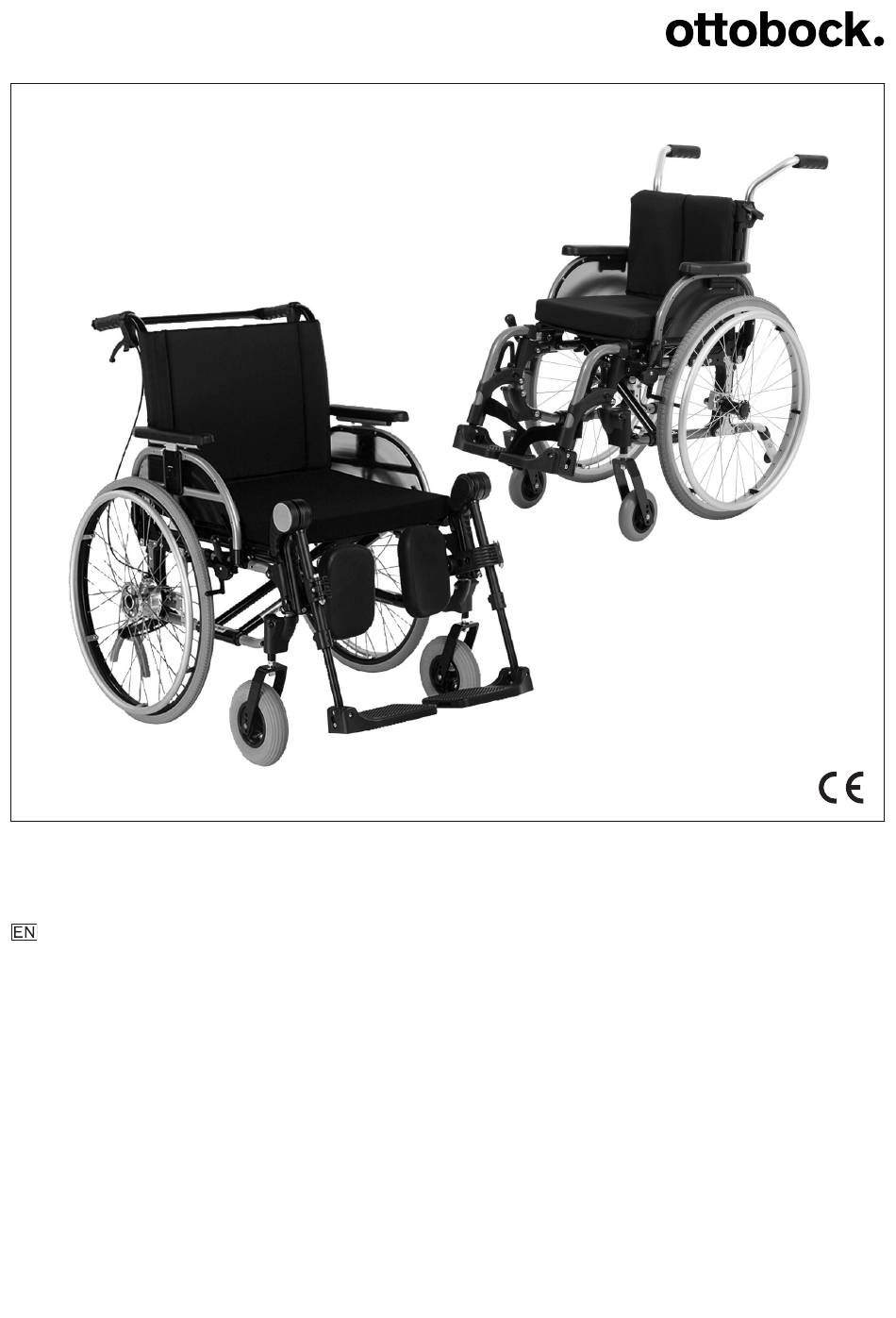

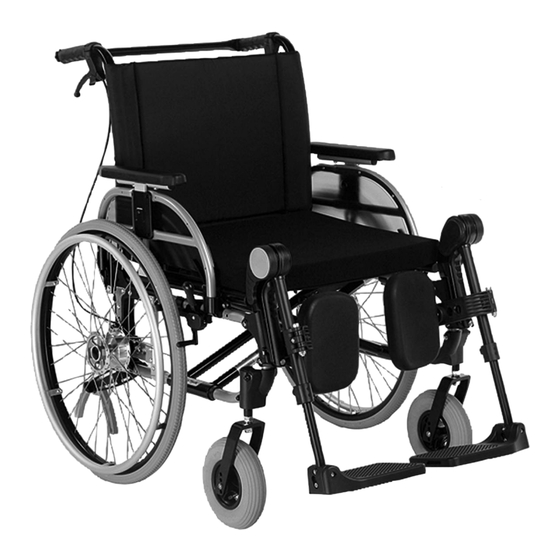

- Page 1 Start M4 XXL, Start M6 Junior Instructions for use (qualified personnel) ..............
- Page 2 Start M4 XXL, Start M6 Junior...
-
Page 3: Table Of Contents
Adjusting the swinging anti-tipper ......................6.12 Adjusting the lap belt ........................... 6.13 Installing and adjusting the head support ....................6.14 Adjusting the transport wheels ......................Delivery ................................Final inspection ..........................Transport to the customer ........................Start M4 XXL, Start M6 Junior... - Page 4 Information on re-use ........................... Legal information .............................. 10.1 Liability .............................. 10.2 Warranty ............................10.3 Service life ............................Technical data ..............................Appendices ................................ 12.1 Required tools ............................ 12.2 Torque values of the screw connections ....................Start M4 XXL, Start M6 Junior...
-
Page 5: Foreword
2.2 Indications, contraindications See the instructions for use (user) for more information about indications and contraindications. 2.3 Qualification Installation and adjustment tasks as well as repairs and inspections may only be carried out by qualified personnel. Start M4 XXL, Start M6 Junior... -
Page 6: Safety
► For a small wheelbase and a backrest that is tilted far back, an anti-tipper may need to be installed on both sides, depending upon the user's experience. ► Verify that the anti-tipper has been installed and adjusted properly. Find the appropriate position with the assistance of a helper. Start M4 XXL, Start M6 Junior... -
Page 7: Nameplate
YYYY = year of manufacture; MM = month of manufacture; DD = day of manufacture UDI-PI to GS1 standard; UDI = Unique Device Identifier, PI = Product Identifier UDI-DI to GS1 standard; UDI = Unique Device Identifier, DI = Device Identifier Start M4 XXL, Start M6 Junior... -
Page 8: Delivery
3) If necessary: Insert the leg supports into the attachment device. Fold the foot supports down. 4) If necessary: Pull the flap of the seat upholstery forwards and fasten tightly to the seat upholstery. 5) Fit the seat cushion. Start M4 XXL, Start M6 Junior... -
Page 9: Settings
However, this must always be approx. 90° and thus readjusted accordingly. The knee lever wheel lock also has to be readjusted. 6.2.1 Setting the drive wheels horizontally The horizontal position of the drive wheels can be changed. Start M4 XXL, Start M6 Junior... - Page 10 7) Check the depth setting. Both sides must be positioned exactly the same. Readjust if necessary. 8) If necessary: Readjust the height and alignment of the caster attachment device (see Page 13) as well as the brakes (see Page 14). Start M4 XXL, Start M6 Junior...
-
Page 11: Adjusting The Drive Wheels Vertically
6) Check the height setting. Once changed, the left and right drive wheel adapters must both have the same ver tical position in the frame. Readjust if necessary. 7) If necessary: Readjust the height and alignment of the caster attachment device (see Page 13) as well as the brakes (see Page 14). Start M4 XXL, Start M6 Junior... -
Page 12: Adjusting The Quick-Release Axle
1) Completely remove the tyre. 2) Loosen/remove the handrim screw connection from the rim (see fig. 7). 3) Tightly screw the handrims onto the rim in narrow or wide installation position. 4) Completely reinstall the tyre. Start M4 XXL, Start M6 Junior... -
Page 13: Adjusting The Caster Wheels
4) Insert the screw/threaded sleeve with the first spacer bushing offset in one of the 4 holes (see fig. 13, item 1). 5) Install the caster wheel. 6) Slide on the second spacer bushing (not pictured). 7) Tighten the screw/nut to 8 Nm. Start M4 XXL, Start M6 Junior... -
Page 14: Adjusting The Brakes
→ The wheel lock bolt must lock the drive wheel securely when stationary. 3) Tighten the Allen head screws to 16 Nm. → After adjustment, the left and right knee lever wheel locks must both have the same braking force. Start M4 XXL, Start M6 Junior... -
Page 15: Adjusting The Braking Force Of The Drum Brake
4) Mount all Allen head screws and tighten to 8 Nm. 5) Reattach the back support pad on the seat upholstery with hook-and-loop fasteners. 6) Secure the seat cushion against sliding by pressing it onto the hook-and-loop fastener. Start M4 XXL, Start M6 Junior... -
Page 16: Adjusting The Back Support
(see fig. 19). 4) Put on the back support pad and attach it to the hook-and-loop fastener on the back support upholstery. 5) Put on the seat cushion and secure it with the hook-and-loop fastener. Start M4 XXL, Start M6 Junior... -
Page 17: Adjusting The Seat Upholstery
→ “Elevating” leg support: see fig. 24 2) Adjust the foot plate bar to match the user’s lower leg length. INFORMATION: Ensure that the foot plate bar is inserted into the swivel segment by at least 40 mm (to the marking). Start M4 XXL, Start M6 Junior... -
Page 18: Adjusting The Support Angle
1) Loosen the upper clamping screw (see fig. 25, item 1). 2) Turn the foot support to the desired angle (see fig. 25, item 2). 3) Tighten the clamping screw to 9 Nm. “Elevating” leg support For additional information, see the instructions for use (user). Start M4 XXL, Start M6 Junior... -
Page 19: Adjusting The Posterior Lower Leg Pad Of The "Elevating" Leg Support
1) Pad angle: Loosen the three Allen head screws and turn the posterior lower leg pad to the desired angle (see fig. 29). Firmly re-tighten the Allen head screws. 2) Pad height: Loosen the Allen head screws on the clamp bracket and adjust the height (see fig. 30). Firmly re- tighten the Allen head screws. Start M4 XXL, Start M6 Junior... -
Page 20: Adjusting The Side Panels
2) Adjusting the depth of the forearm support: Loosen the mounting screws under the forearm support, move the forearm support and firmly re-tighten the mounting screws (see fig. 34, item 1). Start M4 XXL, Start M6 Junior... -
Page 21: Adjusting The Anti-Tipper
→ The distance between the anti-tipper rollers and the ground must be 50 mm max. (see fig. 36). → As a minimum, the anti-tipper rollers must project beyond the largest diameter of the rear wheel (see fig. 36). 3) Allow the spring button to engage. Start M4 XXL, Start M6 Junior... -
Page 22: Adjusting The Swinging Anti-Tipper
► Adjusting the belt system too loosely can cause the user to slide into a dangerous position. In addition, the fastening snaps could open unintentionally if they slide against hard parts of clothing (e.g. buttons). Start M4 XXL, Start M6 Junior... -
Page 23: Installing And Adjusting The Head Support
6) Position the stop on the adjustment tube and tighten (see fig. 38, item 4). 6.14 Adjusting the transport wheels Adjust the height so that the transport wheels are approx. 20 mm above the ground when the drive wheels are installed. Start M4 XXL, Start M6 Junior... -
Page 24: Delivery
The manufacturer will only assume liability if the product is used in accordance with the descriptions and instruc tions provided in this document. The manufacturer will not assume liability for damage caused by disregarding the information in this document, particularly due to improper use or unauthorised modification of the product. Start M4 XXL, Start M6 Junior... -
Page 25: Warranty
Varies according to tyre option; see the marking on the tyre wall. Three-point turn by 180°. Also applies for parking with wheel lock engaged. Applies to all directions (upwards, downwards, sidewards). In accordance with ISO 7176-1. Start M4 XXL, Start M6 Junior... - Page 26 Minimum value for 22" drive wheel size and non-height-adjustable push handles; maximum value for height- adjustable push handles. With standard back support tubes. With back support angle adjustment of 30°. With standard leg supports, value does not apply to angle-adjustable leg supports. Start M4 XXL, Start M6 Junior...
- Page 27 5" 5.5" 6" 7" 8" Short 400–440 420–440 430–450 450–470 Long 440–470 440–480 450–490 470–500 480–510 Front seat height [mm] – Start M6 Junior Caster fork Caster wheel size 5" 6" Short 400–440 430–450 Start M4 XXL, Start M6 Junior...
- Page 28 Specified without seat cushion at 0° seat inclination. The maximum possible seat inclination is 35 mm. Drive wheel adapter – Start M6 Junior (left); Start M4 XXL (right) Environmental conditions Temperatures and relative humidity Operating temperature [°C (°F)] -10 to +40 (14 to 104) Transport and storage temperature [°C (°F)] -10 to +40 (14 to 104) Start M4 XXL, Start M6 Junior...
-
Page 29: Appendices
12.2 Torque values of the screw connections Unless otherwise specified, screw connections are tightened with the following torque values: • Thread diameter M4: 3 Nm • Thread diameter M5: 5 Nm • Thread diameter M6: 10 Nm • Thread diameter M8: 25 Nm Start M4 XXL, Start M6 Junior... - Page 30 Start M4 XXL, Start M6 Junior...
