Otto Bock Start M1 Intro Service Manual page 15

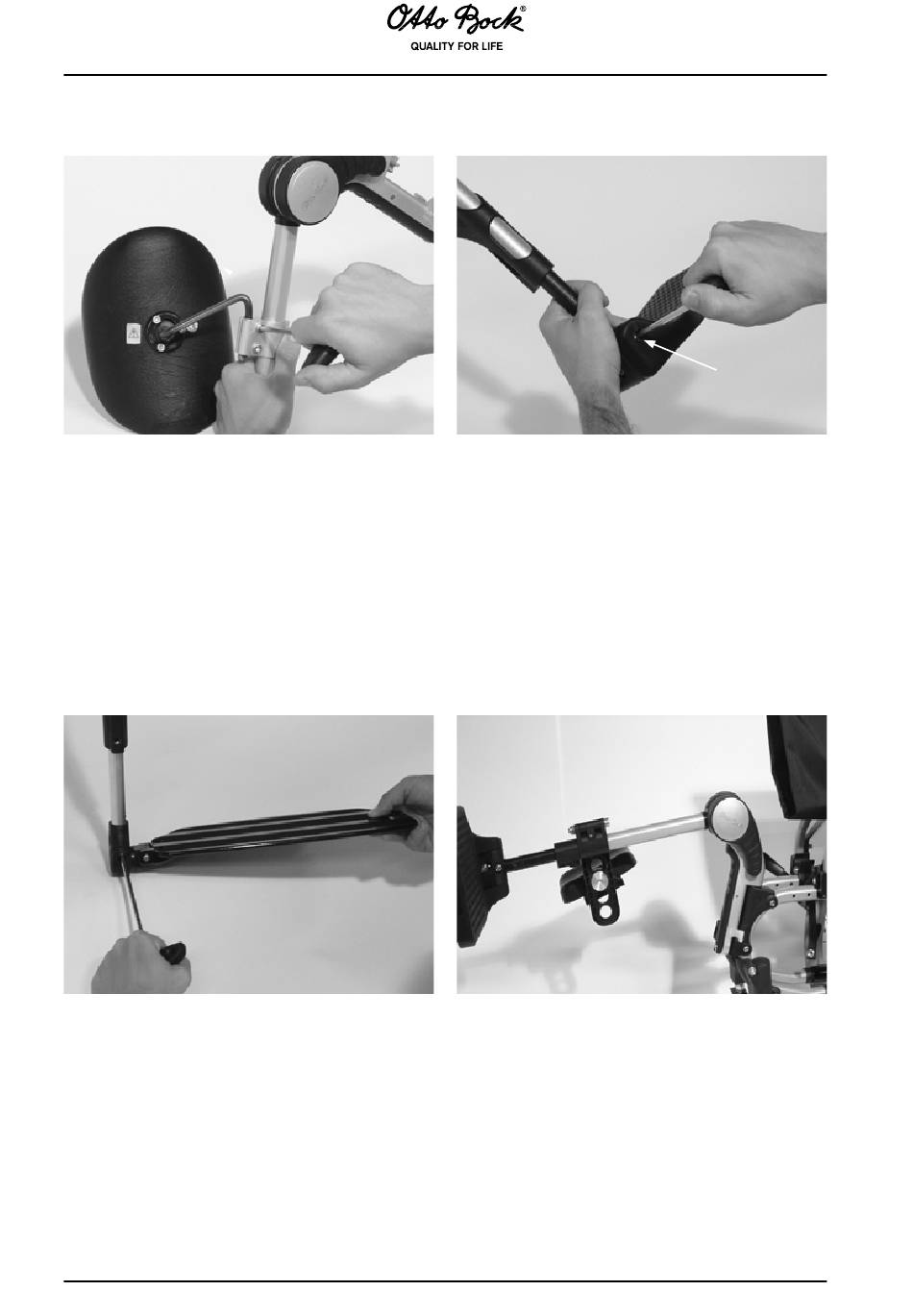

Replacing the pad of the amputation legrest
Loosen and remove the screws on the clamp piece
and remove the calf pad.
For reassembly, please proceed in reverse order.
The clamp connection can also be used to change the
pad's mounting height.
Replacing / Setting the aluminum footplates (M4)
After loosenging the screw connection the footplate
can be pulled off the support.
For reassembly, please proceed in reverse order.
4
Replacing the plastic footplates
Loosen and remove the screw and remove the foot-
plate.
In order to also remove the joint piece from the footrest
bar, the two screws on the outside must be loosened,
refer to "Adjusting the angle".
For reassembly, please proceed in reverse order.
Use new, self-locking screws and nuts.
Attaching an amputation legrest
The amputation legrest is inserted from above into the
footrest receiver in the place of a footrest.
For adjustment of the amputation legrest the same
angle adjustment system with lever release is used as
with the elevating footrest.
