6
DSC PREPARATION

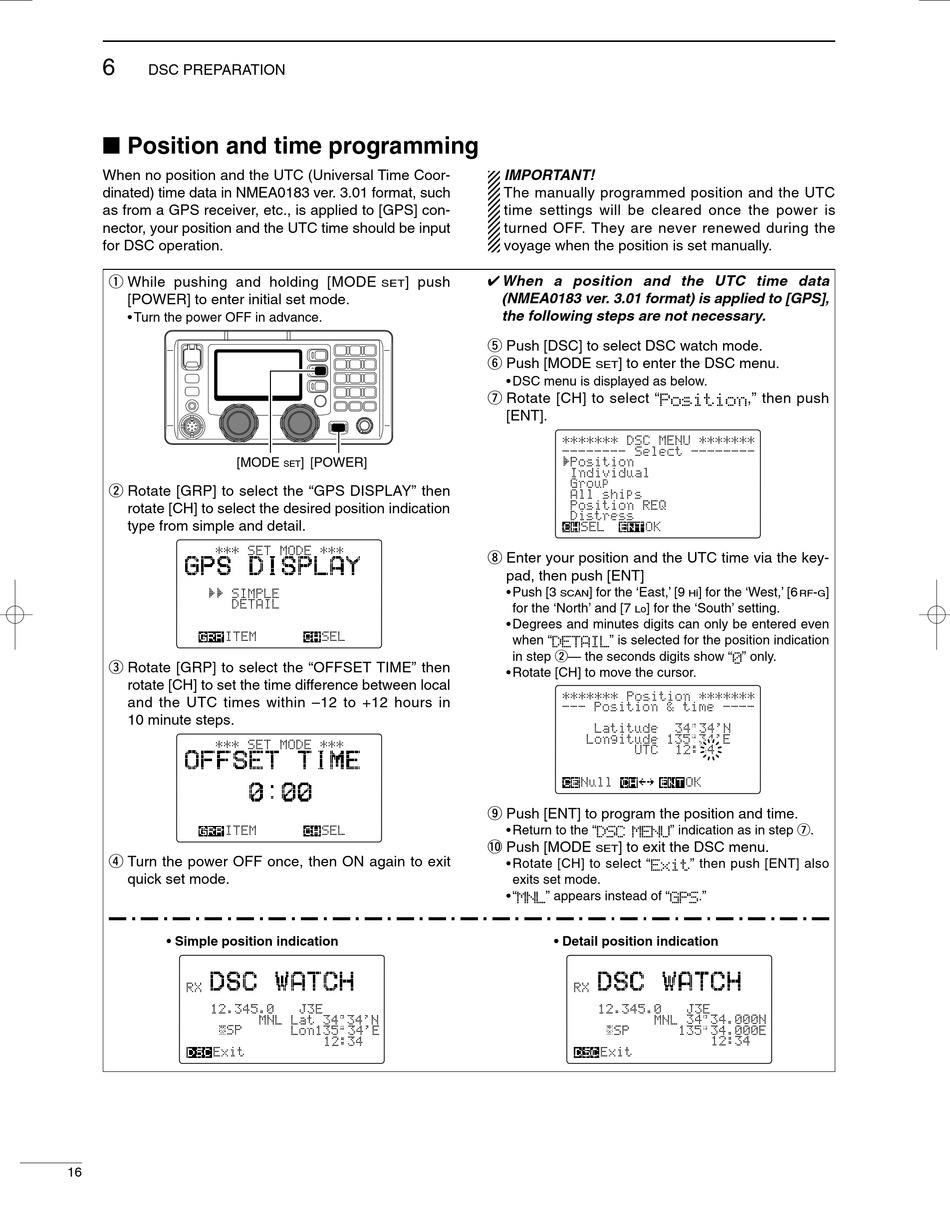

I Position and time programming

When no position and the UTC (Universal Time Coor-
dinated) time data in NMEA0183 ver. 3.01 format, such
as from a GPS receiver, etc., is applied to [GPS] con-
nector, your position and the UTC time should be input
for DSC operation.
q While pushing and holding [MODE
[POWER] to enter initial set mode.
• Turn the power OFF in advance.
w Rotate [GRP] to select the "GPS DISPLAY" then
rotate [CH] to select the desired position indication
type from simple and detail.
ÇÇ
e Rotate [GRP] to select the "OFFSET TIME" then
rotate [CH] to set the time difference between local
and the UTC times within –12 to +12 hours in
10 minute steps.
r Turn the power OFF once, then ON again to exit
quick set mode.
• Simple position indication
16
SET
[MODE ] [POWER]
SET
IMPORTANT!
The manually programmed position and the UTC
time settings will be cleared once the power is
turned OFF. They are never renewed during the
voyage when the position is set manually.
✔ When a position and the UTC time data
] push
(NMEA0183 ver. 3.01 format) is applied to [GPS],
the following steps are not necessary.
t Push [DSC] to select DSC watch mode.
y Push [MODE
• DSC menu is displayed as below.
u Rotate [CH] to select "
[ENT].
Ç
i Enter your position and the UTC time via the key-
pad, then push [ENT]
• Push [3
SCAN
for the 'North' and [7
• Degrees and minutes digits can only be entered even
when "
in step w— the seconds digits show " " only.
• Rotate [CH] to move the cursor.
o Push [ENT] to program the position and time.
• Return to the "
!0 Push [MODE
• Rotate [CH] to select "
exits set mode.
• " " appears instead of "
• Detail position indication
] to enter the DSC menu.
SET
," then push
] for the 'East,' [9 ] for the 'West,' [6
H i
] for the 'South' setting.
o
L
" is selected for the position indication
" indication as in step u.
] to exit the DSC menu.
SET
" then push [ENT] also
."
- ]
RF G
