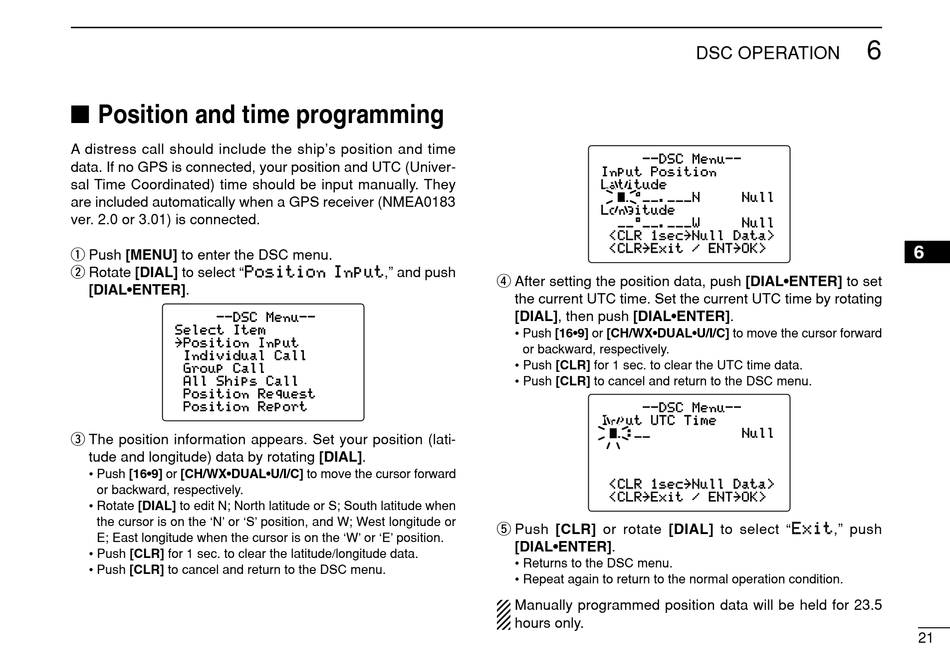

I Position and time programming

A distress call should include the ship's position and time
data. If no GPS is connected, your position and UTC (Univer-
sal Time Coordinated) time should be input manually. They
are included automatically when a GPS receiver (NMEA0183
ver. 2.0 or 3.01) is connected.
q Push [MENU] to enter the DSC menu.
w Rotate [DIAL] to select "P P o o s s i i t t i i o o n n I I n n p p u u t t ," and push
[DIAL•ENTER].
--DSC Menu--
Select Item
˘ Position Input
Individual Call
Group Call
All Ships Call
Position Request
Position Report
e The position information appears. Set your position (lati-
tude and longitude) data by rotating [DIAL].
• Push [16•9] or [CH/WX•DUAL•U/I/C] to move the cursor forward
or backward, respectively.
• Rotate [DIAL] to edit N; North latitude or S; South latitude when
the cursor is on the 'N' or 'S' position, and W; West longitude or
E; East longitude when the cursor is on the 'W' or 'E' position.
• Push [CLR] for 1 sec. to clear the latitude/longitude data.
• Push [CLR] to cancel and return to the DSC menu.
--DSC Menu--
Input Position
Latitude
__°__.___N
Longitude
__°__.___W
<CLR 1sec <CLR 1sec˘Null
<CLR <CLR ˘Exit Exit / ENT
r After setting the position data, push [DIAL•ENTER] to set
the current UTC time. Set the current UTC time by rotating
[DIAL], then push [DIAL•ENTER].
• Push [16•9] or [CH/WX•DUAL•U/I/C] to move the cursor forward
or backward, respectively.
• Push [CLR] for 1 sec. to clear the UTC time data.
• Push [CLR] to cancel and return to the DSC menu.
--DSC Menu--
Input UTC Time
__:__
<CLR <CLR 1sec 1sec˘Null
<CLR ˘Exit <CLR Exit / ENT
t Push [CLR] or rotate [DIAL] to select "E E x x i i t t ," push
[DIAL•ENTER].
• Returns to the DSC menu.
• Repeat again to return to the normal operation condition.
Manually programmed position data will be held for 23.5
hours only.
6
DSC OPERATION
Null
Null
Null Data> Data>
ENT˘OK> OK>
Null
Null Data> Data>
ENT˘OK> OK>
6
21
