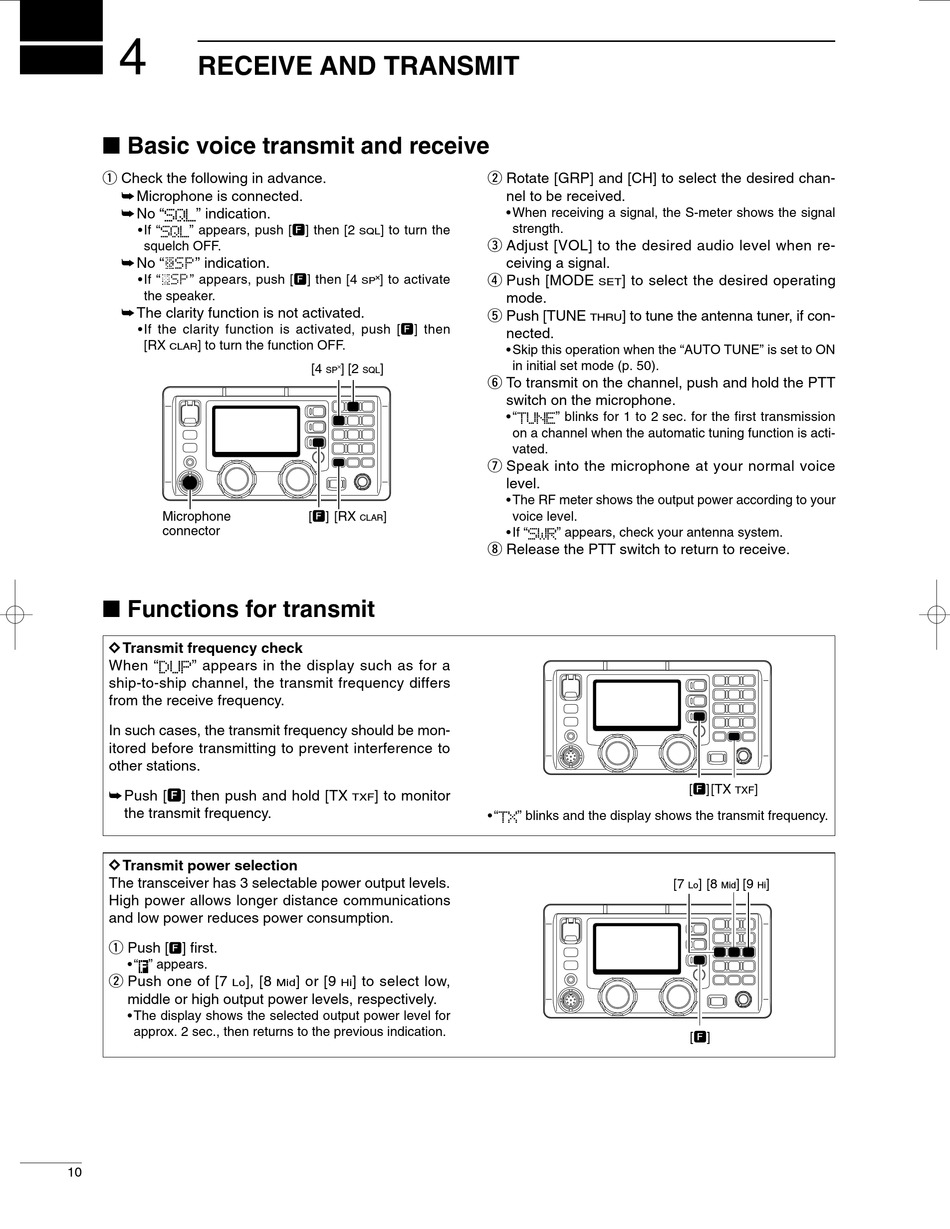

RECEIVE AND TRANSMIT

I Basic voice transmit and receive

q Check the following in advance.
➥ Microphone is connected.
➥ No "
" indication.
• If " " appears, push [F] then [2
squelch OFF.
➥ No "
" indication.
• If " " appears, push [F] then [4
the speaker.
➥ The clarity function is not activated.
• If the clarity function is activated, push [F] then
[RX ] to turn the function OFF.
CLAR
Microphone
connector

I Functions for transmit

D D Transmit frequency check
When " " appears in the display such as for a
ship-to-ship channel, the transmit frequency differs
from the receive frequency.
In such cases, the transmit frequency should be mon-
itored before transmitting to prevent interference to
other stations.
➥ Push [F] then push and hold [TX
the transmit frequency.
D D Transmit power selection
The transceiver has 3 selectable power output levels.
High power allows longer distance communications
and low power reduces power consumption.
q Push [
F
] first.
• " " appears.
w Push one of [7
middle or high output power levels, respectively.
• The display shows the selected output power level for
approx. 2 sec., then returns to the previous indication.
10
] to turn the
SQL
× ×
] to activate
SP
[4 × ] [2 ]
SP SQL
[F] [RX ]
CLAR
] to monitor
TXF
], [8 ] or [9 ] to select low,
Lo Mid Hi
w Rotate [GRP] and [CH] to select the desired chan-
nel to be received.
• When receiving a signal, the S-meter shows the signal
strength.
e Adjust [VOL] to the desired audio level when re-
ceiving a signal.
r Push [MODE
] to select the desired operating
SET
mode.
t Push [TUNE
] to tune the antenna tuner, if con-
THRU
nected.
• Skip this operation when the "AUTO TUNE" is set to ON
in initial set mode (p. 50).
y To transmit on the channel, push and hold the PTT
switch on the microphone.
• " " blinks for 1 to 2 sec. for the first transmission
on a channel when the automatic tuning function is acti-
vated.
u Speak into the microphone at your normal voice
level.
• The RF meter shows the output power according to your
voice level.
• If " " appears, check your antenna system.
i Release the PTT switch to return to receive.
• " " blinks and the display shows the transmit frequency.
[F] [TX ]
TXF
[7 ] [8 ] [9 ]
Lo Mid Hi
[F]
