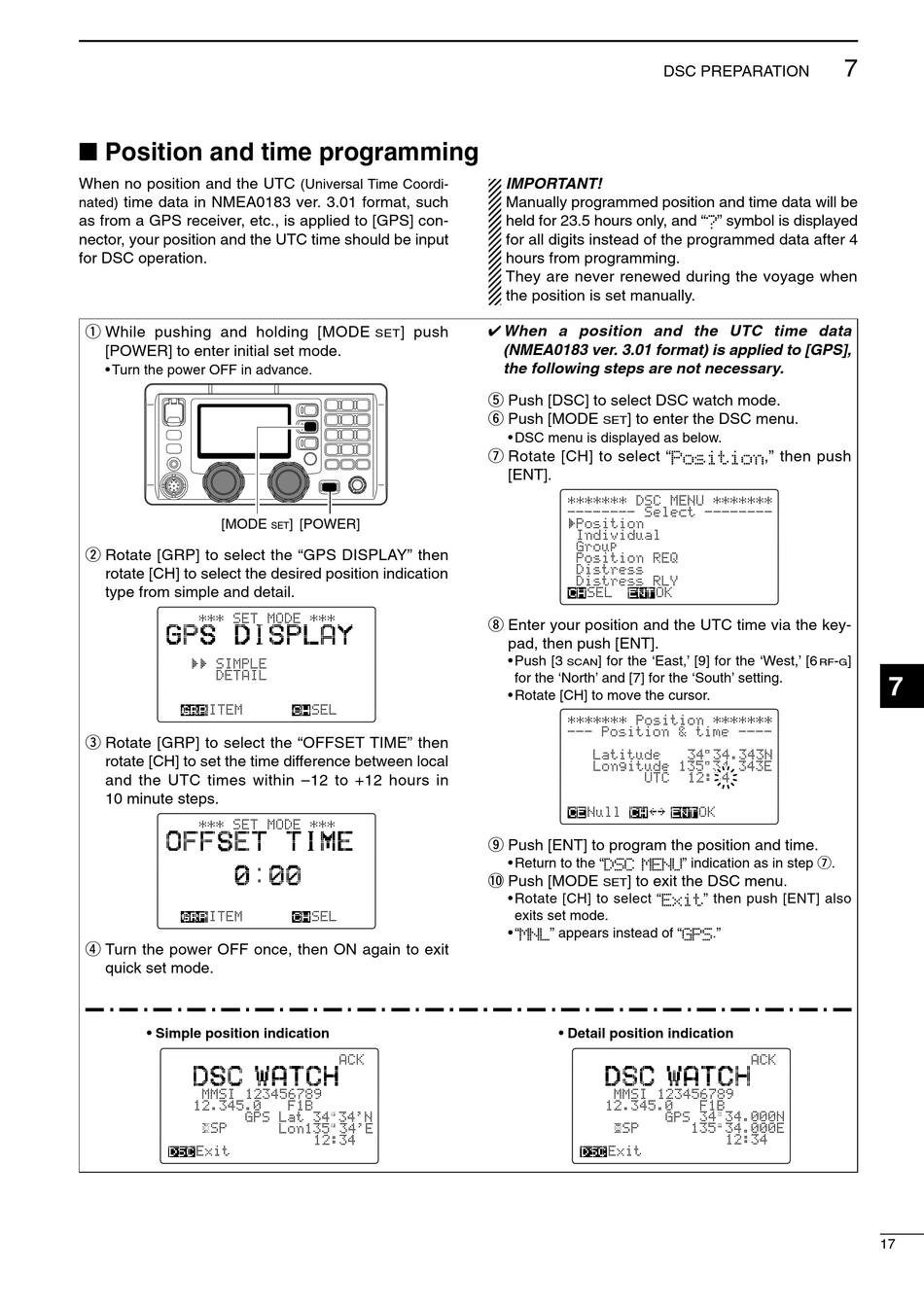

I Position and time programming

When no position and the UTC
time data in NMEA0183 ver. 3.01 format, such
nated)
as from a GPS receiver, etc., is applied to [GPS] con-
nector, your position and the UTC time should be input
for DSC operation.
q While pushing and holding [MODE
[POWER] to enter initial set mode.
• Turn the power OFF in advance.
[MODE
w Rotate [GRP] to select the "GPS DISPLAY" then
rotate [CH] to select the desired position indication
type from simple and detail.
* * * S E T M O D E * * *
ÇÇ
S I M P L E
D E T A I L
I T E M
e Rotate [GRP] to select the "OFFSET TIME" then
rotate [CH] to set the time difference between local
and the UTC times within –12 to +12 hours in
10 minute steps.
* * * S E T M O D E * * *
I T E M
r Turn the power OFF once, then ON again to exit
quick set mode.
• Simple position indication
M M S I 1 2 3 4 5 6 7 8 9
1 2 . 3 4 5 . 0
G P S
S P
E x i t
(Universal Time Coordi-
] push
SET
] [POWER]
SET
S E L
S E L
A C K
F 1 B
L a t 3 4 3 4 ' N
L o n 1 3 5 3 4 ' E
1 2 : 3 4
IMPORTANT!
Manually programmed position and time data will be
held for 23.5 hours only, and "?" symbol is displayed
for all digits instead of the programmed data after 4
hours from programming.
They are never renewed during the voyage when
the position is set manually.
✔ When a position and the UTC time data
(NMEA0183 ver. 3.01 format) is applied to [GPS],
the following steps are not necessary.
t Push [DSC] to select DSC watch mode.
y Push [MODE
] to enter the DSC menu.
SET
• DSC menu is displayed as below.
u Rotate [CH] to select "Position," then push
[ENT].
* * * * * * * D S C M E N U * * * * * * *
- - - - - - - - S e l e c t - - - - - - - -
Ç
P o s i t i o n
I n d i v i d u a l
G r o u p
P o s i t i o n R E Q
D i s t r e s s
D i s t r e s s R L Y
S E L O K
i Enter your position and the UTC time via the key-
pad, then push [ENT].
• Push [3 ] for the 'East,' [9] for the 'West,' [6
SCAN
for the 'North' and [7] for the 'South' setting.
• Rotate [CH] to move the cursor.
* * * * * * * P o s i t i o n * * * * * * *
- - - P o s i t i o n & t i m e - - - -
L a t i t u d e
L o n g i t u d e
U T C
N u l l
o Push [ENT] to program the position and time.
• Return to the "DSC MENU" indication as in step u.
!0 Push [MODE
] to exit the DSC menu.
SET
• Rotate [CH] to select "Exit" then push [ENT] also
exits set mode.
• "MNL" appears instead of "GPS."
• Detail position indication
M M S I 1 2 3 4 5 6 7 8 9
1 2 . 3 4 5 . 0
S P
E x i t
