ZYNQ FPGA Development Board AC7021B User Manual
l
The hardware connection of DDR3 DRAM is shown in Figure 3-1:

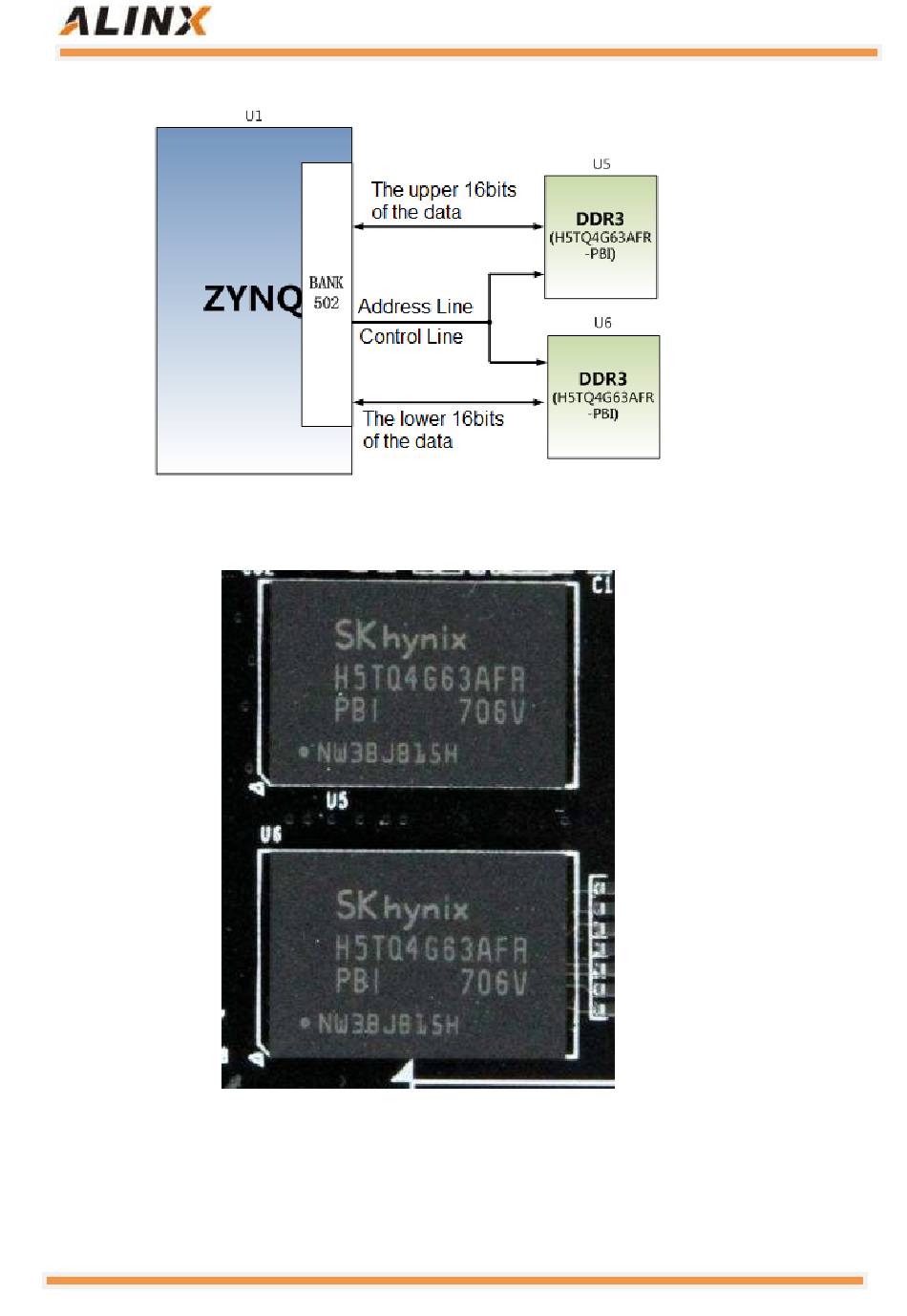

Figure 3-1: The Schematic part of DDR3 DRAM
Figure 3-2: DDR3 DRAM on the Core Board
9 / 30
