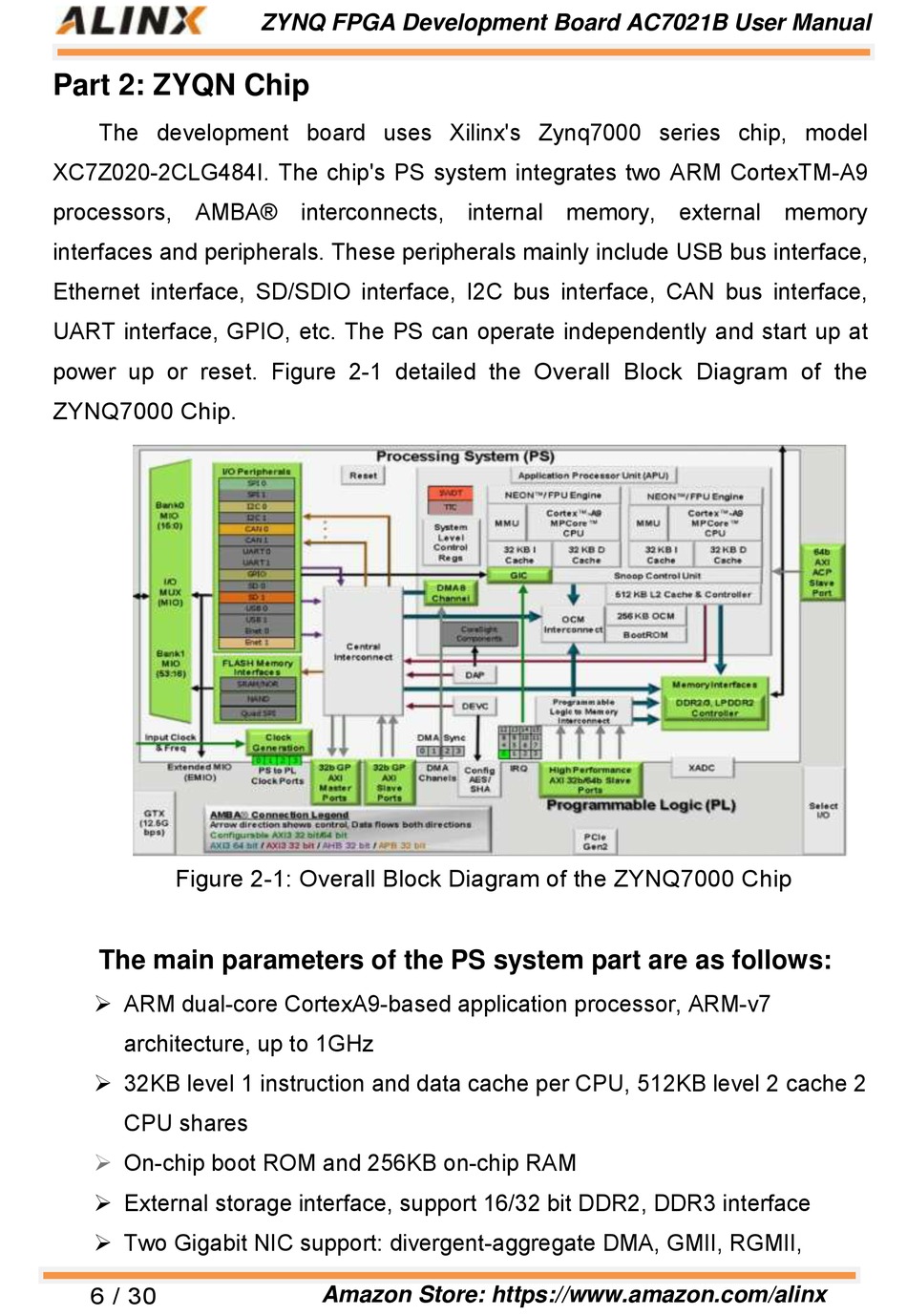

Part 2: ZYQN Chip

The development board uses Xilinx's Zynq7000 series chip, model
XC7Z020-2CLG484I. The chip's PS system integrates two ARM CortexTM-A9
processors, AMBA® interconnects, internal memory, external memory
interfaces and peripherals. These peripherals mainly include USB bus interface,
Ethernet interface, SD/SDIO interface, I2C bus interface, CAN bus interface,
UART interface, GPIO, etc. The PS can operate independently and start up at
power up or reset. Figure 2-1 detailed the Overall Block Diagram of the
ZYNQ7000 Chip.
Figure 2-1: Overall Block Diagram of the ZYNQ7000 Chip
The main parameters of the PS system part are as follows:
 ARM dual-core CortexA9-based application processor, ARM-v7
architecture, up to 1GHz
 32KB level 1 instruction and data cache per CPU, 512KB level 2 cache 2
CPU shares
On-chip boot ROM and 256KB on-chip RAM

 External storage interface, support 16/32 bit DDR2, DDR3 interface
 Two Gigabit NIC support: divergent-aggregate DMA, GMII, RGMII,
6 / 30
