4. Replace the module and mount it. Leave the protective debris strip in

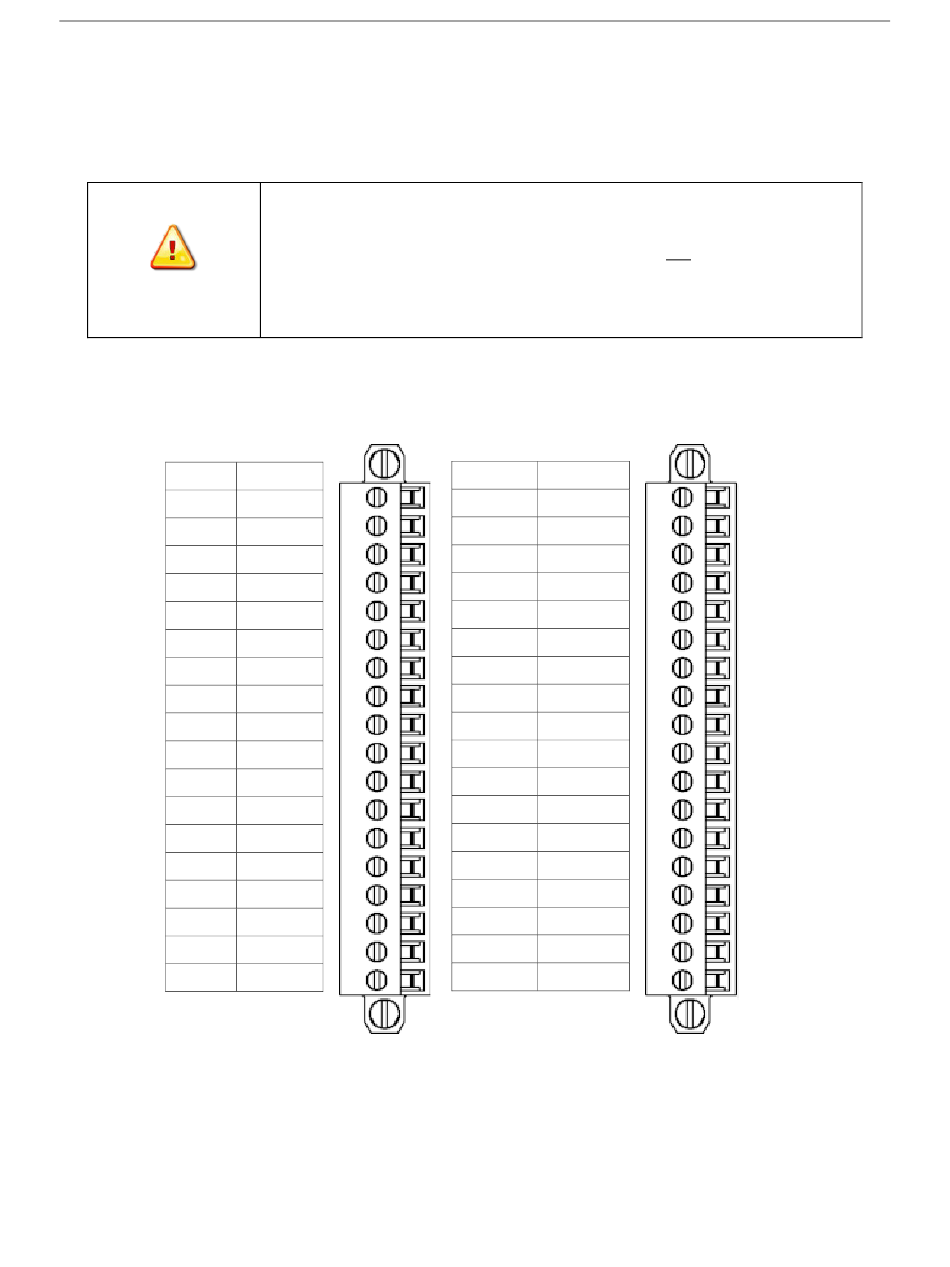

Wiring Diagram
Hazard of damage to the terminal connector.
WARNING
The Spectrum Controls RTB hold down and terminal screws must be
tightened by hand using the guidelines. They must not be tightened using a
power tool. Use a screwdriver of 0.8 × 2 mm and tighten to no more than
0.25 N-m (2.2 lb-in) torque.
Failure to follow these guidelines may result in damage to your connector.
Wire the module using the following images, which explain the layout of the
double-row, 36-pin terminal block, and the two, 24 VDC field power terminal
pins for the Micro800 Expansion I/O 2085-OX32-SC modules:
RTB1#
Name
1
Out-0
2
Out-1
3
Out-2
4
Out-3
5
Out-4
6
Out-5
7
Out-6
8
Out-7
9
GND0
10
GND1
11
Out-16
12
Out-17
13
Out-18
14
Out-19
15
Out-20
16
Out-21
17
Out-22
18
Out-23
place until you are finished wiring the module, and any other devices.
RTB2#
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
Chapter 2: Installation and Wiring
Name
Out-8
Out-9
Out-10
Out-11
Out-12
Out-13
Out-14
Out-15
PWR0
PWR1
Out-24
Out-25
Out-26
Out-27
Out-28
Out-29
Out-30
Out-31
User's Manual Pub. 0300309-01 Rev. B
2-7
