Edp (Embedded Display Port Connector) - GIGAIPC mITX-H310A User Manual

2.2.4
6

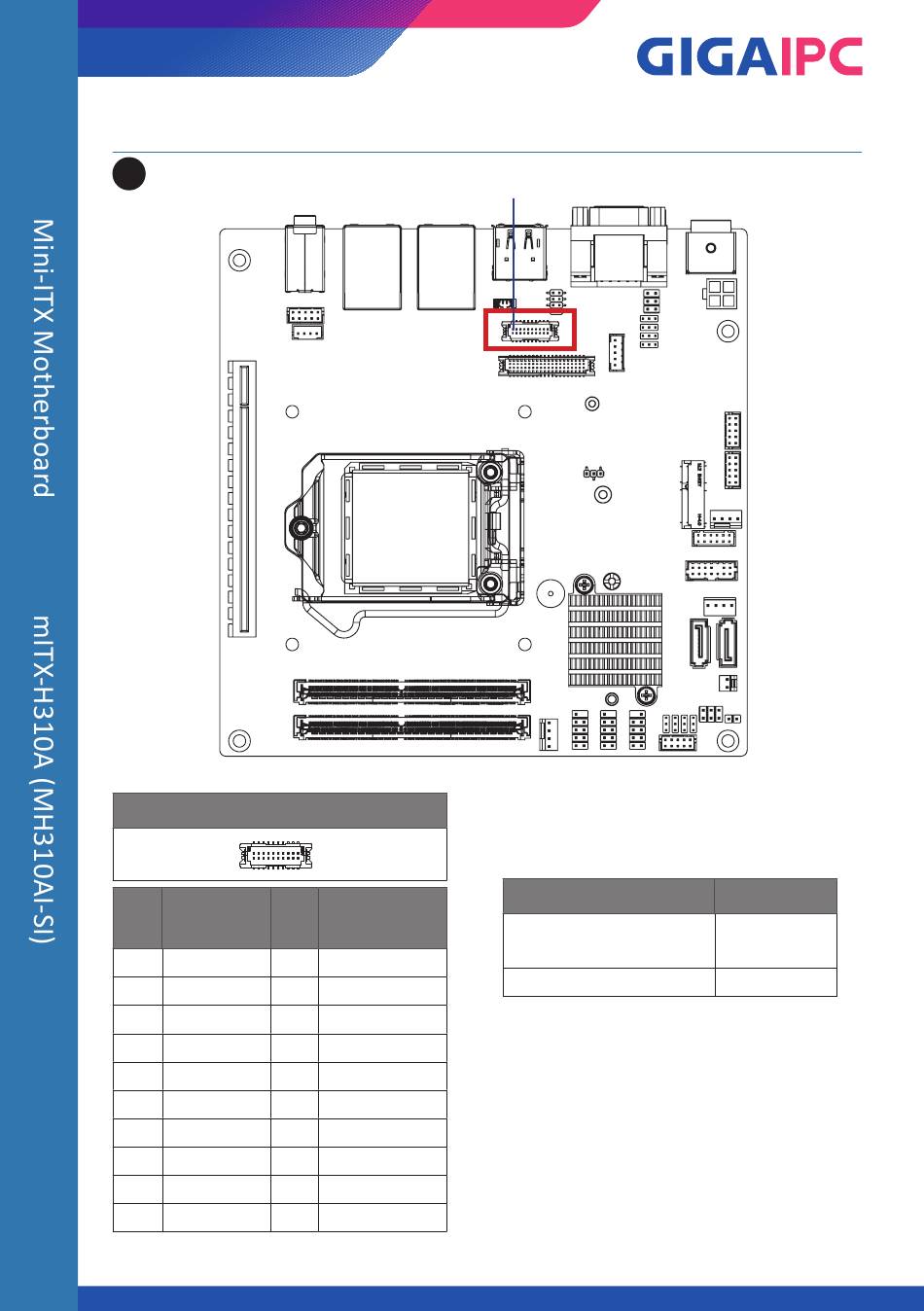

Embedded Display Port connector
Pin Definition Pin
No.
1 GND
2 GND
3 eDP_0-
4 eDP_3-
5 eDP_0+
6 eDP_3+
7 GND
8 eDPSW *
9 eDP_1-
10 GND
25
www.gigaipc.com

EDP (Embedded Display Port Connector)

1 19
2 20
Definition
No.
11 eDP_1+
12 eDPAUX-
13 GND
14 eDPAUX+
15 eDP_2-
16 GND
17 eDP_2+
18 HDP
19 5V
20 3.3V
Pin 1
Note: * Please ensure pin 8 is
connected to Ground.
Connector PN
A1252WV-SF-
2X10PN6BG1G00L
50286-02071-001
Vendor
JOINT-TECH
ACES
