2.2.5

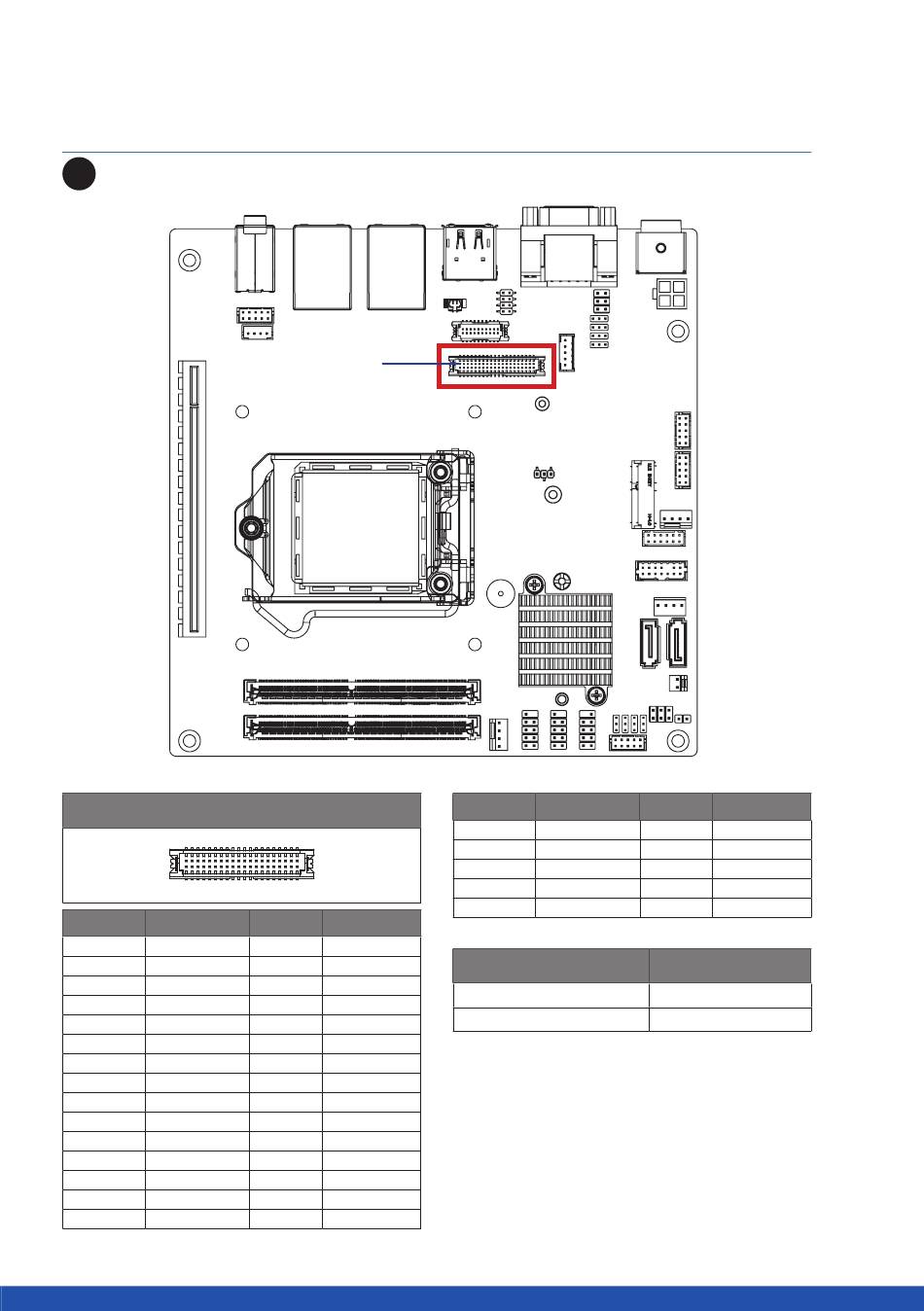

LVDS (LVDS connector)
7
LVDS Connector
1
2
Pin No.
Definition
1
3.3V
2
5V
3
3.3V
4
5V
5
SPEC0
6
SPED0
7
GND
8
GND
9
A1+
10
A0+
11
A1-
12
A0-
13
GND
14
GND
15
A3+
Pin 1
39
40
Pin No.
Definition
21
A5+
22
A4+
23
A5-
24
A4-
25
GND
26
GND
27
A7+
28
A6+
29
A7-
30
A6-
31
GND
32
GND
33
CLK2+
34
CLK1+
35
CLK2-
Pin No.
Definition
16
A2+
17
A3-
18
A2-
19
GND
20
GND
Connector PN
712-76-40GWE0
A1252WV-SF-2X20PD01
For each model support LVDS function.
But below model no need to add.
A0~A3 is odd channel 0~3, A4~A7 is even channel.
Note: *The LVDS output connector of the unit is
only intended to be connected to an UL/IEC/EN
approval equipment with fire enclosure.
Pin No.
Definition
36
CLK1-
37
GND
38
GND
39
12V
40
12V
Vendor
PINREX
JOINT-TECH
www.gigaipc.com
26
