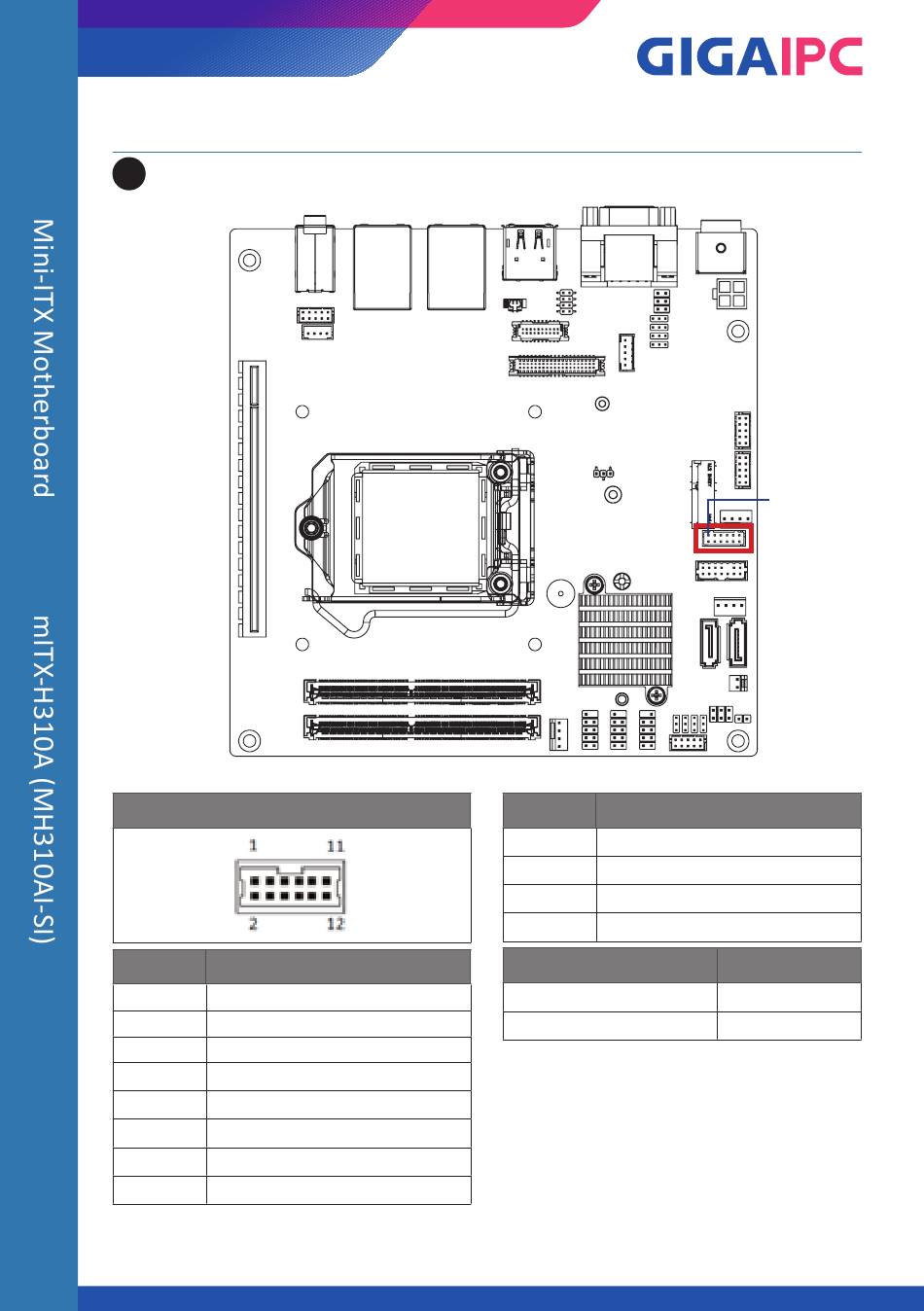

2.2.14 GPIO_CNT (General Purpose input/output header)
17
Pin No.
1
2
3
4
5
6
7
8
35
www.gigaipc.com
GPIO Connector
Definition
GPO1
GPI1
GPO2
GPI2
GPO3
GPI3
GPO4
GPI4
Pin No.
Definition
9
SMB_CLK
10
SMB_DATA
11
12
Connector PN
725-81-12TW00
A2004WV-2X06P46
Pin 1
5V
GND
Vendor
PINREX
JOINT-TECH
