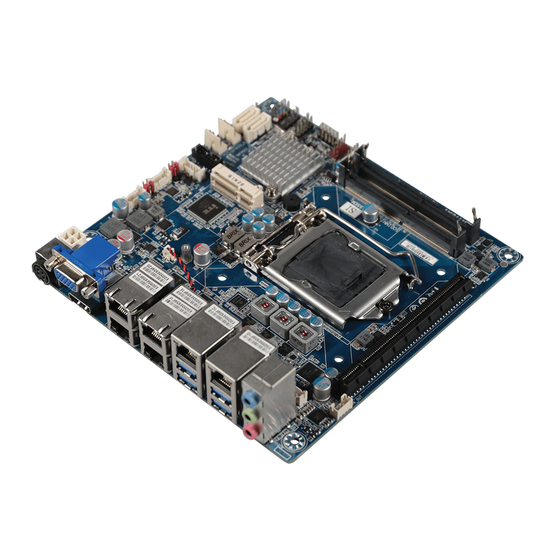

Page 1: Mini-Itx Motherboard - Mitx-H110B
Mini-ITX Motherboard – mITX-H110B User’s Manual 1st Ed www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
Before setting up your product, please make sure the following items have been shipped: Item Quantity mITX-H110B MB SATA power cable I/O Bracket If any of these items are missing or damaged, please contact your distributor or sales representative immediately. -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: China Rohs Requirements (Cn)
China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 GIGAIPC Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 及其电 ○ ○ ○ ○ ○ ○ 子组件 外部信号 连接器 ○ ○ ○ ○... -
Page 10: China Rohs Requirement (En)
China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products GIGAIPC Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Component Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &... -
Page 11: Table Of Contents
Table Contents Mini-ITX Motherboard – mITX-H110B User’s Manual 1st Ed Copyright Notice ................2 Acknowledgement ............... 3 Packing List ................... 4 About this Document ..............5 Safety Precautions ............... 6 FCC Statement ................8 China RoHS Requirements (CN) ............ 9 China RoHS Requirement (EN) ........... - Page 12 2.2.18 SPK_OUT (Speaker out Connector) ......38 2.2.19 SYS_FAN (System Fan Connector) ........ 39 2.2.20 SYS_PANEL (Front Panel Header) ........ 40 2.2.21 TPM_LPC (Trusted Platform Module Connector) ..41 2.2.22 M2_M (M.2 Slot, M-Key, SATA 6Gb/s & PCIe, Supports NGFF-2280/2242 Card) ..........42 www.gigaipc.com...
-
Page 13: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 – Product Specifications www.gigaipc.com... - Page 14 www.gigaipc.com...
-
Page 15: Specifications
Specifications Motherboard mITX-H110B Support for 6/7th Generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium®processors/Intel® Celeron® processors in the LGA1151 package TDP under 65W L3 cache varies with CPU Socket 1 x LGA 1151 Chipset Intel®... - Page 16 Motherboard mITX-H110B 3 x Audio jacks (Line in, Line out, Mic in) 1 x HDMI 1 x D-Sub Rear I/O 6 x RJ45 4 x USB3.0 1 x DC Jack (+12V/+19V/+24Vdc) TPM Header 1 x TPM Header Windows 10 (x64)
-
Page 17: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com... -
Page 18: Jumpers And Connectors
2.1.1 Jumpers and Connectors 6 28 12 11 www.gigaipc.com... - Page 19 Default COM2 is RI pin, can select RI/5V/12V mSATA Connector Mini PCIe Slot M.2 slot 2422/2880 storage SATA PCIE16X PCIE x16 slot SATAIII_0 SATA 6Gb/s connector SATAIII_1 SATA 6Gb/s connector SATAPW_1 SATA 6Gb/s power connector SATAPW_2 SATA 6Gb/s power connector www.gigaipc.com...
-
Page 20: I/O
M.2 Slot, M-Key, SATA 6Gb/s & PCIe, Supports M2_M NGFF-2280 Card 2.1.2 Code Description DC_IN DC In Jack VGA D-sub port GbE LAN port Line-in Line-in Port Line-out Line-out Port Mic-in Mic-in Port USB30 USB 3.0 ports HDMI HDMI port www.gigaipc.com... -
Page 21: At_Cn (At/Atx Power Mode Select Jumper)
AT_CN (AT/ATX power mode select jumper) Pin 1 AT/ATX power mode select jumper Connector PN Vendor PH03N33BAAA00 HORNGTONG Pin No. Definition AT MODE Detect ATX MODE Jumper setting 1-2 Close : AT mode. 2-3 Close : ATX mode.(Default setting) www.gigaipc.com... -
Page 22: Battery
2.2.2 Battery Pin 1 Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V www.gigaipc.com... -
Page 23: Clr_Cmos
2.2.3 CLR_CMOS Pin 1 Clear COMS Jumper Connector PN Vendor 210-91-02GB01 PINREX PH02R23BAZ000 HORNGTONG Pin No. Definition Clear CMOS Open: Normal Operation (Default setting) Close: Clear COMS data. www.gigaipc.com... -
Page 24: Cpu_Fan (Cpu Fan Connector)
2.2.4 CPU_FAN (CPU fan connector) Pin 1 CPU FAN Connector PN Vendor 744-81-045W11 PINREX WF04R22WJQ195 HORNGTONG Pin No. Definition Detect Speed Control www.gigaipc.com... -
Page 25: Dc_In (Dc In Jack Connector)
2.2.5 DC_IN (DC In JACK Connector) DC JACK Connector Connector PN Vendor 2MJ-3422A1I0 SINGATRON Note: *Connect only to a properly wired and ground outlet. www.gigaipc.com... -
Page 26: Dc_In2 (Atx 2X2 Pin Power Connector)
2.2.6 DC_IN2 (ATX 2x2 pin power connector) Pin 1 Power Connector Connector PN Vendor 740-81-04TW56 PINREX 25104A0400B3-93LF ATRC Note: *Connect only to a properly wired and ground outlet. Pin No. Definition +12V +12V www.gigaipc.com... -
Page 27: F_Audio (Front Audio Header)
2.2.7 F_Audio (Front audio header) Pin 1 Front Audio Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition MIC_L MIC_R No Connect Detect HPOUT_L HPOUT_R www.gigaipc.com... -
Page 28: F_Usb 20_1 (Usb 2.0 Header)
2.2.8 F_USB 20_1 (USB 2.0 header) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com... -
Page 29: F_Usb 20_2 (Usb 2.0 Header)
2.2.9 F_USB 20_2 (USB 2.0 header) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com... -
Page 30: F_Usb 20_3 (Usb 2.0 Header)
2.2.10 F_USB 20_3 (USB 2.0 header) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin www.gigaipc.com... -
Page 31: 2.2.11 Gpio_Cnt
2.2.11 GPIO_CNT Pin 1 GPIO Connector Pin No. Definition SMB_CLK SMB_DATA Connector PN Vendor Pin No. Definition 725-81-12TW00 PINREX GPO1 GPI1 A2004WV-2X06P46 JOINT-TECH GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 www.gigaipc.com... -
Page 32: Com1 (Serial Port Header)
2.2.12 COM1 (Serial Port header) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition No Connect RI/ 5V/ 12V www.gigaipc.com... - Page 33 2.2.13 JCOM11 (Default COM1 is RI pin, can select RI/5V/12V) Pin 1 JCOM11 Jummper Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM) 5-6 Close: 12V (Power COM) www.gigaipc.com...
-
Page 34: Com2 (Serial Port Header)
2.2.14 COM2 (Serial Port header) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition No Connect RI/ 5V/ 12V www.gigaipc.com... - Page 35 2.2.15 JCOM21 (Default COM2 is RI pin, can select RI/5V/12V) Pin 1 JCOM21 Jummper Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM) 5-6 Close: 12V (Power COM) www.gigaipc.com...
-
Page 36: Sataiii_0, Sataiii_1 (Sata 6Gb/S Connector)
2.2.16 SATAIII_0, SATAIII_1 (SATA 6Gb/s Connector) 21 22 SATA Connector SATAIII_1,SATAIII_0 Connector PN Vendor WATM-07ABNB2BAUW3 WINWIN 770-83-07SW19 PINREX Pin No. Definition www.gigaipc.com... -
Page 37: Satapw_1, Satapw_2 (Sata 6Gb/S Power Connector)
2.2.17 SATAPW_1, SATAPW_ 2 (SATA 6Gb/s Power Connector) 23 24 Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition www.gigaipc.com... -
Page 38: Spk_Out (Speaker Out Connector)
2.2.18 SPK_OUT (Speaker out Connector) Pin 1 Audio Amplifie Connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com... -
Page 39: Sys_Fan (System Fan Connector)
2.2.19 SYS_FAN (System Fan Connector) Pin 1 System FAN Connector PN Vendor 744-81-045R11 PINREX WF04R22RJQ105 HORNGTONG Pin No. Definition Detect Speed Control www.gigaipc.com... -
Page 40: Sys_Panel (Front Panel Header)
2.2.20 SYS_PANEL (Front Panel Header) Pin 1 System Panel Header Connector PN Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com... -
Page 41: Tpm_Lpc (Trusted Platform Module Connector)
2.2.21 TPM_LPC (Trusted Platform Module Connector) Pin 1 TPM Module Connector Pin No. Definition LAD3 LFRAME Pin No. Definition LPCCLK Connector PN Vendor 3VDUAL 52M-90-14GBE7 PINREX PFM RST VCC3 LAD0 IRQ_SERIAL LAD1 TPM_DET LAD2 www.gigaipc.com... -
Page 42: M2_M (M.2 Slot, M-Key, Sata 6Gb/S & Pcie, Supports Ngff-2280/2242 Card)
2.2.22 M2_M (M.2 Slot, M-Key, SATA 6Gb/s & PCIe, Supports NGFF-2280/2242 Card) www.gigaipc.com...
