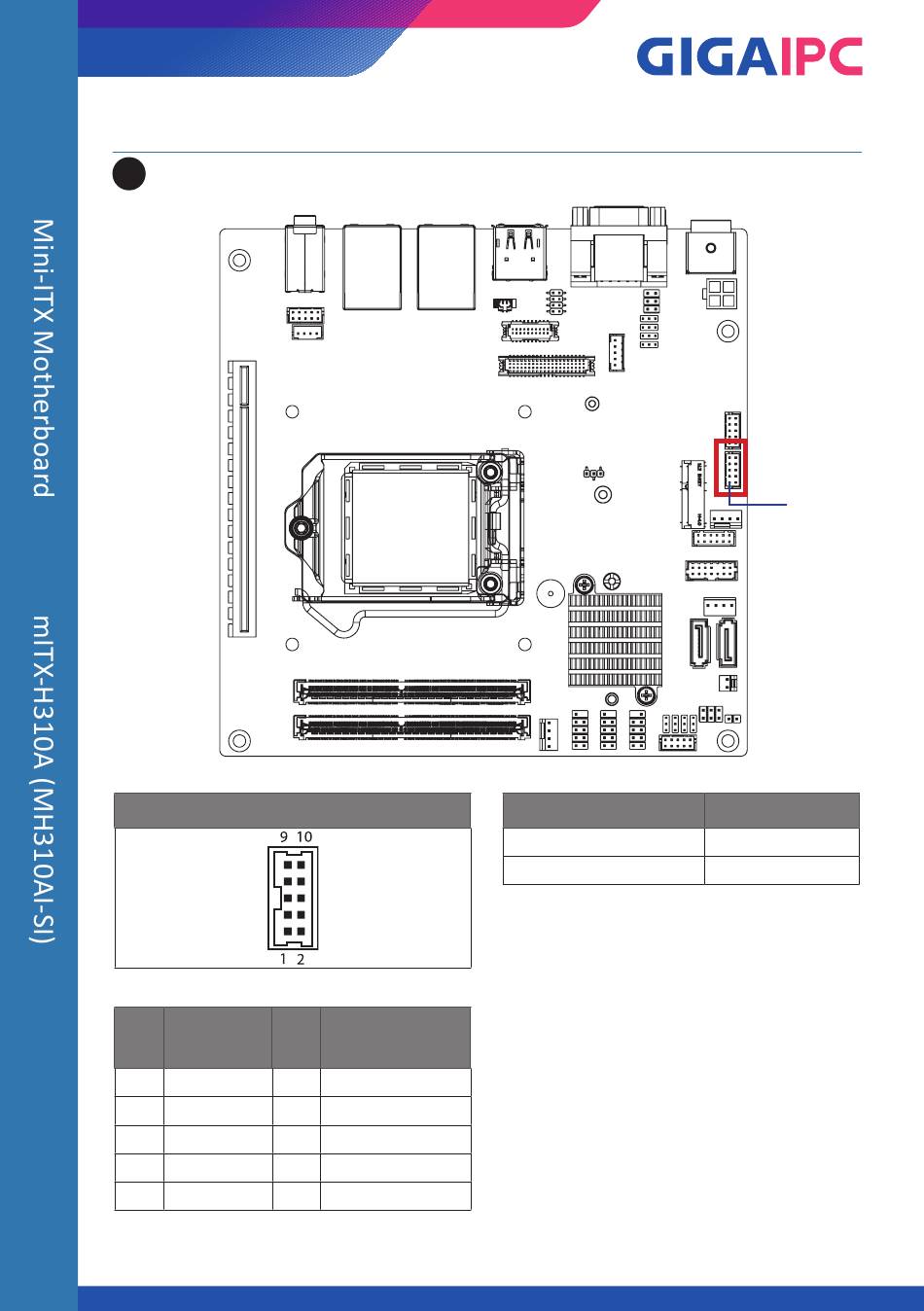

2.2.12 COM3 (Serial Port header (RS-232))

14
Serial Port Cable Connector
Pin
Definition Pin
No.
1
RXD
2
DCD
3
DTR
4
TXD
5
DSR
33
www.gigaipc.com
Definition
No.
6
GND
7
CTS
8
RTS
9
No Connect
10
RI/ 5V/ 12V
Connector PN
725-81-10TW00
A2004WV-2X05P46
Pin 1
Vendor
PINREX
JOINT-TECH
