Page 1: Thin Mini-Itx Motherboard
(MDH11LI) Thin Mini-ITX Motherboard User’s Manual 1st Ed www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
Before setting up your product, please make sure the following items have been shipped: Item Quantity mITX-H110A MB SATA power cable I/O Bracket If any of these items are missing or damaged, please contact your distributor or sales representative immediately. -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: China Rohs Requirements (Cn)
China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 GIGAIPC Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 及其电 ○ ○ ○ ○ ○ ○ 子组件 外部信号 连接器 ○ ○ ○ ○... -
Page 10: China Rohs Requirement (En)
China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products GIGAIPC Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Component Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &... -
Page 11: Table Of Contents
2.2.6 CPU_FAN (CPU fan connector) ........26 2.2.7 DC_IN (DC In JACK Connector) ........27 2.2.8 DC_IN2 (ATX 2x2 pin power connector) ....... 28 2.2.9 EDP (Embedded Display Port Connector) ..... 29 2.2.10 F_Audio (Front audio header) ........30 www.gigaipc.com... - Page 12 2.2.25 SPK_OUT (Speaker out Connector) ......45 2.2.26 SYS_FAN (System Fan Connector) ........ 46 2.2.27 SYS_PANEL (Front Panel Header) ........ 47 2.2.28 TPM_LPC (Trusted Platform Module Connector) ..48 2.2.29 M2_M (M.2 Slot, M-Key, SATA 6Gb/s & PCIe, Supports NGFF-2280/2242 Card) ..........49 www.gigaipc.com...
-
Page 13: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 – Product Specifications www.gigaipc.com... - Page 14 www.gigaipc.com...
-
Page 15: Specifications

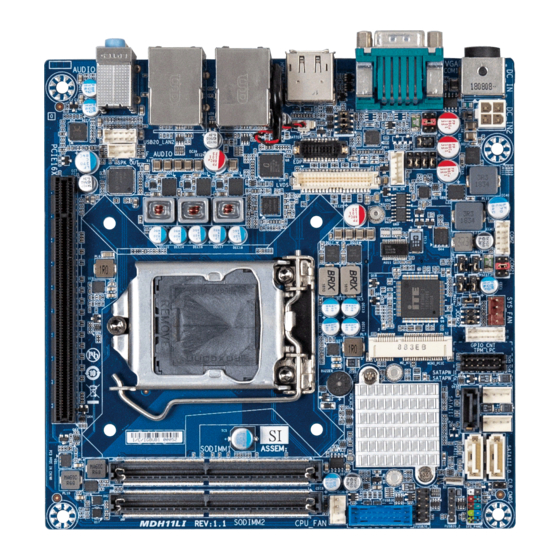

Specifications Motherboard mITX-H110A Mini-ITX Form Factor 170W x 170D(mm) Support for 7/6th Generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package TDP under 65W L3 cache varies with CPU Socket 1 x LGA 1151 Chipset Intel® H110 Chipset 2 x DDR4 SO-DIMM sockets, Max. - Page 16 Motherboard mITX-H110A 3 x Audio jacks (Line in, Line out, Mic in) 1 x COM Port (RS232/422/485 and RI/5V/12V) 1 x HDMI 1 x Display Port Rear I/O 1 x D-Sub 2 x RJ45 2 x USB3.0 2 x USB2.0...
-
Page 17: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com... -
Page 18: Jumpers And Connectors
Jumpers and Connectors www.gigaipc.com... - Page 19 Default COM2 is RI pin, can select RI/5V/12V JCOM22 COM2 RS-232/RS-422/RS-485 Select JRS21 RS21 select jumper for serial port for COM2 JRS24 RS24 select jumper for serial port for COM2 JRS11-14 RS11-14 select jumper for serial port for COM1 www.gigaipc.com...
- Page 20 Front panel header TPM_LPC TPM connector USB20_LAN2 USB 2.0 ports + GbE LAN port USB30_LAN1 USB 3.0 ports + GbE LAN port VGA (Bottom) VGA port COM1 (TOP) Serial port M.2 Slot, M-Key, SATA 6Gb/s & PCIe, Supports M2_M NGFF-2280 Card www.gigaipc.com...
-
Page 21: At_Cn (At/Atx Power Mode Select Jumper)
AT_CN (AT/ATX power mode select jumper) Pin 1 AT/ATX power mode select jumper Connector PN Vendor PH03N33BAAA00 HORNGTONG Pin No. Definition AT MODE Detect ATX MODE Jumper setting 1-2 Close : AT mode. 2-3 Close : ATX mode.(Default setting) www.gigaipc.com... -
Page 22: Battery
2.2.2 Battery Pin 1 Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V www.gigaipc.com... -
Page 23: Bkl_Cn (Backlight Control Connector)
2.2.3 BKL_CN (Backlight control connector) Pin 1 Backlight control connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition Back Light Enable www.gigaipc.com... -
Page 24: Clr_Cmos (Clear Cmos Jumper)
2.2.4 CLR_CMOS (Clear CMOS jumper) Pin 1 Clear CMOS Jumper Connector PN Vendor 210-91-02GB01 PINREX PH02R23BAZ000 HORNGTONG Pin No. Definition Clear CMOS Open: Normal Operation (Default setting) Close: Clear COMS data. www.gigaipc.com... -
Page 25: Com2 (Serial Port Header)
2.2.5 COM2 (Serial Port header) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition No Connect RI/ 5V/ 12V www.gigaipc.com... -
Page 26: Cpu_Fan (Cpu Fan Connector)
2.2.6 CPU_FAN (CPU fan connector) Pin 1 CPU FAN Connector Connector PN Vendor 744-81-045W11 PINREX WF04R22WJQ195 HORNGTONG Pin No. Definition Detect Speed Control www.gigaipc.com... -
Page 27: Dc_In (Dc In Jack Connector)
2.2.7 DC_IN (DC In JACK Connector) DC JACK Connector Connector PN Vendor 2MJ-3422A1I0 SINGATRON Note: *Connect only to a properly wired and ground outlet. www.gigaipc.com... -
Page 28: Dc_In2 (Atx 2X2 Pin Power Connector)
2.2.8 DC_IN2 (ATX 2x2 pin power connector) Pin 1 Power Connector Connector PN Vendor 740-81-04TW56 PINREX 25104A0400B3-93LF ATRC Note: *Connect only to a properly wired and ground outlet. Pin No. Definition +12V +12V www.gigaipc.com... -
Page 29: Edp (Embedded Display Port Connector)
2.2.9 EDP (Embedded Display Port Connector) Pin 1 Note: * Please ensure pin 8 is Embedded Display Port connector connected to Ground. Connector PN Vendor Definition Pin Definition A1252WV-SF- JOINT-TECH 2X10PN6BG1G00L 50286-02071-001 ACES AUX- AUX+ SW * 3.3V www.gigaipc.com... -
Page 30: F_Audio (Front Audio Header)
2.2.10 F_Audio (Front audio header) Pin 1 Front Audio Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition MIC_L MIC_R No Connect Detect HPOUT_L HPOUT_R www.gigaipc.com... -
Page 31: F_Usb 30 (Usb 3.0 Header)
2.2.11 F_USB 30 (USB 3.0 header) Pin 1 USB 3.0 Header Pin No. Definition P2_TX+ P2_TX- Pin No. Definition P2_RX+ Power P2_RX- P1_RX- Power P1_RX+ No Pin P1_TX- Connector PN Vendor P1_TX+ 52X-80-20GU65 PINREX WUIR-19A9N4BU3W WINWIN P1_D- P1_D+ P2_D+ P2_D- www.gigaipc.com... -
Page 32: F_Usb 20_1 (Usb 2.0 Header)
2.2.12 F_USB 20_1 (USB 2.0 header) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com... -
Page 33: F_Usb 20_2 (Usb 2.0 Header)
2.2.13 F_USB 20_2 (USB 2.0 header) Pin 1 USB 2.0 Header Connector PN Vendor 210-91-05GB02 PINREX PH05R23BAZ005 HORNGTONG Pin No. Definition www.gigaipc.com... -
Page 34: Gpio_Cnt
2.2.14 GPIO_CNT (General Purpose input/output header) Pin 1 GPIO Connector Pin No. Definition SMB_CLK SMB_DATA Connector PN Vendor Pin No. Definition 725-81-12TW00 PINREX GPO1 GPI1 A2004WV-2X06P46 JOINT-TECH GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 www.gigaipc.com... - Page 35 2.2.15 JCOM11 (Default COM1 is RI pin, can select RI/5V/12V) Pin 1 JCOM11 Jumper Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM)(Default) 5-6 Close: 12V (Power COM) www.gigaipc.com...
- Page 36 2.2.16 JCOM21 (Default COM2 is RI pin, can select RI/5V/12V) Pin 1 JCOM21 Jumper Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM)(Default) 5-6 Close: 12V (Power COM) www.gigaipc.com...
-
Page 37: Jcom12 (Com1 Rs-232/Rs-422/Rs-485 Select)
2.2.17 JCOM12 (COM1 RS-232/RS-422/RS-485 Select) Pin 1 JCOM12 Jumper Pin No. Definition RX232 1-2 Close: RS-232 (Default) RX422 3-4 Close: RX485 RS-422 5-6 Close: RS-485 Connector PN Vendor 220-97-03GB01 PINREX PH06N53BAZ000 HORNGTONG www.gigaipc.com... -
Page 38: Jcom22 (Com2 Rs-232/Rs-422/Rs-485 Select)
2.2.18 JCOM22 (COM2 RS-232/RS-422/RS-485 Select) Pin 1 JCOM22 Jumper Pin No. Definition RX232 1-2 Close: RS-232 (Default) RX422 3-4 Close: RX485 RS-422 5-6 Close: RS-485 Connector PN Vendor 222-97-03GBE1 PINREX www.gigaipc.com... -
Page 39: Jrs21-24 (Com2 Jrs21-24 Select Jumper For Serial Port)
RS-485 Half Duplex 1T/1R RS-485, TX ENABLE Low Active RS-485 Half Duplex 1T/1R RS-485, TX ENABLE High Active RS-422 Full Duplex 1T/1R RS-422 with termination resistor and bias resistor. 1T/1R RS-485 with termination resistor and bias resistor. RS-485 Half Duplex TX ENABLE Low Active www.gigaipc.com... -
Page 40: Jrs 11-14 (Com1 Jrs11-14 Select Jumper For Serial Port)
RS-485 Half Duplex 1T/1R RS-485, TX ENABLE Low Active RS-485 Half Duplex 1T/1R RS-485, TX ENABLE High Active RS-422 Full Duplex 1T/1R RS-422 with termination resistor and bias resistor. 1T/1R RS-485 with termination resistor and bias resistor. RS-485 Half Duplex TX ENABLE Low Active www.gigaipc.com... -
Page 41: Lsw (Lvds Resolution Jumper)
1024 x 600 1600 x 900 18bit 24bit 1280 x 800 1680 x 1050 18bit 24bit 1280 x 960 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit 1366 x 768 1920 x 1200 18bit 24bit www.gigaipc.com... -
Page 42: Lvds (Lvds Connector)
Definition Pin No. Definition 3.3V 3.3V Connector PN Vendor 712-76-40GWE0 PINREX SPEC0 SPED0 A1252WV-SF-2X20PD01 JOINT-TECH Note: *The LVDS output connector of the unit is only intended to be connected to an UL/IEC/EN approval equipment with fire enclosure. CLK2+ CLK1+ www.gigaipc.com... - Page 43 2.2.23 SATAIII_0, SATAIII_1, SATAIII_2 (SATA 6GB/S Connector) SATA Connector SATAIII_1,SATAIII_0 Connector PN Vendor WATM-07ABNB2BAUW3 WINWIN 770-83-07SW19 PINREX SATAIII_2 Connector PN Vendor ASAT0014-P008C LOTES Definition Pin Definition www.gigaipc.com...
-
Page 44: Satapw_1, Satapw_2 (Sata 6Gb/S Power Connector)
2.2.24 SATAPW_1, SATAPW_2 (SATA 6GB/S Power Connector) 34 35 Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition www.gigaipc.com... -
Page 45: Spk_Out (Speaker Out Connector)
2.2.25 SPK_OUT (Speaker out Connector) Pin 1 Audio Amplifie Connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com... -
Page 46: Sys_Fan (System Fan Connector)
2.2.26 SYS_FAN (System Fan Connector) Pin 1 System FAN Connector PN Vendor 744-81-045R11 PINREX WF04R22RJQ105 HORNGTONG Pin No. Definition Detect Speed Control www.gigaipc.com... -
Page 47: Sys_Panel (Front Panel Header)
2.2.27 SYS_PANEL (Front Panel Header) Pin 1 System Panel Header Connector PN Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com... -
Page 48: Tpm_Lpc (Trusted Platform Module Connector)
2.2.28 TPM_LPC (Trusted Platform Module Connector) Pin 1 TPM Module Connector Pin No. Definition TPM_DET LAD2 LAD3 Pin No. Definition LFRAME LPCCLK 3VDUAL PFM RST VCC3 Connector PN Vendor LAD0 52M-90-14GBE7 PINREX IRQ_SERIAL LAD1 www.gigaipc.com... -
Page 49: M2_M (M.2 Slot, M-Key, Sata 6Gb/S & Pcie, Supports Ngff-2280/2242 Card)
