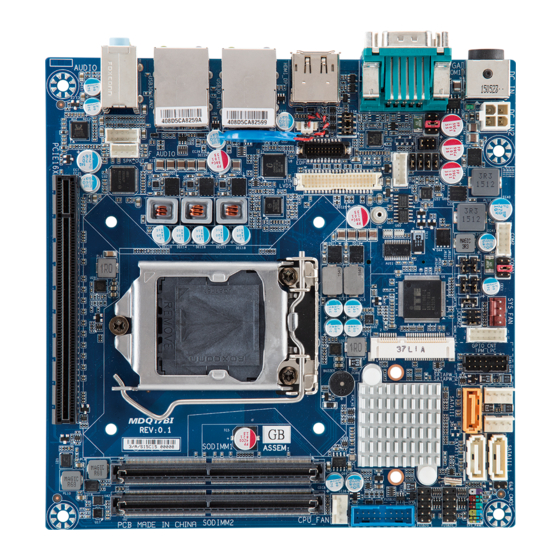

Page 1: Mini-Itx Motherboard
(MDQ17BI) Mini-ITX Motherboard User’s Manual 1st Ed www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
Before setting up your product, please make sure the following items have been shipped: Item Quantity mITX-Q170A MB SATA power cable I/O Bracket If any of these items are missing or damaged, please contact your distributor or sales representative immediately. -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: China Rohs Requirements (Cn)
China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 GIGAIPC Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 及其电 ○ ○ ○ ○ ○ ○ 子组件 外部信号 连接器 ○ ○ ○ ○... -
Page 10: China Rohs Requirement (En)
China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products GIGAIPC Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Component Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &... -
Page 11: Table Of Contents
Safety Precautions ............... 6 FCC Statement ................8 China RoHS Requirements (CN) ............ 9 China RoHS Requirement (EN) ........... 10 Chapter 1 - Product Specifications mITX-Q170A Specifications ............... 15 Chapter 2 – Hardware Information Jumpers and Connectors ..........18 2.2.1 AT_CN (AT/ATX power mode select jumper) .... - Page 12 ..................42 2.2.23 SATAPW_1, SATAPW_2 (SATA 6GB/S Power Connector) ..................43 2.2.24 SPK_OUT (Speaker out Connector) ......44 2.2.25 SYS_FAN (System Fan Connector) ........ 45 2.2.26 SYS_PANEL (Front Panel Header) ........ 46 2.2.27 TPM_LPC (Trusted Platform Module Connector) ..47 www.gigaipc.com...
-
Page 13: Chapter 1 - Product Specifications Mitx-Q170A
Chapter 1 Chapter 1 - Chapter 1 - Product Specifications mITX-Q170A www.gigaipc.com... - Page 14 www.gigaipc.com...
-
Page 15: Specifications
Specifications Motherboard mITX-Q170A Mini-ITX Form Factor 170W x 170D (mm) Support for 6/7th Generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium®processors/Intel® Celeron® processors in the LGA1151 package TDP under 65W L3 cache varies with CPU... - Page 16 Motherboard mITX-Q170A 1 x 4-pin ATX main power connector 3 x SATA 6Gb/s connectors 2 x SATA power connectors 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 4 x USB 2.0/1.1 headers...
-
Page 17: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com... -
Page 18: Jumpers And Connectors
Jumpers and Connectors 44 45 Code Description AT_CN AT/ATX power mode select jumper AUDIO Audio Line Out port BATTERY Battery cable connector BKL_CN Back light brightness control connector CLR_CMOS Clear CMOS jumper COM2 Serial port header www.gigaipc.com... - Page 19 RS21 select jumper for serial port JRS24 RS24 select jumper for serial port JRS11-14 RS11-14 select jumper for serial port JRS22 RS22 select jumper for serial port JRS23 RS23 select jumper for serial port LVDS resolution jumper LVDS LVDS connector MINI_PCIE MINI PCIE connector www.gigaipc.com...
- Page 20 DDR4 SO-DIMM slot#2 SPK_OUT Speaker out connector SYS_FAN System fan connector SYS_PANEL Front panel header TPM_LPC TPM connector USB30_LAN2 USB 3.0 ports + GbE LAN port USB30_LAN1 USB 3.0 ports + GbE LAN port VGA(Bottom) VGA port COM1 (TOP) Serial port www.gigaipc.com...
-
Page 21: At_Cn (At/Atx Power Mode Select Jumper)
AT_CN (AT/ATX power mode select jumper) Pin 1 AT/ATX power mode select jumper Connector PN Vendor PH03N33BAAA00 HORNGTONG Pin No. Definition AT MODE Detect ATX MODE Jumper setting 1-2 Close : AT mode. 2-3 Close : ATX mode.(Default setting) www.gigaipc.com... -
Page 22: Battery
2.2.2 Battery Pin 1 Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V www.gigaipc.com... -
Page 23: Bkl_Cn (Back Light Brightness Control Connector)
2.2.3 BKL_CN (Back light brightness control connector) Pin 1 Back light brightness control Connector PN Vendor connector 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition Back Light Enable www.gigaipc.com... -
Page 24: Clr_Cmos
2.2.4 CLR_CMOS Pin 1 Clear COMS Jumper Connector PN Vendor 210-91-02GB01 PINREX PH02R23BAZ000 HORNGTONG Pin No. Definition Clear CMOS Open: Normal Operation (Default setting) Close: Clear COMS data. www.gigaipc.com... -
Page 25: Com2 (Serial Port Header)
2.2.5 COM2 (Serial Port header) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition No Connect RI/ 5V/ 12V www.gigaipc.com... -
Page 26: Cpu_Fan (Cpu Fan Connector)
2.2.6 CPU_FAN (CPU fan connector) Pin 1 CPU FAN Connector PN Vendor 744-81-045W11 PINREX WF04R22WJQ195 HORNGTONG Pin No. Definition Detect Speed Control www.gigaipc.com... -
Page 27: Dc_In (Dc In Jack Connector)
2.2.7 DC_IN (DC In JACK Connector) DC JACK Connector Connector PN Vendor 2MJ-3422A1I0 SINGATRON www.gigaipc.com... -
Page 28: Dc_In2 (Atx 2X2 Pin Power Connector)
2.2.6 DC_IN2 (ATX 2x2 pin power connector) Pin 1 Power Connector Connector PN Vendor 740-81-04TW56 PINREX 25104A0400B3-93LF ATRC Pin No. Definition +12V +12V www.gigaipc.com... -
Page 29: Edp (Embedded Display Port Connector)
Pin 1 Note: * Please ensure pin 8 is Embedded Display Port connector connected to Ground. Connector PN Vendor Definition Pin Definition A1252WV-SF- JOINT-TECH 2X10PN6BG1G00L eDP_1+ 50286-02071-001 ACES eDPAUX- eDP_0- eDP_3- eDPAUX+ eDP_0+ eDP_2- eDP_3+ eDP_2+ eDPSW * eDP_1- 3.3V www.gigaipc.com... -
Page 30: F_Audio (Front Audio Header)
2.2.6 F_Audio (Front audio header) Pin 1 Front Audio Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition MIC_L FAUDIO_JD MIC_R No Connect Detect HPOUT_L HPOUT_R www.gigaipc.com... -
Page 31: F_Usb 30 (Usb 3.0 Header)
2.2.11 F_USB 30 (USB 3.0 header) Pin 1 USB 3.0 Header Pin No. Definition P2_TX+ P2_TX- Pin No. Definition P2_RX+ Power P2_RX- P1_RX- Power P1_RX+ No Pin P1_TX- Connector PN Vendor P1_TX+ 52X-80-20GU65 PINREX WUIR-19A9N4BU3W WINWIN P1_D- P1_D+ P2_D+ P2_D- www.gigaipc.com... -
Page 32: F_Usb 20_1 (Usb 2.0 Header)
2.2.12 F_USB 20_1 (USB 2.0 header) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com... -
Page 33: F_Usb 20_2 (Usb 2.0 Header)
2.2.13 F_USB 20_2 (USB 2.0 header) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com... -
Page 34: 2.2.14 Gpio_Cnt
2.2.14 GPIO_CNT Pin 1 GPIO Connector Connector PN Vendor 725-81-12TW00 PINREX A2004WV-2X06P46 JOINT-TECH Pin No. Definition GPO1 GPI1 GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 SMB_CLK SMB_DATA www.gigaipc.com... -
Page 35: Jcom11, Jcom21 (Com11 & Com21 Ri# Pin Ri#/5V/12V Select)
2.2.15 JCOM11, JCOM21 (COM11 & COM21 RI# pin RI#/5V/12V Select) 18 20 Pin 1 Pin 1 JCOM11, JCONM21 Jummper Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM, Default-setting) 5-6 Close: 12V (Power COM) www.gigaipc.com... -
Page 36: Jcom12 (Com1 Rs-232/Rs-422/Rs-485 Select)
2.2.16 JCOM12 (COM1 RS-232/RS-422/RS-485 Select) Pin 1 JCOM12 Jummper Connector PN Vendor 1-2 Close: 220-97-03GB01 PINREX RS-232 (Default-setting) PH06N53BAZ000 HORNGTONG 3-4 Close: RS-422 5-6 Close: RS-485 Pin No. Definition RX232 RX422 RX485 www.gigaipc.com... -
Page 37: Jcom22 (Com2 Rs-232/Rs-422/Rs-485 Select)
2.2.17 JCOM22 (COM2 RS-232/RS-422/RS-485 Select) Pin 1 JCOM22 Jummper Pin No. Definition RX232 1-2 Close: RS-232 (Default-setting) RX422 3-4 Close: RX485 RS-422 5-6 Close: RS-485 Connector PN Vendor 222-97-03GBE1 PINREX www.gigaipc.com... -
Page 38: Jrs21, Jrs22, Jrs23, Jrs24
2.2.18 JRS21, JRS22, JRS23, JRS24 (RS21, RS22, RS23, RS24 select jumper for serial port) 22 23 25 26 Pin 1 JRS21, JRS22, JRS23, JRS24 Connector PN Vendor PH03N33BAAA00 HORNGTONG 1-2 Close: RS-422/RS-485 2-3 Close: RS-232 (Dafult-setting) www.gigaipc.com... -
Page 39: Jrs 11-14 (Rs11-14 Select Jumper For Serial Port)
2.2.19 JRS 11-14 (RS11-14 select jumper for serial port) Pin 1 JRS 11-14 Jummper Connector PN Vendor 220-96-03GB01 PINREX PH03N2-7BAN000 HORNGTONG 1-2 Close: RS-422/RS-485 2-3 Close: RS-232 (Dafult-setting) www.gigaipc.com... -
Page 40: Lsw (Lvds Resolution Jumper)
1024 x 600 1600 x 900 18bit 24bit 1280 x 800 1680 x 1050 18bit 24bit 1280 x 960 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit 1366 x 768 1920 x 1200 18bit 24bit www.gigaipc.com... -
Page 41: Lvds (Lvds Connector)
2.2.21 LVDS (LVDS connector) Pin 1 LVDS Connector Pin No. Definition Pin No. Definition CLK2+ CLK1+ CLK2- Pin No. Definition Pin No. Definition CLK1- 3.3V 3.3V SPEC0 SPED0 Connector PN Vendor 712-76-40GWE0 PINREX A1252WV-SF-2X20PD01 JOINT-TECH www.gigaipc.com... - Page 42 2.2.22 SATAIII_0, SATAIII_1, SATAIII_2 (SATA 6GB/S Connector) SATA Connector SATAIII_1,SATAIII_0 Connector PN Vendor WATM-07ABNB2BAUW3 WINWIN 770-83-07SW19 PINREX SATAIII_2 Connector PN Vendor ASAT0014-P008C LOTES Definition Pin Definition www.gigaipc.com...
-
Page 43: Satapw_1, Satapw_2 (Sata 6Gb/S Power Connector)
2.2.23 SATAPW_1, SATAPW_2 (SATA 6GB/S Power Connector) 34 35 Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition www.gigaipc.com... -
Page 44: Spk_Out (Speaker Out Connector)
2.2.24 SPK_OUT (Speaker out Connector) Pin 1 Audio Amplifie Connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com... -
Page 45: Sys_Fan (System Fan Connector)
2.2.25 SYS_FAN (System Fan Connector) Pin 1 System FAN Connector PN Vendor 744-81-045R11 PINREX WF04R22RJQ105 HORNGTONG Pin No. Definition Detect Speed Control www.gigaipc.com... -
Page 46: Sys_Panel (Front Panel Header)
2.2.26 SYS_PANEL (Front Panel Header) Pin 1 System Panel Header Connector PN Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com... -
Page 47: Tpm_Lpc (Trusted Platform Module Connector)
2.2.27 TPM_LPC (Trusted Platform Module Connector) Pin 1 TPM Module Connector Pin No. Definition TPM_DET LAD2 LAD3 Pin No. Definition LFRAME LPCCLK 3VDUAL PFM RST VCC3 Connector PN Vendor LAD0 52M-90-14GBE7 PINREX IRQ_SERIAL LAD1 www.gigaipc.com...
