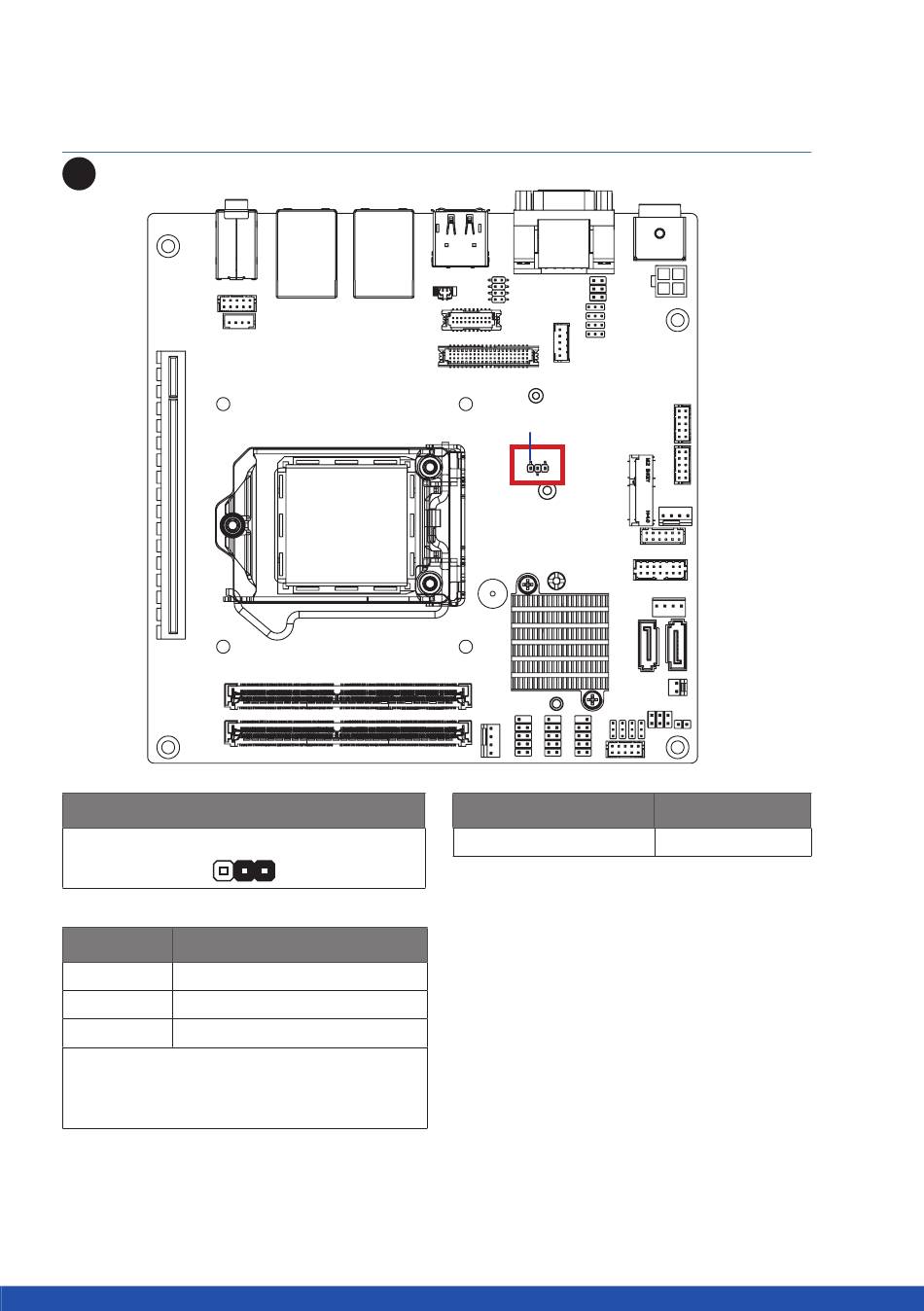

2.2.29 AT_CN (AT/ATX mode select jumper)
33
AT/ATX mode select jumper
1
Pin No.
1
2
3
Jumper setting
1-2 Close : AT mode.
2-3 Close : ATX mode. (Default setting)
3
Definition
AT MODE
Detect
ATX MODE
Pin 1
Connector PN
222-96-03GBE1
www.gigaipc.com
Vendor
PINREX
50
