2.2.4

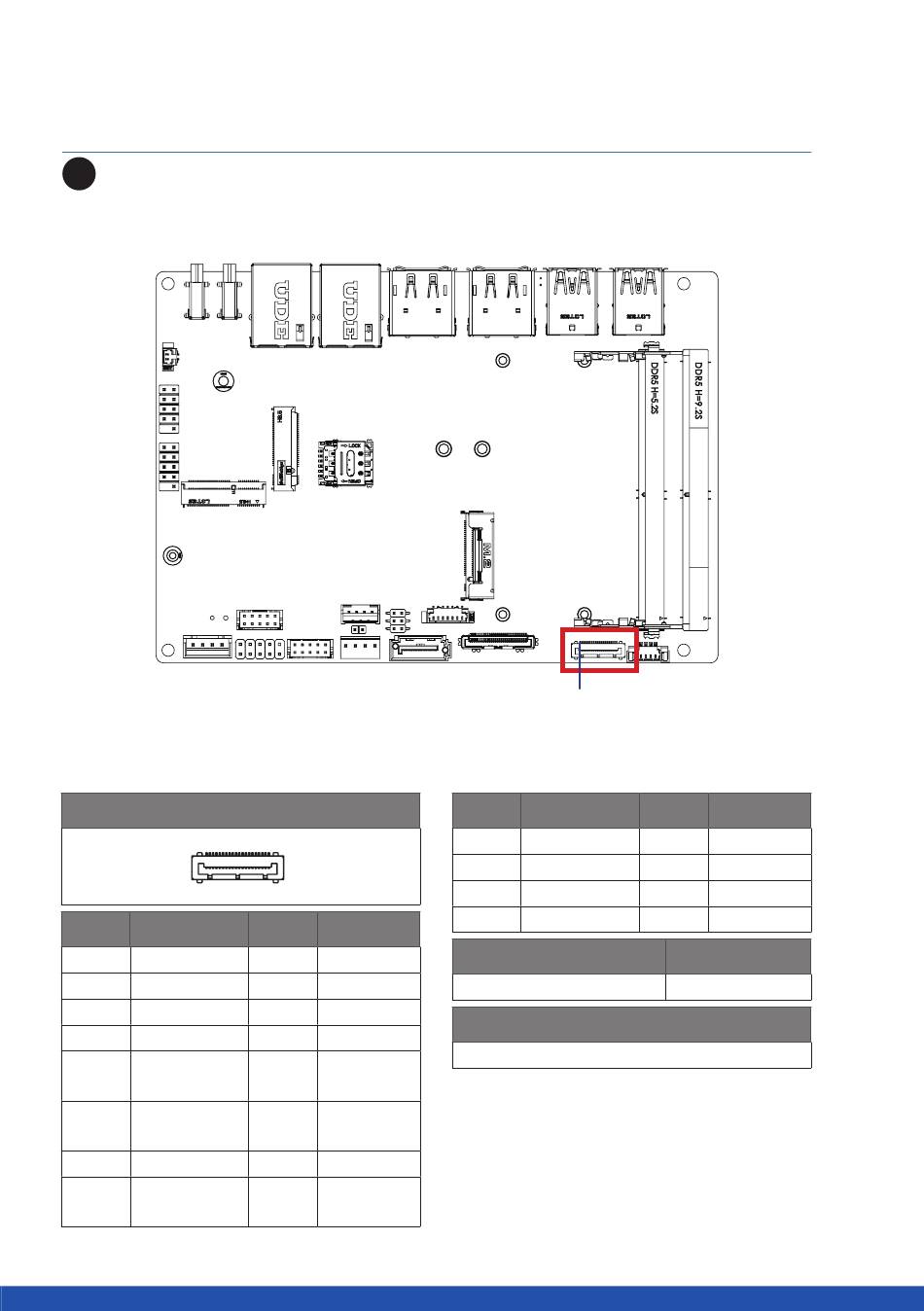

EDP (Embedded Display Port Connector)

4
Embedded Display Port Connector
1
H3
H4
Pin No. Definition
1 GND
2 EDP_TX0-
3 EDP_TX0+
4 GND
5 EDP_TX1-
6 EDP_TX1+
7 GND
8 EDP_TX2-
20
H1
H2
Pin No. Definition
13 GND
14 EDP_AUX-
15 EDP_AUX+
16 NC
Hotplug
17
Detect
Backlight
18
Enable
19 GND
Backlight
20
cotrol
Pin 1
Pin No. Definition
9 EDP_TX2+
10 GND
11 EDP_TX3-
12 EDP_TX3+
Connector PN
115B20-100020-G4-R
Connector type
1x20pin header, pitch 0.5mm
Pin No. Definition
21 H1
22 H2
23 H3
24 H4
Vendor
STARCONN
www.gigaipc.com
