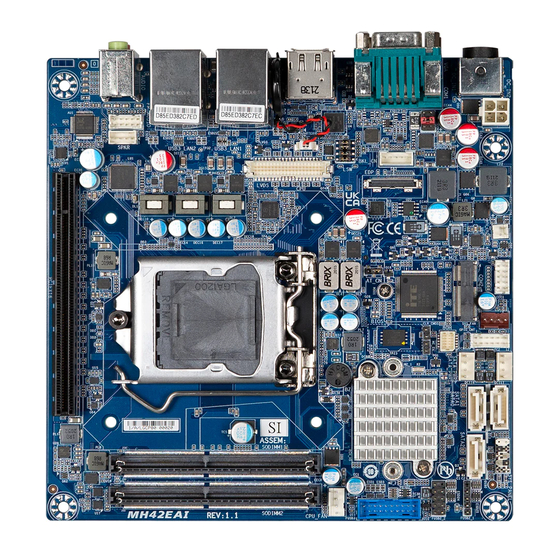

Page 1: Mitx-H42Ea Mini-Itx Motherboard
(MH42EAI-SI) mITX-H42EA Mini-ITX Motherboard User’s Manual 1st Ed www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
Before setting up your product, please make sure the following items have been shipped: Item Quantity mITX-H42EA MB SATA power cable I/O Bracket If any of these items are missing or damaged, please contact your distributor or sales representative immediately. -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: China Rohs Requirements (Cn)
China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 GIGAIPC Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 及其电 ○ ○ ○ ○ ○ ○ 子组件 外部信号 连接器 ○ ○ ○ ○... -
Page 10: China Rohs Requirement (En)
China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products GIGAIPC Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Component Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &... -
Page 11: Table Of Contents
Table Contents mITX-H42EA Mini-ITX Motherboard User’s Manual 1st Ed Copyright Notice ................2 Acknowledgement ............... 3 Packing List ................... 4 About this Document ..............5 Safety Precautions ............... 6 FCC Statement ................8 China RoHS Requirements (CN) ............ 9 China RoHS Requirement (EN) ........... 10 Chapter 1 - Product Specifications Specifications ............... - Page 12 2.2.24 FUSB2_2 (USB 2.0 header) ..........50 2.2.25 FUSB3 (USB 3.2 Gen 1 header) ........51 2.2.26 CPU_FAN (CPU FAN Connector) ........52 2.2.27 JCOM1 (RI pin RI/5V/12V select jumper for COM1 port) ..................53 2.2.28 SODIMM1, SODIMM2 (2 x DDR4 SO-DIMM Sockets) ... 54 www.gigaipc.com...
- Page 13 3.3.8 Network Stack Configuration ........69 3.3.9 NVMe Configuration ............. 70 3.3.10 Offboard SATA Controller Configuration ...... 71 3.3.11 Digital IO Port Configuration ........72 Chipset ................73 Security ................. 75 Boot ................78 Save & Exit ..............79 www.gigaipc.com...
-
Page 14: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 15 170.0 31.6 33.02 132.08 0.00 11.68 41.29 73.32 96.96 120.85 142.55 170.00 31.0 10.16 154.94 94.5 www.gigaipc.com...
-
Page 16: Specifications
Specifications Motherboard mITX-H42EA (MH42EAI-SI) Mini-ITX Form Factor 170W x 170D (mm) Support for 10th Generation Intel® Core™ i9/ i7/ i5/ i3, Pentium® & Celeron® processors in the LGA1200 package TDP under 65W L3 cache varies with CPU Socket 1 x LGA 1200 Chipset Intel®... - Page 17 Motherboard mITX-H42EA (MH42EAI-SI) 1 x 4-pin ATX main power connector 2 x SATA power connectors 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 3 x USB 2.0 headers...
-
Page 18: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com... -
Page 19: Jumpers And Connectors
Jumpers and Connectors www.gigaipc.com... - Page 20 3 VGA VGA Port COM1 Port (RS-232/422/485 & RI/5V/12V) 4 COM1 HDMI Connector HDMI_DP Display Port Connector 7 USB3_LAN1 USB 3.2 Gen 1 Connector x 4 USB3_LAN2 LAN Connector x 2 Mic In port (Pink) AUDIO Line Out port (Green) www.gigaipc.com...
- Page 21 SATA_PWR1 SATA Power Connector x 2 SATA_PWR2 28 SATA0, 1, 2 SATA 6 Gb/s Connector x 3 29 SYS_PANEL System panel header 30 FUSB2_1 USB 2.0 header 31 FUSB2_2 USB 2.0 header 32 FUSB3 USB 3.2 Gen 1 header www.gigaipc.com...
- Page 22 Code Description 33 CPU_FAN CPU FAN Connector RI pin RI/5V/12V select jumper for COM1 34 JCOM1 port SODIMM1, 2 x DDR4 SO-DIMM Sockets SODIMM2 36 ME_EN ME Disable jumper 37 M2_M M.2 Slot, M-Key NGFF 2280 www.gigaipc.com...
-
Page 23: Io Connector Information
2 VGA D-sub Port COM1 Port (RS-232/422/485 & RI/5V/12V) 3 COM1 HDMI Connector HDMI_DP Display Port Connector 6 USB3_LAN1 USB 3.2 Gen 1 Connector x 4 USB3_LAN2 LAN Connector x 2 Mic In port (Pink) AUDIO Line Out port (Green) www.gigaipc.com... -
Page 24: Dc_In1 (Dc In Jack 4 Pin Din)
2.2.2 DC_IN1 (DC In Jack 4 Pin Din) DC In Jack 4 Pin Din Connector PN Vendor 2MJ-3422A1I0 SINGATRON www.gigaipc.com... -
Page 25: Dc_In2 (Atx 2X2 Pin Power Connector)
2.2.3 DC_IN2 (ATX 2x2 Pin Power Connector) Pin 1 Power Connector Connector PN Vendor 740-81-04TW56 PINREX Pin No. Definition DC IN DC IN www.gigaipc.com... -
Page 26: Vga (Vga Port)
2.2.4 VGA (D-sub Port) D-sub Connector Connector PN Vendor DZ11AA1-H5A7-4F FOXCONN D11015S021126N FENYING Pin No. Definition Pin No. Definition Green Blue DDCSDA HSYNC VSYNC DDCSCL www.gigaipc.com... -
Page 27: Com1 (Com1 Port (Rs-232/422/485 & Ri/5V/12V))
2.2.5 COM1 (COM1 Port (RS-232/422/485 & RI/5V/12V)) Serial Port Connector Connector PN Vendor DM10151-N5W3-4F FOXCONN RS-232 RS-422 RS-485 Full Duplex Half Duplex TXD- TXD+ RXD+ – RXD- – – – – – – – – – www.gigaipc.com... -
Page 28: Hdmi_Dp (Hdmi + Dp Connector)
HDMI Connector Pin No. Definition Pin No. Definition Pin No. Definition Pin No. Definition TX0p TX2p TX3n CLKn TX0n TX2n TX1p TX1p AUXp TX1n TX1n TX2p AUXn TX0p Hot Plug Detect Hot Plug TX0n TX2n 3.3V Detect TX3p 3.3V CLKp www.gigaipc.com... -
Page 29: Usb3_Lan1, Usb3_Lan2 (Usb+Lan Connector X 2)
Pin No. Definition Pin No. Definition Definition Definition TX1+ TX3+ TX1- TX3- TX2+ TX4+ TX2- TX4- State Description USB3_RX1n USB3_RX2n Orange On 1Gbps data rate USB3_RX1p USB3_RX2p Green On 100Mbps data rate USB3_TX1n USB3_TX2n 10Mbps data rate USB3_TX1p USB3_TX2p www.gigaipc.com... -
Page 30: Cpu (1 X Lga 1200 Socket)
2.2.4 CPU (1 x LGA 1200 Socket) www.gigaipc.com... -
Page 31: Bkl_Cn (Backlight Control Connector)
2.2.5 BKL_CN (Backlight Control Connector) Pin 1 Backlight Control Connector Connector PN Vendor 721-81-05TW00 PINREX A2001WV-05P146 JOINT-TECH Pin No. Definition Backlight enable www.gigaipc.com... -
Page 32: Edp (Embedded Display Port Connector)
Embedded Display Port connector Pin No. Definition Pin No. Definition 3.3V TX3n TX3p AUXn Pin No. Definition Pin No. Definition AUXp Hot Plug TX0n Connector PN Vendor Detect 115B30-000040-G4-R STARCONN Backlight TX0p Enable Backlight TX1n controll TX1p 3.3V TX2n 3.3V TX2p 3.3V www.gigaipc.com... -
Page 33: Lsw (Lvds Resolution Jumper)
1024 x 768 1400 x 1050 24bit 24bit 1024 x 600 1600 x 900 18bit 24bit 1280 x 800 1680 x 1050 18bit 24bit 1280 x 960 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit www.gigaipc.com... -
Page 34: Battery (Battery Connector)
2.2.8 Battery (Battery Connector) Pin 1 Battery Connector Pin No. Definition www.gigaipc.com... -
Page 35: Lvds (Lvds Connector)
But below model no need to add. SPED0 A0~A3 is odd channel 0~3, A4~A7 is ev en channel. Note: *The LVDS output connector of the unit is only intended to be CLK2+ connected to an UL/IEC/EN approval CLK1+ equipment with fire enclosure. CLK2- CLK1- www.gigaipc.com... -
Page 36: Fp_Audio (Front Panel Audio Header)
2.2.10 FP_Audio (Front Panel Audio header) Pin 1 Front panel audio Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition MIC-LEFT JACKSENCE DELTECT MIC-RIGHT DELTECT LINE-LEFT LINE-RIGHT www.gigaipc.com... -
Page 37: Spkr (Speaker Out Connector)
2.2.11 SPKR (Speaker Out Connector) Pin 1 Speaker Out Connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition SPEAKER L+ SPEAKER L- SPEAKER R- SPEAKER R+ www.gigaipc.com... -
Page 38: Pciex16 (1 X Pcie X16 (Gen3 X16) Slot)
2.2.12 PCIEX16 (1 x PCIe x16 (Gen3 x16) Slot) PCIEX16 connector www.gigaipc.com... -
Page 39: Atx_Ctl (Atx Control Header, Support Ps-On Signal Of Power Supply Unit)
2.2.13 ATX_CTL (ATX Control header, Support PS-ON Signal of Power Supply Unit) Pin 1 ATX Control Header Pin No. Definition PSON# www.gigaipc.com... -
Page 40: Com2 (Com Header (Rs-232))
2.2.14 COM2 (COM header (RS-232)) Pin 1 COM 2 header Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition www.gigaipc.com... -
Page 41: M2E (M.2 Slot, E-Key, Supports Ngff-2230)
PCIE CLOCKn SUSCLK PCIE Clock PCIRST Pin No. Definition Pin No. Definition Request 3.3V PCIE wake up BT_Disable 3.3V WLAN_DISABLE 3.3V 3.3V Connector PN Vendor Pin No. Definition Pin No. Definition 2E0BC21-S85BE-7H FOXCONN 80152-8521 BELLWETHER PCIE_TXp APCI0095-P002A LOTES PCIE_TXn CL_Reset www.gigaipc.com... -
Page 42: At_Cn (At/Atx Mode Select Jumper)
2.2.16 AT_CN (AT/ATX mode select jumper) Pin 1 AT/ATX mode select jumper Connector PN Vendor 222-96-03GBE1 PINREX Pin No. Definition AT MODE Detect ATX MODE Jumper setting 1-2 Close : AT mode. 2-3 Close : ATX mode.(Default setting) www.gigaipc.com... -
Page 43: Sys_Fan (System Fan Connector)
2.2.17 SYS_FAN (System Fan Connector) Pin 1 System FAN Connector PN Vendor 744-81-045R11 PINREX WF04R22RJQ105 HORNGTONG Pin No. Definition www.gigaipc.com... -
Page 44: Gpio_Cnt (General Purpose Input/Out Header)
2.2.18 GPIO_CNT (General purpose input/out header) Pin 1 GPIO Connector Pin No. Definition SMBus Clock SMBus DATA Pin No. Definition Connector PN Vendor GPIO-output_1 725-81-12TW00 PINREX GPIO-input_1 A2004WV-2X06P46 JOINT-TECH GPIO-output_2 GPIO-input_2 GPIO-output_3 GPIO-input_3 GPIO-output_4 GPIO-input_4 www.gigaipc.com... -
Page 45: Clr_Cmos (Clear Cmos Jumper)
2.2.19 CLR_CMOS (Clear CMOS jumper) Pin 1 Clear COMS jumper Pin No. Definition Clear CMOS Open: Normal Operation (Default setting) Close: Clear COMS data. www.gigaipc.com... -
Page 46: Sata_Pwr1, Sata_Pwr2 (Sata Power Connector X 2)
2.2.20 SATA_PWR1, SATA_PWR2 (SATA Power Connector x 2) Pin 1 SATA Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition www.gigaipc.com... -
Page 47: Sata0, 1, 2 (Sata 6 Gb/S Connector X 3)
2.2.21 SATA0, 1, 2 (SATA 6 Gb/s Connector x 3) SATA 0 SATA 1 SATA 2 SATA 6GB/S Connector Connector PN Vendor WATM- WINWIN 07ABNB2BAUW3 SATA0 SATA1 770-83-07SW19 PINREX SATA2 Pin No. Definition www.gigaipc.com... -
Page 48: Sys_Panel (System Panel Header)
2.2.22 SYS_PANEL (System Panel header) Pin 1 System Panel Header Connector PN Vendor 210-92-05GW5W PINREX Pin No. Definition HD-p MPD-p HD-n MPD-n POWER-ON Reset Reserved www.gigaipc.com... -
Page 49: Fusb2_1 (Usb 2.0 Header)
2.2.23 FUSB2_1 (USB 2.0 header) Pin 1 USB 2.0 Header Connector PN Vendor 210-91-05GB02 PINREX PH05R23BAZ005 HORNGTONG Pin No. Definition www.gigaipc.com... -
Page 50: Fusb2_2 (Usb 2.0 Header)
2.2.24 FUSB2_2 (USB 2.0 header) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin www.gigaipc.com... -
Page 51: Fusb3 (Usb 3.2 Gen 1 Header)
2.2.25 FUSB3 (USB 3.2 Gen 1 header) Pin 1 USB 3.2 Gen 1 header Pin No. Definition TX2p TX2n Pin No. Definition RX2p RX2n RX1n RX1p Connector PN Vendor TX1n 52X-80-20GU65 PINREX TX1p WUIR-19A9N4BU3W WINWIN www.gigaipc.com... -
Page 52: Cpu_Fan (Cpu Fan Connector)
2.2.26 CPU_FAN (CPU FAN Connector) Pin 1 CPU Fan Connector Connector PN Vendor 744-81-045W11 PINREX Pin No. Definition Detect Speed Control www.gigaipc.com... - Page 53 2.2.27 JCOM1 (RI pin RI/5V/12V select jumper for COM1 port) Pin 1 JCOM1 Jumper Select Connector PN Vendor 210-92-03GB01 PINREX 1-2 Close: PH06R53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM) 5-6 Close: 12V (Power COM) www.gigaipc.com...
-
Page 54: Sodimm1, Sodimm2 (2 X Ddr4 So-Dimm Sockets)
2.2.28 SODIMM1, SODIMM2 (2 x DDR4 SO-DIMM Sockets) www.gigaipc.com... -
Page 55: Me_En (Me Disable Jumper)
2.2.29 ME_EN (ME Disable jumper) Pin 1 ME Enable connector Connector PN Vendor 210-91-02GBK2 PINREX PH02R23BAZE11 HORNGTONG ME Enable Jumper Enable Disable www.gigaipc.com... -
Page 56: M2M (M.2 Slot, M-Key Ngff-2280)
PCIE3 TXp 3.3V Detect 3.3V 3.3V 3.3V PCIE2 RXn 3.3V 3.3V PCIE2 RXp PCIE2 TXn Connector PN Vendor PCIE2 TXp AS0BC21-S40BM-7H FOXCONN APCI0073-P001A LOTES PCIE1 RXn PCIE1 RXp PCIE1 TXn PCIE2 TXp DEVSLP SMB Clock PCIE0 RXn SMB DATA www.gigaipc.com... -
Page 57: Chapter 3 - Bios
Chapter 3 Chapter 3 – BIOS www.gigaipc.com... -
Page 58: Introduction
Execute command or enter the submenu Increase the numeric value or make ＋ changes Decrease the numeric value or make – changes General Help Previous Values Load Optimized Defaults Settings Save changes & Exit the BIOS Setup program Exit the BIOS Setup program www.gigaipc.com... -
Page 59: The Main Menu
ME FW version Shows ME firmware version Set the Date for the system System Date (Format : Weekday - Month - Day - Year) Set the time for the system System Time (Format : Hour - Minute - Second) www.gigaipc.com... -
Page 60: Advanced
Advanced The Advanced menu is to configure the functions of hardware settings through submenu. Use arrow keys to move among the items, and press <Enter> to access into the related submenu. www.gigaipc.com... -
Page 61: Tpm Configuration
3.3.1 TPM Configuration Use TPM Configuration submenu to choose TPM interface. Item Description PTT : Internal TPM (Default setting) TPM Device dTPM : External TPM (When using External TPM module or Selection having TPM chip on MB) www.gigaipc.com... - Page 62 Disabled : Disables TPM feature None : No execution will be conducted (Default setting) Pending operation TPM clear : Set to clear data on TPM Enabled : Enables Platform Hiearchy (PH) Randomization. (Default setting) PH Randomization Disabled : Disables Platform Hiearchy (PH) Randomization. www.gigaipc.com...
-
Page 63: It8786 Super Io Configuration
Serial Port 2 Enabled : Enables allows you to configure the serial port settings Configuration Disabled : if Disabled, displays no configuration for the serial port Device settings : Display the specified Serial Port base I/O address and IRQ www.gigaipc.com... -
Page 64: Hardware Monitor
Normal : Fan speed set by BIOS default (Default setting) Control Full Speed : Set Fan operates at full speed CPU Temperature Shows current CPU temperature System Shows current system temperature Temperature CPU Fan Speed Shows current CPU fan Speed SYS Fan Speed Shows current System fan Speed www.gigaipc.com... -
Page 65: S5 Rtc Wake Settings
Enable or Disable System to wake on a specific time. Wake system Disabled : Disables system to wake on a specific time (Default setting) from S5 Fixed Time : Enables system to wake on a specific time (Format : hr : min : sec) www.gigaipc.com... -
Page 66: Cpu Configuration
CPU P states Enabled : Enables CPU P states function Disabled : Disables CPU P states function (Default setting) To optimize CPU performance. Optimize Performance Enabled : Enables optimize performance function Disabled : Disables optimize performance function (Default setting) www.gigaipc.com... -
Page 67: Sata And Rst Configuration
3.3.6 SATA And RST Configuration Item Description SATA Mode Set SATA controller to AHCI mode Selection Serial ATA Port 0 Serial ATA Port 1 shows 2.5" SATA HDD/SSD information Serial ATA Port 2 www.gigaipc.com... -
Page 68: Ami Graphic Output Protocol Policy
3.3.7 AMI Graphic Output Protocol Policy Item Description Choose default monitor output when there are more than one monitor plugged Output Select on the motherboard. www.gigaipc.com... -
Page 69: Network Stack Configuration
When Network stack is enabled : Ipv4 PXE Support Disabled : Disables Ipv4 PXE Support Enabled : Enables Ipv4 PXE Support When Network stack is enabled : Ipv6 PXE Support Disabled : Disables Ipv6 PXE Support Enabled : Enables Ipv6 PXE Support www.gigaipc.com... -
Page 70: Nvme Configuration
3.3.9 NVMe Configuration NVMe Configuration shows information when your M.2 NVMe PCIe SSD is installed. www.gigaipc.com... -
Page 71: Offboard Sata Controller Configuration
3.3.10 Offboard SATA Controller Configuration www.gigaipc.com... -
Page 72: Digital Io Port Configuration
Enabled : If Digital IO Output value/level is modified in OS, they will be memorized and kept. SOGPO_1 (Pin 1) SOGPI_1 (Pin 2) SOGPO_2 (Pin 3) SOGPI_2 (Pin 4) Configure Digital IO Input or Output values for each pin. SOGPO_3 (Pin 5) SOGPI_3 (Pin 6) SOGPO_4 (Pin 7) SOGPI_4 (Pin 8) www.gigaipc.com... -
Page 73: Chipset
Enabled : Enables Above 4GB MMIO BIOS assignment function Disabled : Disables Above 4GB MMIO BIOS assignment function (Default setting) Enable/Disable onboard audio controller HD Audio Enabled : Enables onboard audio controller (Default setting) Disabled : Disables onboard audio controller www.gigaipc.com... - Page 74 Enable/Disable XHCI Hand-off function XHCI Hand-off Enabled : Enables XHCI Hand-off function (Default setting) Disabled : Disables XHCI Hand-off function Enable/Disable BIOS Lock function BIOS Lock Enabled : Enables BIOS Lock function (Default setting) Disabled : Disabled BIOS Lock funtion www.gigaipc.com...
-
Page 75: Security
To set up Administrator's password Administrator Minimum length : 3 Password Maximum length : 20 To set up User's password User Password Minimum length : 3 Maximum length : 20 Secure Boot Press <Enter> to configure the advanced items www.gigaipc.com... - Page 76 No : Cancel to restore factory settings Reset To Setup Yes : Agree to setup mode Mode No : Cancel to setup mode Enables expert users to modify Secure boot policy variables without full Key Management authentication Press <Enter> to configure the advanced items www.gigaipc.com...
- Page 77 'UEFI CA' from database from DB No : Cancel to remove 'UEFI CA' from database Restore DB variables to fac tor y Restore DB defaults defaults Yes : Agree to restore DB defaults No : Cancel to restore DB defaults www.gigaipc.com...
-
Page 78: Boot
Enabled : Enables Full screen LOGO Show on POST screen LOGO Show Disabled : Disables Full screen LOGO Show on POST screen (Default setting) Boot Option #1 Shows the information of the storage that be installed in the system Boot Option #2 Choose/set the boot priority www.gigaipc.com... -
Page 79: Save & Exit
Yes : Agree to load optimized defaults No : Cancel to load optimized defaults Enable/Disable Me FW image re-flash function Me FW Image Enabled : Enables Me FW image re-flash function Re-Flahs Disabled : Disables Me FW image re-flash function (Default setting) www.gigaipc.com...
